OPTICON

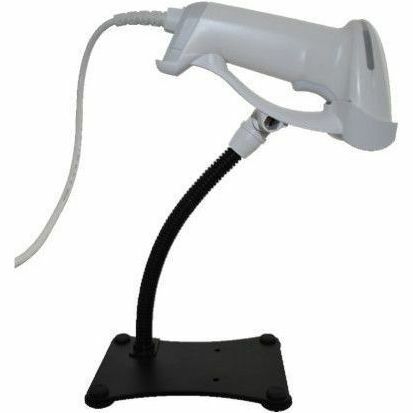

OPTICON L46XWU1-02 BARCODE SCANNERS,DISINFECTANT-READY 2D IMAGER - WHITE

Mfg Part Number:  L46XWU1-02
Image may not reflect the actual item.
Price: $177.72 + Free Shipping
Quantity:
More to Come
Last Updated: Aug 27, 2025
No Sales Tax except these states
, PO and Wire.

The Opticon L-46 handheld barcode scanner features next generation scanning technology along with the perfect combination of performance, durability and reliability. The L-46 series scanner is designed for a wide variety of applications and it far exceeds conventional laser and 2D Imager scanners delivering unprecedented scanning and decoding performance at an attractive price point.

With a blazing, fast 100 scans per second, the L-46R laser scanner model (1D barcodes) automates a variety of processes and is designed and built for all day, everyday use. The L-46X 2D Imager (1D and 2D barcodes) integrates Opticon's industry leading 2D CMOS imaging technology providing true point-and-shoot barcode scanning with a disinfectant ready protective casing for safe scanning in the healthcare field. L-46 series scanner highlights include:

  • Up to 100 frames per second (fps) 2D CMOS imager (L-46X)
  • 100 scans/second high speed laser scanner (L-46R)
  • Custom configuration capabilities including multi-read
  • Durable - survives six foot drop to concrete
  • IP42 rating against dust and moisture
  • Trigger modes: manual, auto-trigger and stand detection
  • Communication interface: USB or RS232
  • Interchangeable cables, making it easy to switch between USB or RS232
  • Antimicrobial coating optional
  • Available in black or white
  • Stand included
  • Backed by a two year warranty


Main Specification
General Information
Manufacturer Opticon Sensors Europe
Manufacturer Part Number L46XWU1-02
Manufacturer Website Address http://www.opticon.com
Brand Name Opticon
Product Series L-46
Product Model L-46X
Product Name L-46X 2D CMOS Imager Scanner
Product Type Barcode Scanner
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Scanning Capability 2D
Barcode Symbology Supported

1D:

  • UPC-A, UPC-E, UPC-E1, UPC-A Add-on, UPC-E Add-on, EAN-13, EAN-8, EAN-13 Add-on/EAN-8 Add-on, JAN-8, JAN-13, Code 39, NW-7 (Codabar), Industrial 2 of 5, Interleaved 2 of 5, Code 93, Code 128, GS1-128, MSI/Plessey, Code 11, OCR-B

POSTAL CODE:

  • Japanese Postal, Intelligent Mail Barcode, POSTNET, PLANET, Netherlands KIX Code, UK Postal, Australian Postal, Korean Postal Authority code

BARCODE (GS1):

  • GS1 DataBar, GS1 DataBar Limited,GS1 DataBar Expanded, Composite GS1 DataBar, Composite GS1-128 , Composite EAN , Composite UPC BARCODE(2D): PDF417, MicroPDF417, Codablock F, DataMatrix (ECC 200), DotCode, QR Code , Micro QR Code, MaxiCode, Aztec Code, Chinese Sensible Code
Light Source LED
Image Sensor Type Imager
Image Sensor Type CMOS
Scan Rate 100 scan/s
Scan Mode Trigger
Scan Pattern Single Pass
Scanning Distance 12.99"
Features Ergonomic Design
Features Notification LED
Features Beep
Number of Keys 1
Stand Included Yes
Field of View (Horizontal) 38°
Field of View (Vertical) 26°
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Drop Specification

6 ft (1.8 m) drop onto concrete surface

Minimum Print Contrast 20%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 20 mil
Minimum Element Resolution (DataMatrix) 5 mil
Maximum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 5 mil
Maximum Element Resolution (PDF417) 10 mil
Image Sensor Resolution 640 x 480
Processor & Chipset
Processor Type Cortex A7
Processor Speed 800 MHz
Interfaces/Ports
Host Interface USB
Power Description
Input Current 300 mA
Environmental Conditions
Operating Temperature 23°F (-5°C) to 122°F (50°C)
Storage Temperature -22°F (-30°C) to 140°F (60°C)
Humidity (Non-condensing) 0% to 90%
Physical Characteristics
Form Factor Handheld
Color Family White
Product Color White
Durability Dust Resistant
Height 6"
Width 4.1"
Depth 2.4"
Weight (Approximate) 3.95 oz
Miscellaneous
Package Contents
  • L-46X 2D CMOS Imager Scanner
  • Stand
Ingress Protection (IP) Rating IP42
Application/Usage Logistics
Application/Usage Transportation
Application/Usage Distribution
Application/Usage Warehouse
Application/Usage Retail
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 2 Year
