OPTICON L22XBU1-00 BARCODE SCANNERS,2D IMAGER, BLACK

Mfg Part Number:  L22XBU1-00
Image may not reflect the actual item.
Price: $187.67 + Free Shipping
Quantity:
More to Come
Last Updated: Aug 28, 2025
No Sales Tax except these states
, PO and Wire.

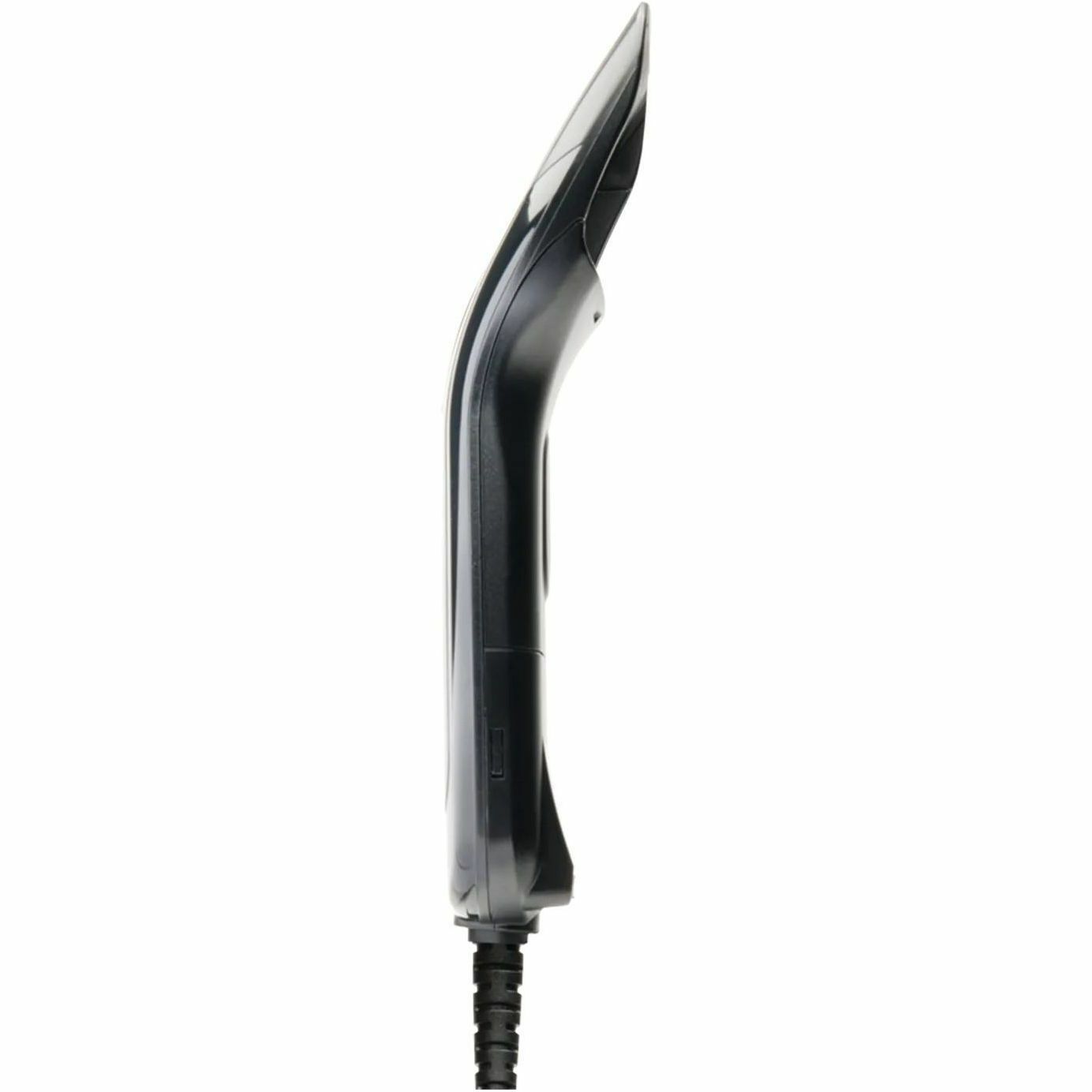

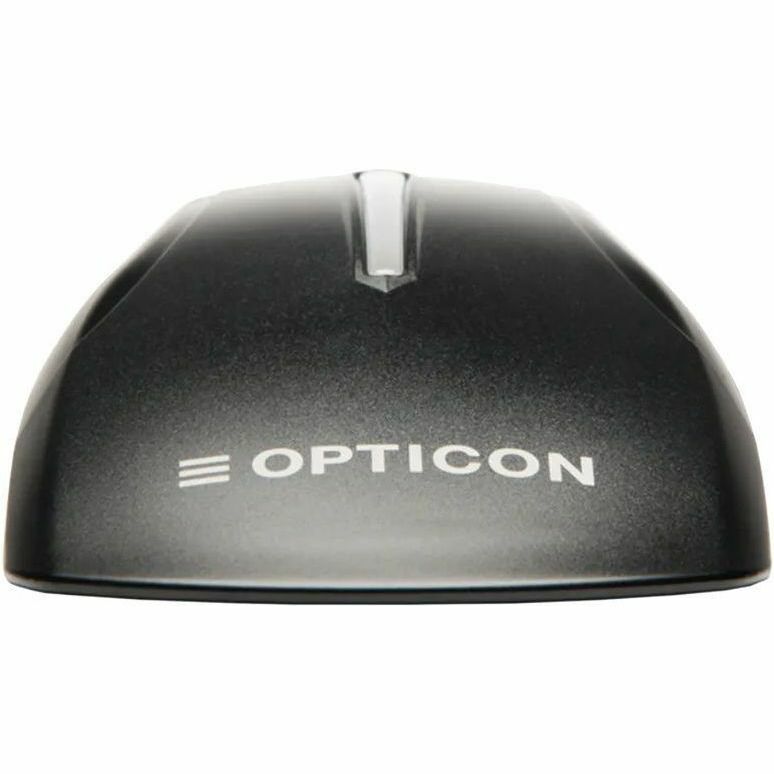

The L-22X is a welcome addition to our cabled scanners product range. The 2D image scanner has a modern design, scans at a speed of 100 fps and is designed to balance perfectly in your hand. As a result the scanner delivers a comfortable scan experience.

The L-22X is a fast 2D imager that scans at a fast speed of 100 fps. The scanner is lightweight and ergonomically designed so it balances perfectly in your hand. Furthermore, the cabled scanner comes with USB or RS-232 and in either black or white. The black or white combined with the sleek design will make sure that the scanner will look good on any counter or service desk.

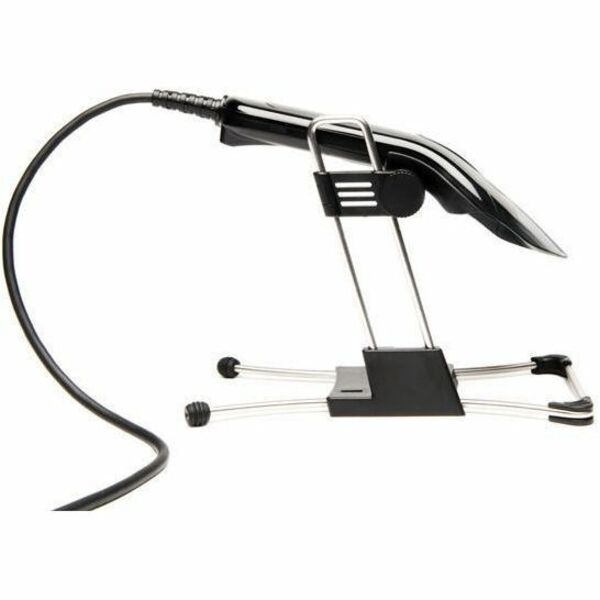

In addition, the device is delivered with a stand that activates the auto-trigger enabling hands free scanning action. Moreover the device is sealed up to IP 42 and is resistance to drop of 1.5 meters onto a concrete floor.

Main Specification
General Information
Manufacturer Opticon Sensors Europe
Manufacturer Part Number L22XBU1-00
Manufacturer Website Address http://www.opticon.com
Brand Name Opticon
Product Model L-22X
Product Name L-22X Barcode Scanner Kit
Product Type Barcode Scanner Kit
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Scanning Capability 2D
Barcode Symbology Supported

1D:

  • UPC-A
  • UPC-E
  • UPC-E1
  • UPC-A Add-on
  • UPC-E Add-on
  • EAN-13
  • EAN-8
  • EAN-13 Add-on/EAN8 Add-on
  • JAN-8
  • JAN-13
  • Code 39
  • Tri-Optic
  • Codabar
  • Industrial 2 of 5
  • Interleaved 2 of 5, S-code
  • Code 93
  • Code 128
  • GS1-128
  • IATA
  • MSI/Plessey
  • UK/Plessey
  • Telepen
  • Code 11
  • Matrix 2 of 5

Postal code:

  • Chinese Post Matrix 2of5
  • Korean Postal Authority code
  • Japanese Postal
  • Intelligent Mail Barcode
  • POSTNET
  • PLANET
  • Netherlands KIX Code
  • Australian Postal
  • UK Postal
  • 4-State Mailmark Barcode

2D:

  • PDF417
  • MicroPDF417
  • Codablock F
  • QR Code
  • Micro QR Code
  • Data Matrix (ECC 200)
  • Maxi Code (Modes 2 to 5)
  • Aztec Code
  • Chinese Sensible Code
  • OCR-B
Light Source LED
Image Sensor Type CMOS
Image Sensor Type Imager
Scan Mode Trigger
Depth of Field

Depth of field at code 39:

  • 11 - 57 mm (0.127 mm) / 0.233 - 2.244 in (5 mil)
  • 9 - 156 mm (0.254 mm) / 0.354 - 6.141 in (10 mil)
  • 31 - 318 mm (0.508 mm) / 1.221 - 12.519 in (20 mil)

Depth of field at Code 128:

  • 24 - 112 mm (0.2 mm) / 0.944 - 4.409 in (7.9 mil)

Depth of field at UPC:

  • 9 - 195 mm (0.33 mm) / 0.354 - 7.667 in (13 mil)

Depth of field at PDF417:

  • 4 - 76 mm (0.169 mm) / 0.157 - 2.992 in (6.7 mil)
  • 0 - 130 mm (0.254 mm) / 0 - 5.118 in (10 mil)

Depth of field at QR Code:

  • 20 - 44 mm (0.212 mm) / 0.787 - 1.7323 in (8.3 mil)
  • 0 - 161 mm (0.381 mm) / 0 - 6.339 in (15 mil)

Depth of field at DataMatrix:

  • 22 - 48 mm (0.169 mm) / 0.866 - 1.89 in (6.7 mil)
  • 2 - 96 mm (0.254 mm) / 0.079 - 3.779 in (10 mil)
Scan Pattern Area
Scanner Range Standard Range
Scanning Distance 12.51"
Features Scan Button
Features Vibration
Features Ergonomic Design
Features Notification LED
Cable Type Included USB
Stand Included Yes
Field of View (Horizontal) 38°
Field of View (Vertical) 26°
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Drop Specification
  • 1.8 m / 6 ft drop onto concrete surface
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 20 mil
Minimum Element Resolution (DataMatrix) 6.7 mil
Maximum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 6.7 mil
Maximum Element Resolution (PDF417) 10 mil
Image Sensor Resolution 640 x 480
Illumination Type LED
Illumination Color White
Processor & Chipset
Processor Type Cortex A7
Interfaces/Ports
Host Interface USB
Host Interface Serial
Environmental Conditions
Operating Temperature 23°F (-5°C) to 122°F (50°C)
Storage Temperature -22°F (-30°C) to 140°F (60°C)
Humidity (Non-condensing) 5% to 90%
Physical Characteristics
Form Factor Handheld
Color Family Black
Product Color Black
Product Material Acrylonitrile Butadiene Styrene (ABS)
Durability Dust Resistant
Durability Water Resistant
Height 2.4"
Width 6.5"
Depth 1.2"
Weight (Approximate) 2.72 oz
Miscellaneous
Package Contents
  • L-22X Barcode Scanner
  • USB Cable
  • Stand
Ingress Protection (IP) Rating IP42
Application/Usage Retail
Application/Usage Self-checkout
Application/Usage Healthcare
Application/Usage Commercial Service
Application/Usage Warehouse
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 2 Year
