OPTICON

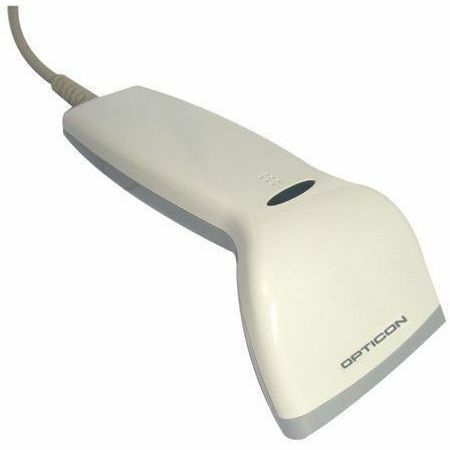

OPTICON C37WU1-00 BARCODE SCANNERS,CCD CABLED BARCODE SCANNER, WHITE

Mfg Part Number:  C37WU1-00
Image may not reflect the actual item.
Price: $82.62 + Free Shipping
Quantity:
More to Come
Last Updated: Sep 01, 2025
No Sales Tax except these states
, PO and Wire.

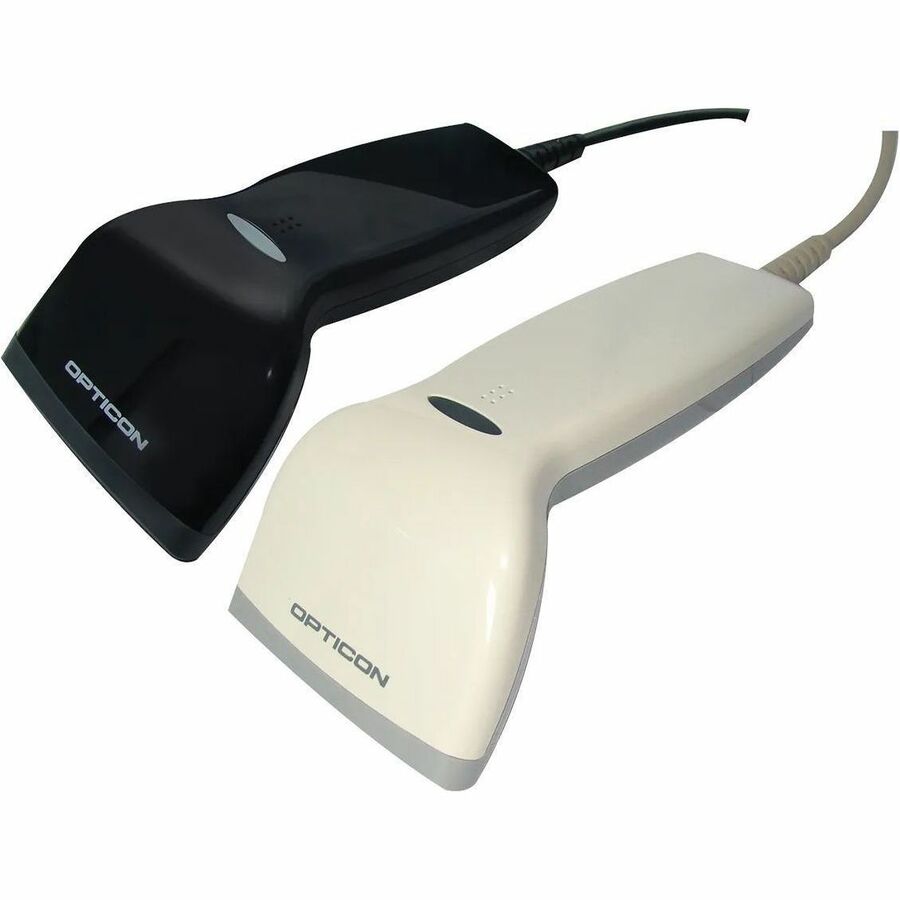

The C-37 CCD scanner is a durable handheld barcode reader with a wide optical window and a strong scan engine. The scanner can operate at a speed of up to 200 scans per second and fits comfortably in anyone's hand. The scanner is available in black or white and is the perfect scanner for your counter.

This ergonomically shaped C-37 is a CCD scanner that works on any counter, desk, or surface. With 200 scans a second it is also a rapid scanner with an auto-scan option. Combine that with the optional stand and you have a hands free scanning solution. This scanner is available in black and white. With an IP rating of IP42, it is also resistant to drops up to 1.5 meters.

This cabled scanner comes with RS-232, keyboard wedge, or USB interface. This device is easily programmable to suit your application.

Main Specification
General Information
Manufacturer Opticon Sensors Europe
Manufacturer Part Number C37WU1-00
Manufacturer Website Address http://www.opticon.com
Brand Name Opticon
Product Model C-37
Product Name C-37 Barcode Scanner Kit
Product Type Barcode Scanner Kit
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Barcode Symbology Supported

1D:

  • AN/UPC/EAN incl. add on
  • Codabar/NW-7
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • GS1-128 (EAN-128)
  • GS1 Databar (RSS)
  • IATA
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • ISBN-ISSM-ISSN
  • Matrix 2 of 5
  • MSI/Plessey
  • S-Code
  • Telepen
  • Tri-Optic
  • UK/Plesse

Postal Code:

  • Chinese Post
  • Korean Postal Authority Code
Light Source LED
Image Sensor Type Imager
Image Sensor Type CCD
Scan Rate 200 scan/s
Scan Mode Trigger
Depth of Field
  • 0 - 15 mm / 0 - 0.59 in @ code 39
Scan Pattern Linear
Scanner Range Standard Range
Scanning Distance 0.59"
Features Notification LED
Features Vibration
Features Ergonomic Design
Number of Keys 1
Cable Type Included USB
Reading Angle (Skew) 70°
Reading Angle (Pitch) 30°
Maximum Ambient Light 10000 lux
Drop Specification
  • 1.5 m / 5 ft drop onto concrete surface
Interfaces/Ports
Host Interface USB
Host Interface Keyboard Wedge
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Color Family White
Product Color White
Product Material Acrylonitrile Butadiene Styrene (ABS)
Durability Dust Resistant
Durability Water Resistant
Height 3"
Width 2.1"
Depth 5.9"
Weight (Approximate) 3.17 oz
Miscellaneous
Package Contents
  • C-37 Barcode Scanner
  • USB Cable
Ingress Protection (IP) Rating IP42
Application/Usage Commercial Service
Application/Usage Healthcare
Application/Usage Self-checkout
Application/Usage Retail
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 2 Year
