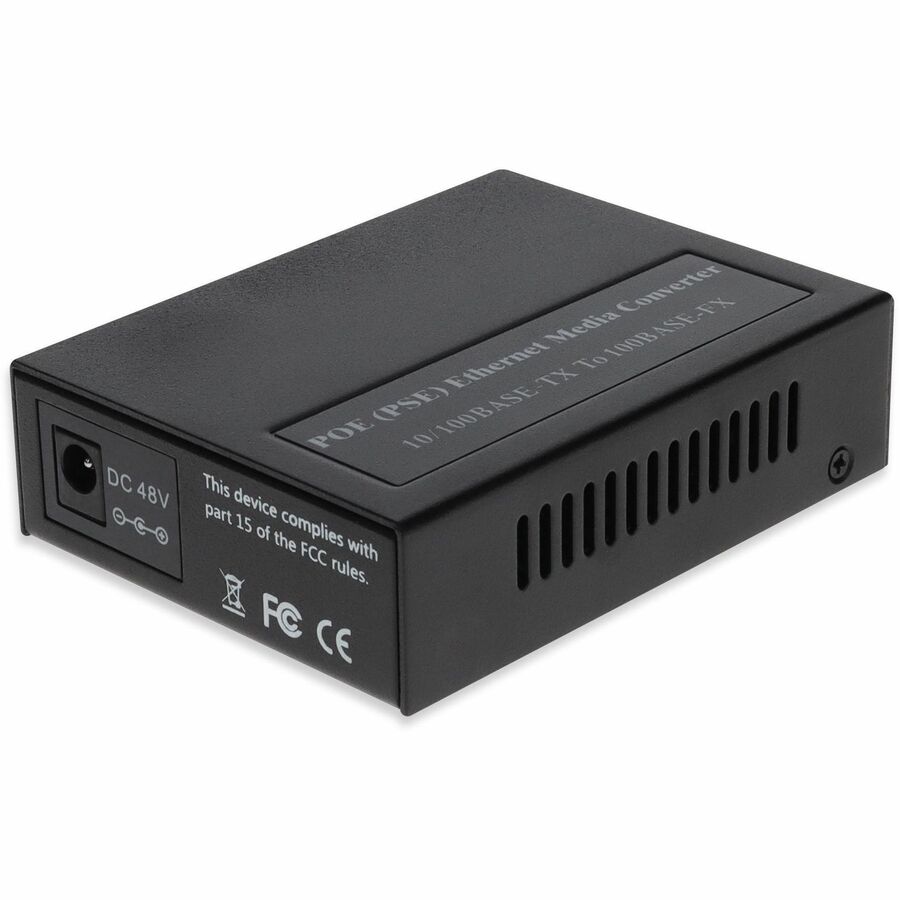

AddOn ADD-FMCP-FX-LC 100-TX/FX RJ-45/LC 1310NM MEDIA CONVRTR

This is a media converter that converts a 10/100Base-TX(RJ-45) to 100Base-FX(LC) via a 1310nm multi-mode fiber (MMF) LC connector, which allows distance reach up to 2km. This provides a cost effective conversion from 10/100Base-TX(RJ-45) to 100Base-FX fiber, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a power sourcing equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.

General Information
Manufacturer	AddOn
Manufacturer Part Number	ADD-FMCP-FX-LC
Manufacturer Website Address	http://www.addoncomputer.com
Brand Name	AddOn
Product Name	10/100Base-TX(RJ-45) to 100Base-FX(LC) MMF 1310nm 2km POE Media Converter
Packaged Quantity	1
Product Type	Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports	2
Network (RJ-45)	Yes
Number of PoE (RJ-45) Ports	1
PoE Port Type	PSE
Number of LC Ports	1
Number of Network (RJ-45) Ports	1
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm
Maximum Data Transfer Rate	100 Mbit/s
Maximum Distance Supported	2 km
Network & Communication
Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-TX
Network Technology	100Base-FX
Power Description
Power Source	AC/DC
Input Voltage	48 V DC
Input Voltage	56 V DC
Power Consumption	15 W
Physical Characteristics
Height	5.5"
Width	4.5"
Depth	1.8"
Weight (Approximate)	8 oz
Miscellaneous
Application/Usage	Network
Additional Information	Management Type: Unmanaged IEEE Standard: 802.3af
Compatibility	Compatible OEM: Industry Standard
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	China
TAA Compliant	No
Warranty
Limited Warranty	3 Year
