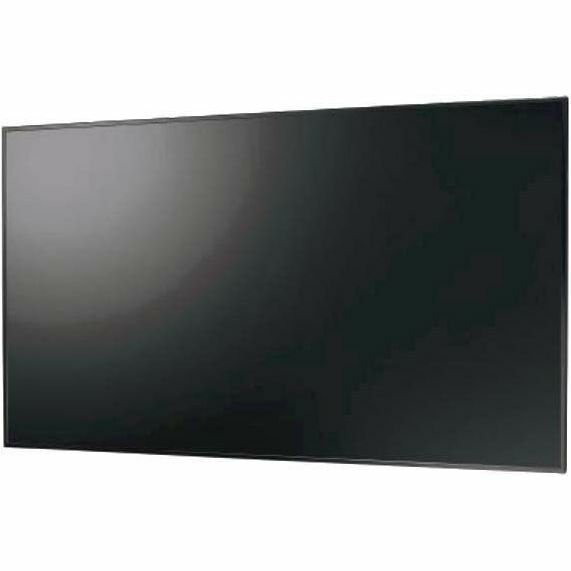

The QM-Series 4K slim bezel large format display is designed for commercial applications that require crisper and clearer image presentation. Featuring easy-to-use content playback, UHD resolution with a wide viewing angle, the QM-Series large format display is ideally designed for retail stores, corporate meeting areas, hotels and other public spaces.
Experience the 4K Difference
Don't miss a single detail with this powerful 4K display. View smooth 4K video and images with a new level of detail and clarity. Offering 8.3 million pixels, the QMSeries provides the ultimate digital signage experience.
Easily Create and Publish Content
Deliver attractive messaging with the free and easy-to-use Content Management System (CMS) that works exclusively with QM-Series displays. With preloaded templates and integrated widgets, you are able to create, modify and design content easily. Simply connect the QM-Series display with an RJ45 cable or an optional Wi-Fi dongle and instantly publish signage campaigns through your local network.
Simple Software Integration with Android OS
With Android OS embedded into the display, you can easily integrate apps from a variety of supported Android apps. Using the integrated HTML5 browser, you can display dynamic online or cloud-based content.
Versatile Content Playback and Scheduling
The embedded 4K media player allows to conveniently play content from a USB drive, micro SD or the internal storage. Simply create scheduled playlists with the included remote control to display your personalized content.
PID Command & Ctrl Software
PID Command & Ctrl is a software that allows users to control AG Neovo displays via LAN or RS232 connections. It provides a simple and intuitive interface for remote management, OSD-related settings, and easy control on deployed displays. It also can be used to create video walls within minutes and assist system integrators with setting up displays.
| General Information | |
| Manufacturer | AG Neovo Technology Corporation |
| Manufacturer Part Number | QM-43A |
| Manufacturer Website Address | http://www.agneovo.com |
| Brand Name | AG Neovo |
| Product Series | QM |
| Product Model | QM-43A |
| Product Name | QM-43A Digital Signage Display |
| Product Type | Digital Signage Display |
| Technical Information | |
| Surface Hardness | 2H |
| Panel Technology | Vertical Alignment (VA) |
| Processor & Chipset | |
| Processor Speed | 1 GHz |
| Processor Core | Quad-core (4 Core) |
| Memory | |
| Standard Memory | 2 GB |
| Memory Technology | DDR3 SDRAM |
| Display & Graphics | |
| Number of Screens | 1 |
| Viewable Screen Size | 42.50" |
| Display Screen Type | LCD |
| Display Resolution | 3840 x 2160 |
| Response Time | 5 ms |
| Pixel Pitch | 9.6 mil |
| Backlight Technology | LED |
| Video | |
| Scan Format | 2160p |
| Native Contrast Ratio | 5,000:1 |
| Brightness | 350 Nit |
| Network & Communication | |
| Ethernet | Yes |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| HDMI | Yes |
| Serial | Yes |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| Number of HDMI Inputs | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI 2.0 Ports | 2 |
| Software | |
| Operating System | Android 5.0.1 Lollipop |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Environmental Conditions | |
| Minimum Operating Temperature | 41°F (5°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 90% |
| Physical Characteristics | |
| Height | 22" |
| Width | 38.1" |
| Depth | 2.4" |
| Weight (Approximate) | 19.18 lb |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Public Space |
| Application/Usage | Retail |
| Application/Usage | Restaurant |
| Application/Usage | Hotel |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
