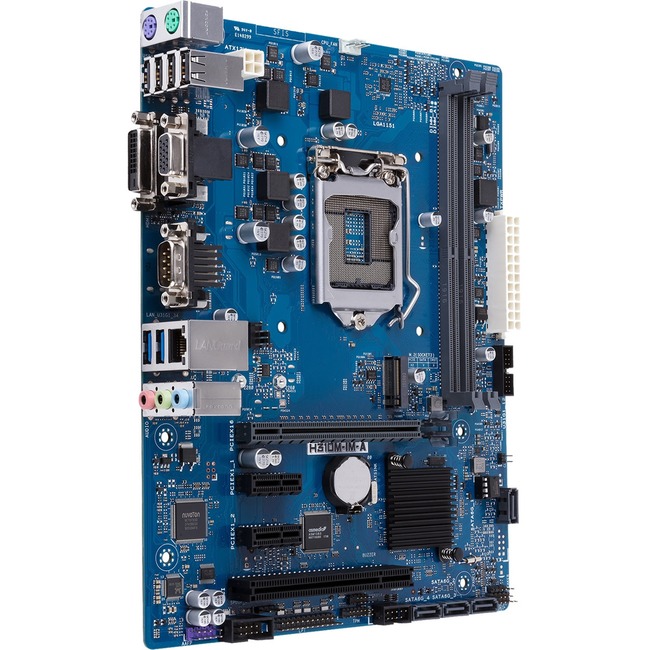

Asus MB H310M-IM-A Ci7 i5 i3 S1151 micro-ATX MB w H310 chipset U-DIMM DVI-D
Mfg Part Number: H310M-IM-A , Item #: 4147344
, PO and Wire.
8th/9th Generation Intel® CoreTM i7/i5/i3 LGA 1151 Micro-ATX motherboard with H310 chipset, two U-DIMM slots, DVI-D & D-sub, M.2 slot, PCIe x16 and four SATA ports
- Supports Intel®9th/8th Gen Core™ processors (LGA1151) with the Intel H310 chipset
- Two U-DIMM slots support up to 32GB DDR4 2400/2133 MHz SDRAM
- Supports dual display configurations with multiple interfaces, including DVI-D & D-sub
- Advanced I/O and connectivity features
- Seven years of longevity with extended product life cycles
- Wide temperature range endurance: 0-60°C
ASUS H310M-IM-A is a Micro-ATX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, COM ports, four SATA ports and two M.2 sockets as well as rich expandability with a PCIe x16 slot. ASUS H310M-IM-A is an ideal choice for a wide range of embedded applications.
As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | H310M-IM-A |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus |
| Product Model | H310M-IM-A |
| Product Name | H310M-IM-A Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H310 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Celeron |
| Processor Supported | Core i5 |
| Processor Supported | Pentium Gold |
| Processor Supported | Core i7 |
| Processor Supported | Core i3 |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 2666 MHz |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 2400 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Ports | 2 |
| VGA | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of Onboard USB 3.2 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 7.6" |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
