HANWHA TECHWIN
HANWHA TECHWIN PNV-A9081R 4K NETWORK AI IR VANDAL DOME CAMERA, MAX. 4K RESOLUTION @ 30FPS, 0.05LUX@F1.6 (C
Mfg Part Number: PNV-A9081R , Item #: 4144736

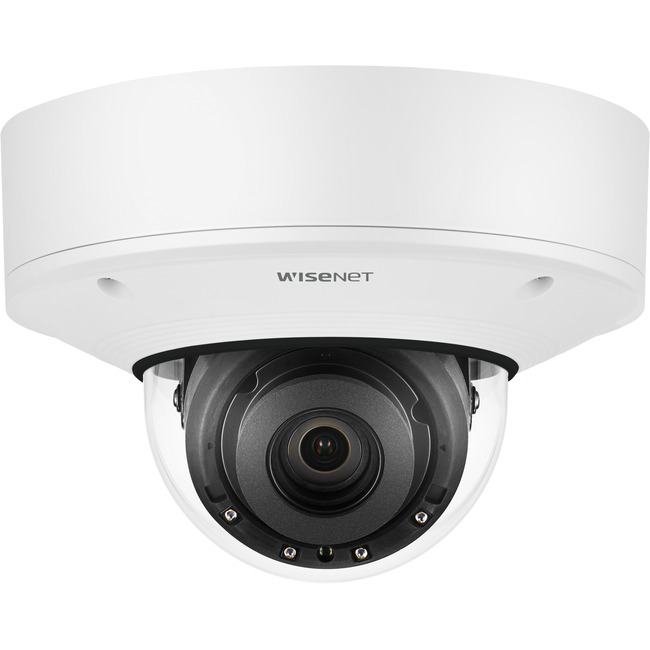

Image may not reflect the actual item.
Price: $1,652.90
+ Free Shipping
Quantity:
More to Come
Last Updated: Nov 12, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | PNV-A9081R |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Hanwha Techwin |
| Product Series | P |
| Product Model | PNV-A9081R |
| Product Name | 4K IR Outdoor Vandal Dome AI Camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | 4K |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele) |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | MJPEG |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | H.264 (MP) |
| Video Formats | H.264 HP |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.50 mm |
| Maximum Focal Length | 10 mm |
| Lens Included | Yes |
| Minimum Aperture | f/2.65 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 2.2x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Physical Characteristics | |
| Mount Type | Hanging Mount |
| Mount Type | Gang Box Mount |
| Mount Type | Corner Mount |
| Mount Type | Wall Mount |
| Mount Type | Pipe Mount |
| Mount Type | Gooseneck |
| Mount Type | Pendant Mount |
| Mount Type | Parapet Mount |
| Mount Type | Conduit Mount |
| Mount Type | Pole Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant |
| Color Family | White |
| Product Color | White |
| Diameter | 7.1" |
| Weight (Approximate) | 4.19 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Built-in Infrared Illuminator |
| Features | Wide Dynamic Range |
| Features | PTZ |
| Features | Digital Image Stabilization |
| Features | SD Card Local Storage |
| Features | Face Detection |
| Features | Audio Detection |
| Features | Motion Detection |
| Features | Shock Detection |
| Features | Day/Night |
| Features | Tamper Detection |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10+ |
| Ingress Protection Rating | IP67 |
| Ingress Protection Rating | IP66 |
| Ingress Protection Rating | IP6K9K |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
