BLACK BOX
BLACK BOX PDUMV24-S15-120V PDU - VERTICAL, METERED, 15-AMP SINGLE CIRCUIT, 120V, 24-OUTLET, 5-15R, 5-15P, 4
Mfg Part Number: PDUMV24-S15-120V , Item #: 4139573
Image may not reflect the actual item.
Price: $344.99
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Dec 10, 2025
No Sales Tax except these states
, PO and Wire.

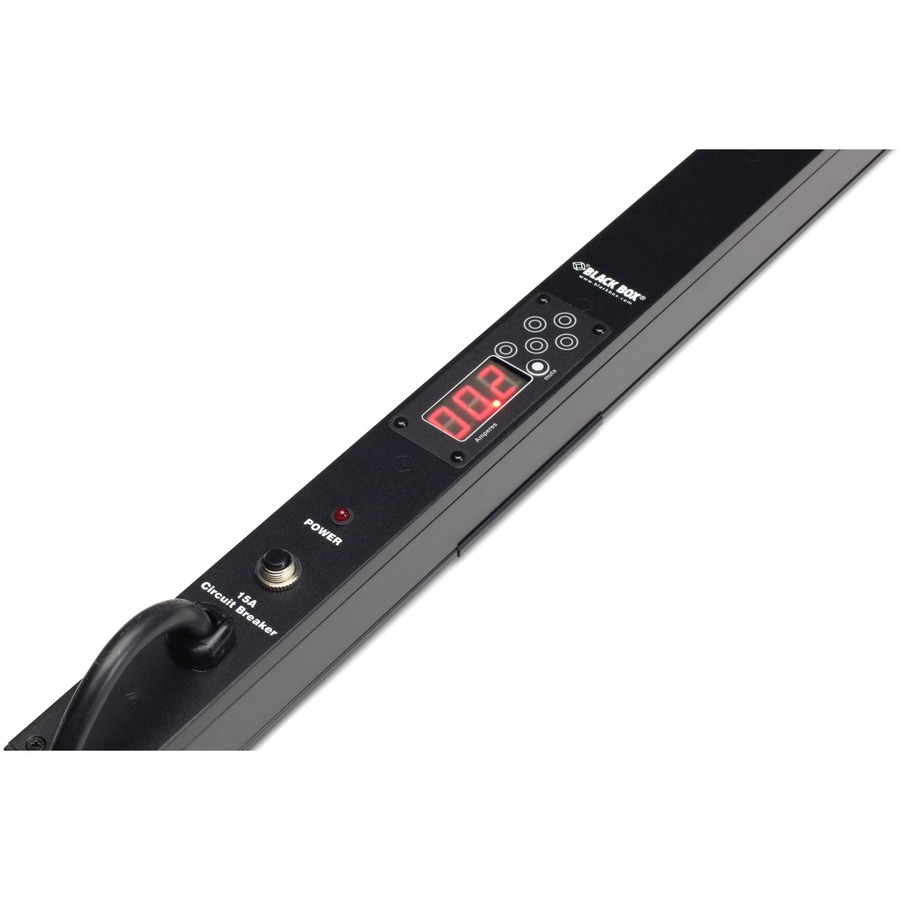

The metered PDU LCD display shows the current power draw in amps. The metered PDU only has one function button, MUTE, located next to the display. The metered PDU's alarm sounds when the current draw reaches 80% of capacity. The alarm can be turned off by pressing the MUTE button. When the current draw exceeds 90% of the maximum current rating, the alarm cannot be muted, and the PDU alarms until the current draw is reduced.
Main Specification
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | PDUMV24-S15-120V |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Name | Vertical Metered PDU - 15-Amp Single Circuit, 120V, 24-Outlet, 5-15R, 5-15P |
| Product Condition | Refurbished |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 24 x NEMA 5-15R |
| Protection Type | Circuit Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Current | 15 A |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Mount Type | Cabinet-mountable |
| Height | 3" |
| Width | 4.8" |
| Depth | 65" |
| Length | 60" |
| Weight (Approximate) | 5 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
