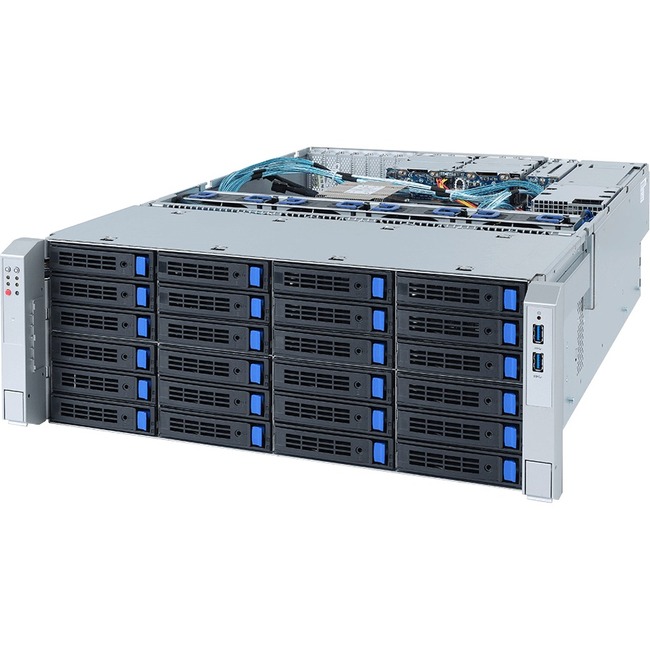

GIGABYTE S452-Z30 4U UP AMD EPYC 7002 CPU 16 DDR4 2X1GBE/36 X 3.5 SATA SAS2 1200W PSU

AMD EPYC™ 7002 Series Processor (Rome)

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability - designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.

• Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption
• Up to 64 core per CPU, built using Zen 2 high performance cores and AMD's innovative chiplet architecture
• Supporting PCIe Gen 4.0 with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0
• Embedded security protection to help defend your CPU, applications, and data

GIGABYTE Management Console

GIGABYTE server utilizes the AMI MegaRAC SP-X solution for BMC server management, has a browser-based graphical user interface, and is feature-rich and easy to use.

• RESTful API support includes the latest DMTF standard of Redfish. Allows integration with 3rd party applications for server management
• Including HTML5 based iKVM remote management client, no need to purchase other additional licenses
• Detailed FRU information from SMBIOS
• 10 to 30 seconds pre-event automatic recording function
• SAS / RAID controller monitoring function

GIGABYTE Server Management (GSM)

GIGABYTE Server Management (GSM) is GIGABYTE's proprietary multiple server remote management software platform, available as a free download from each GIGABYTE server product page. GSM is compatible with either IPMI or Redfish (RESTful API) connection interfaces, and comprises the following sub-programs:

• GSM Server, a software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node's BMC.
• GSM CLI, a command-line interface program to enable global remote monitoring and management of multiple GIGABYTE servers via each server node's BMC.
• GSM Agent*, a software program installed locally on each GIGABYTE server node that retrieves additional node information (CPU/Mem/HDD/PCI/...) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI.
  *GSM Agent is currently compatible with Avocent MergePoint IPMI 2.0 BMC firmware, but not yet compatible with Megarac SP-X BMC firmware.
• GSM Mobile, a remote server management mobile APP, available for both Android and iOS.
• GSM Plugin, a plugin that allows the user to manage and monitor GIGABYTE server nodes within VMware's vCenter.

Intuitive & Informative User Interface

Starting from the GSM Server dashboard, the user can clearly understand the status of each node in the IT environment, including:

• Node connection status (system is online/offline)
• Node hardware sensor status (to detect hardware anomalies). Sensors measure voltage, fan speed and temperature
• Node usage rate status (allowing you to timely allocate more resources when they are needed), including:
• Power consumption
• Disk/RAID usage information
• Memory usage rate
• CPU usage rate
• Network card / PCI information

The user can also perform various management functions, including:

• Node remote access
  • Power on / off / reset
  • Launch iKVM
  • Reboot BMC / BMC Account Configuration
• Network Configuration
  • IPv4/IPv6 setting
• Alert Management
  • SNMP trap setting
  • Platform events filters
