HANWHA TECHWIN
HANWHA TECHWIN XNV-6081RE WISENET X POWERED BY WISENET 5 NETWORK I
Mfg Part Number: XNV-6081RE , Item #: 4130305
, PO and Wire.

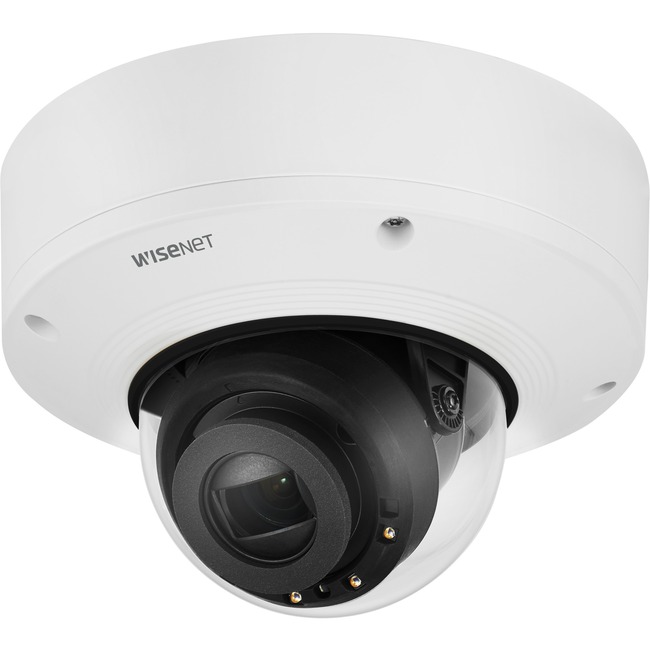

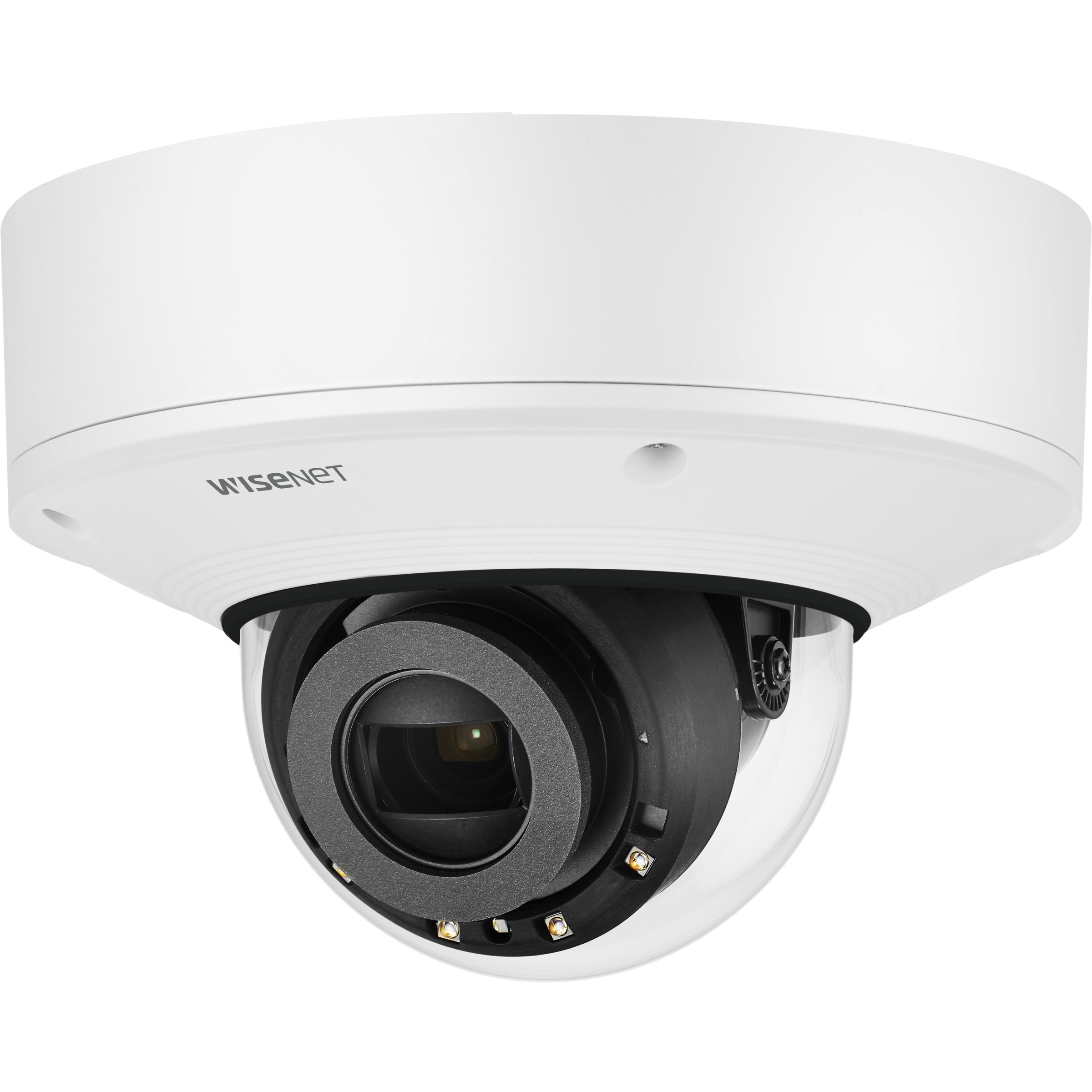

The Wisenet X series PLUS powered by Wisenet 5 network outdoor IR vandal dome camera features a modular structure, 2MP, Full HD(1080p) @ 60fps, motorized vari-focal lens 4.3x (2.8~12mm) (119.5°~27.9°). Features a builtin PoE Extender feature. PoE+ power input and PoE output up to 80 meters. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 150dB WDR, USB port for easy installation, high powered IR LEDs with a range of 164', advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, fog detection, DIS (Gyro), 12VDC/PoE, optional 24VAC, IP67/IP66/IP6K9K, IK10+, NEMA 4X, -50°C ~ +60°C (-58°F ~ +140°F), white color, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNV6081RE |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNV-6081RE |
| Product Name | XNV-6081RE 2MP Vandal-Resistant Outdoor IR Network Dome Camera with PoE Extender |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | HD |
| HD Recording | Yes |
| Night Vision Distance | 164.04 ft |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Color Supported | Monochrome |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265 |
| Video Formats | MJPEG |
| Video Formats | H.264 |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 2.80 mm |
| Maximum Focal Length | 12 mm |
| Minimum Aperture | f/3.6 |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 4.3x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Ceiling Mount |
| Mount Type | Pendant Mount |
| Mount Type | Roof Mount |
| Mount Type | Wall Mount |
| Mount Type | Corner Mount |
| Mount Type | Pole Mount |
| Mount Type | Parapet Mount |
| Form Factor | Dome |
| Color Family | White |
| Product Color | Signal White |
| Diameter | 7.1" |
| Weight (Approximate) | 3.86 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -58°F (-50°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Indoor/Outdoor | Indoor/Outdoor |
| Impact Protection Rating | IK10+ |
| Ingress Protection Rating | IP66 |
| Ingress Protection Rating | IP67 |
| NDAA Compliant | Yes |
Mounting Kits
PARAPET MOUNT ACCESSORY, COMPATIBLE WITH ALL FULL SIZE OUTDOOR PTZS AND ALL CAPS
