HANWHA TECHWIN
HANWHA TECHWIN XND-6081REV WISENET X POWERED BY WISENET 5 NETWORK I
Mfg Part Number: XND-6081REV , Item #: 4126958
, PO and Wire.

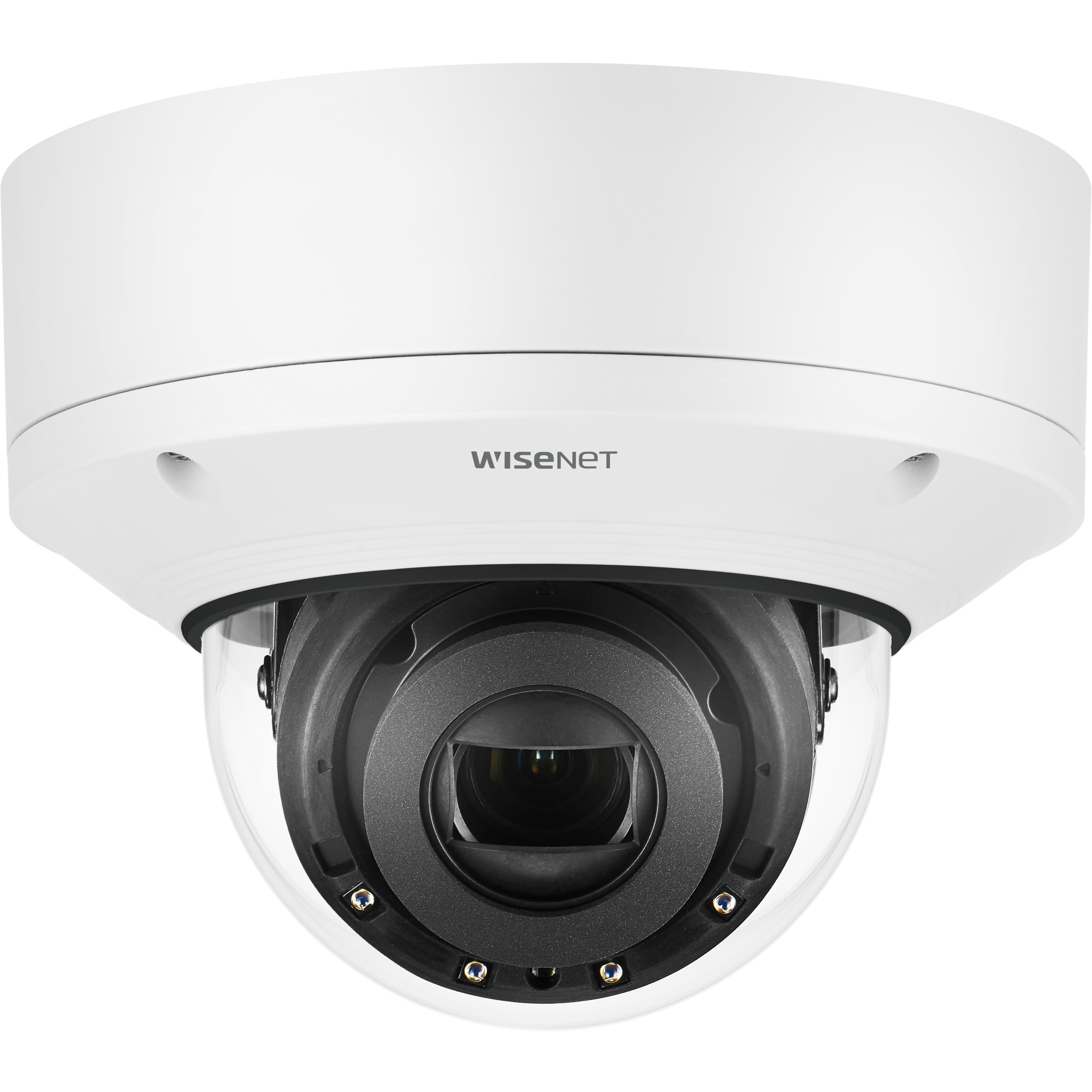

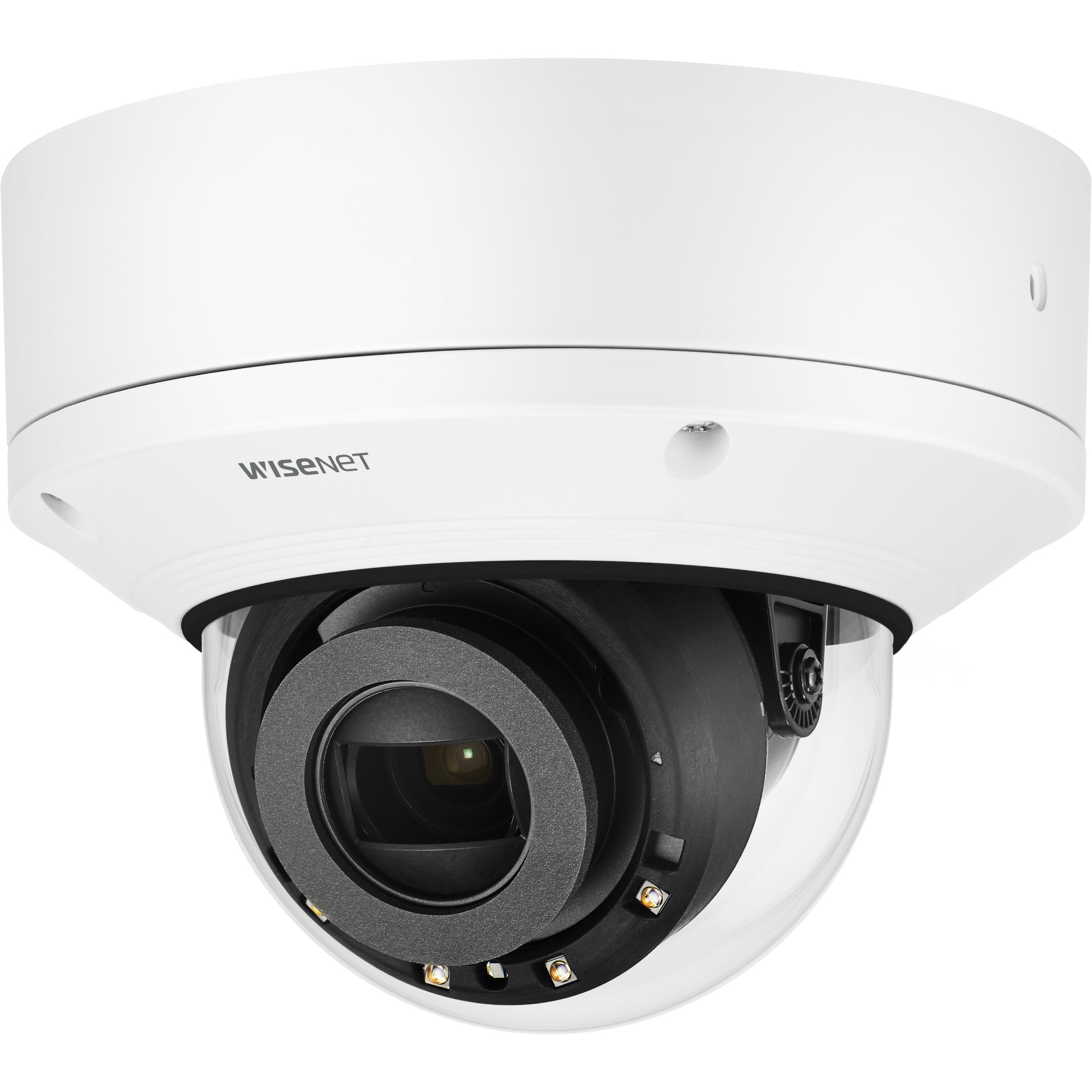

The Wisenet X series PLUS powered by Wisenet 5 network indoor vandal dome camera features a modular structure, 2MP, Full HD(1080p) @ 60fps, motorized vari-focal lens 4.3x (2.8~12mm) (119.5°~27.9°). Features a builtin PoE Extender feature. PoE+ power input and PoE output up to 80 meters. 164 foot IR viewable range for low light/no light monitoring. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 150dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, fog detection, DIS (Gyro), 12VDC/PoE, IP52, IK10, white color, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XND6081REV |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XND-6081REV |
| Product Name | 2MP Vandal-Resistant Indoor IR Network Dome Camera with PoE Extender |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | HD |
| HD Recording | Yes |
| Night Vision Distance | 164.04 ft |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Monochrome |
| Color Supported | Color |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 2.80 mm |
| Maximum Focal Length | 12 mm |
| Minimum Aperture | f/3.6 |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 4.3x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Parapet Mount |
| Mount Type | Pendant Mount |
| Mount Type | Wall Mount |
| Mount Type | Pole Mount |
| Mount Type | Corner Mount |
| Form Factor | Dome |
| Color Family | White |
| Product Color | Signal White |
| Diameter | 6.3" |
| Weight (Approximate) | 3.20 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -13°F (-25°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP52 |
| NDAA Compliant | Yes |
Mounting Kits
PARAPET MOUNT ACCESSORY, COMPATIBLE WITH ALL FULL SIZE OUTDOOR PTZS AND ALL CAPS
Installation Back box compatible with (SBP-300WMW SBP-300WMW1 SBP-300KMW SBP-300PMW)
