BLACK BOX

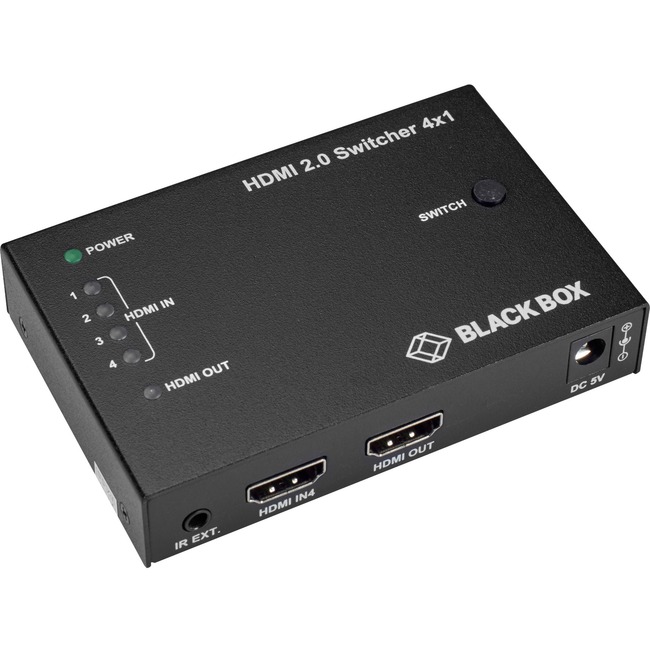

BLACK BOX VSW-HDMI2-4X1 HDMI 2.0 4K VIDEO SWITCH - 4X1
Mfg Part Number: VSW-HDMI2-4X1 , Item #: 4125444
Image may not reflect the actual item.
Price: $106.28
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 05, 2025
No Sales Tax except these states
, PO and Wire.
Switching between four HDMI sources to a single display is easier and more reliable. The HDMI 2.0 Video Switch - 4K60, HDCP, 3x1 features HDMI 2.0 and HDCP 2.2 compatibility and supports resolutions up to 4K @ 60 Hz 4:4:4 8-bit, enabling four Ultra HD sources to be switched to one Ultra HD display. It also allows control through a top panel button, IR remote, and automatic switch. The switch is small, compact and easy to install, giving you the convenience of future-ready Ultra HD AV switching, and the reliability of cutting-edge HDMI 2.0 and HDCP 2.2 compatibility
With increased bandwidth up to 18 Gbps, you can switch signals from four sources to a single display while maintaining:
- Higher resolutions
- Higher frame rates
- Multiple full HD streams in the same pipe
- 21:9 aspect ratio
Main Specification
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | VSW-HDMI2-4X1 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Name | HDMI 2.0 4K Video Switch - 4x1 |
| Packaged Quantity | 1 |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 4 |
| Device Supported | Display |
| Number of Displays Supported | 1 |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 1 |
| Physical Characteristics | |
| Height | 0.8" |
| Width | 3.9" |
| Depth | 2.6" |
| Weight (Approximate) | 8.47 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
