Panduit
LCDX8-14A-L Panduit Pan-Lug - Cable compression lug - red
Mfg Part Number: LCDX8-14A-L , Item #: 4118698
Image may not reflect the actual item.
Price: $4.36
Quantity:
More to Come
Last Updated: Nov 16, 2025
No Sales Tax except these states
, PO and Wire.

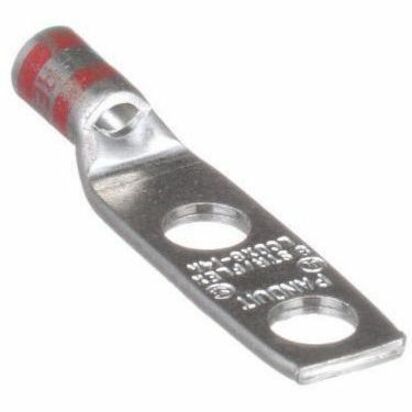

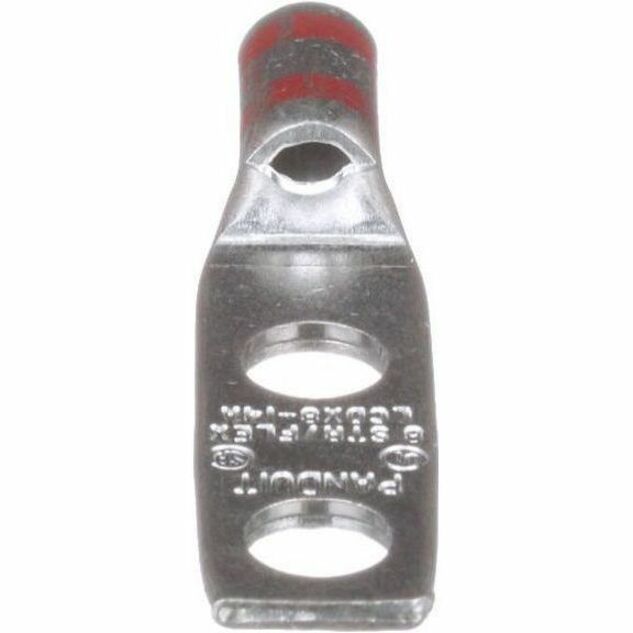

The LCDX8-14A-L Tin-Plated Copper Compression Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Main Specification
| General Information | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | LCDX814AL |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | Pan-Lug |
| Product Name | Pan-Lug Copper Compression Connectors - Lugs |
| Packaged Quantity | 50 |
| Product Type | Terminal Connector |
| Technical Information | |
| Connector Type | Terminal |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Compatible Wire Gauge | 8 AWG |
| Features | Corrosion Resistant |
| Physical Characteristics | |
| Color Family | Red |
| Product Color | Red |
| Product Material | Copper |
| Material Details | Copper - Base,Conductor |
| Diameter | 0.3" |
