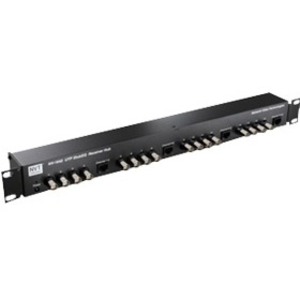

PHYBRIDGE NV-1642 16-CHANNEL STUBEQ ACTIVE HUB (PWR SUPPLY
Mfg Part Number: NV-1642 , Item #: 4085495
, PO and Wire.
Employing NVT Phybridge's StubEQ™ technology, the NV-1642 is a 16-channel active (amplified) hub that allows the transmission of real time monochrome or color video for distances up to 2,000ft (600m2,) using Category 5 or better unshielded twisted-pair (UTP) wire. The receiver hub continuously and automatically conditions the video signal, compensating for cable attenuation, ground loops, and voltage transients, independent of video signal content.
The unparalleled interference rejection and low emissions allow long run video to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. this allows the use of shared or existing cable plant. Ground-lifting ensures no annoying "hum-bars" when ground-potential differences exist. With built-in transient protection, damaging voltage spikes are eliminated.
| General Information | |
| Manufacturer | Phybridge, Inc |
| Manufacturer Part Number | NV-1642 |
| Manufacturer Website Address | http://www.phybridge.com |
| Brand Name | NVT Phybridge |
| Product Model | NV-1642 |
| Product Name | 16-Channel StubEQ Active Receiver Hub |
| Product Type | Video Extender Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 16 |
| Maximum Operating Distance | 1509.19 ft |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Form Factor | Desktop |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | Lifetime |
