PHYBRIDGE NV-215J-M 1-CH PASSIVE VIDEO TRANSCEIVER RJ45
Mfg Part Number: NV-215J-M , Item #: 4074115
, PO and Wire.
NV-215J-M Video Transceiver is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported.

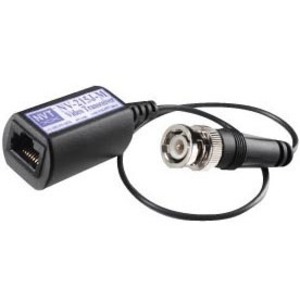

The passive NV-215J-M has a 9" mini-coax pigtail lead which allows in-camera enclosure mounting in most dome cameras and a RJ45 for connection to UTP wire. It is capable of delivering a fully equalized signal to the DVR when used with any Active NVT PhybridgeReceiver, yet is compatible with all of NVT Phybridge's passive products for applications under 750ft (225m). The NV-215J-M Video Transceiver also incorporates improved transient protection that eliminates the need for a ground screw.
The unparalleled interference rejection and low emissions of the NV-215J-M allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant.
| General Information | |
| Manufacturer | Phybridge, Inc |
| Manufacturer Part Number | NV-215J-M |
| Manufacturer Website Address | http://www.phybridge.com |
| Brand Name | NVT Phybridge |
| Product Model | NV-215J-M |
| Product Name | NV-215J-M Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of BNC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Distance Supported | 0.23 km |
| Physical Characteristics | |
| Form Factor | External |
| Height | 1" |
| Width | 1.7" |
| Depth | 1.8" |
| Weight (Approximate) | 2 oz |
| Warranty | |
| Limited Warranty | Lifetime |
