SEAGATE
SEAGATE ST3400633A 400GB IDE PATA 7.2K 16MB 3.5IN DISC PROD SPCL SOURCING SEE NOTES
Mfg Part Number: ST3400633A , Item #: 405436

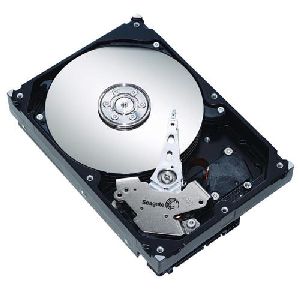

Image may not reflect the actual item.
Price: $209.99
+ Free Shipping
Quantity:
In Stock: 9
Last Updated: Jul 27, 2025
No Sales Tax except these states
, PO and Wire.
The Seagate Barracuda 7200.9 is the industry's most comprehensive 3.5-inch drive, providing leading technology targeted at PATA servers, mainstream and high-performance PCs/workstations and media PCs.
Main Specification
| General Information | |
| Manufacturer | Seagate Technology |
| Manufacturer Part Number | ST3400633A |
| Manufacturer Website Address | http://www.seagate.com |
| Brand Name | Seagate |
| Product Line | BarraCuda |
| Product Series | 7200.9 |
| Product Model | ST3400633A |
| Product Name | Barracuda 7200.9 Hard Drive |
| Product Type | Hard Drive |
| Technical Information | |
| Storage Capacity | 400 GB |
| Platform Supported | PC |
| Drive Performance | |
| Maximum External Data Transfer Rate | 100 MB/s (800 Mbit/s) |
| Spindle Speed (rpm) | 7200 |
| Buffer | 16 MB |
| Interfaces/Ports | |
| Drive Interface | IDE |
| Drive Interface Standard | IDE Ultra ATA/100 (ATA-6) |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | 3.5" |
| Height | 1" |
| Width | 0.5" |
| Depth | 5.8" |
| Weight (Approximate) | 1.52 lb |
| Warranty | |
| Limited Warranty | 3 Year |
Barracuda 7200.9 is a member of the Seagate 3.5-inch family of high-capacity desktop drives targeted at mainstream and high-performance PCs and advanced storage applications. The product enables OEMs and system builders to qualify one family of drives from a premier provider for a wide range of storage applications.
| General | |
| Device Type: | Hard drive, internal |
| Width: | 4 in |
| Depth: | 5.8 in |
| Height: | 1 in |
| Hard Drive | |
| Form Factor: | 3.5" x 1/3H |
| Capacity: | 400 GB |
| Interface Type: | ATA-100 |
| Buffer Size: | 16 MB |
| Features: | 3D Defense System |
| Compliant Standards: | S.M.A.R.T. |
| Performance | |
| Drive Transfer Rate: | 100 MBps (external) |
| Seek Time: | 11 ms (average) |
| Average Latency: | 4.16 ms |
| Spindle Speed: | 7200 rpm |
| Reliability | |
| Non-Recoverable Errors: | 1 per 10^14 |
| Start / Stop Cycles: | 50,000 |
| Expansion / Connectivity | |
| Interfaces: | 1 x ATA-100, 40 pin IDC |
| Compatible Bays: | 1 x internal, 3.5" x 1/3H |
| Miscellaneous | |
| Compliant Standards: | RoHS |
| Manufacturer Warranty | |
| Service & Support: | 5 years warranty |
| Environmental Parameters | |
| Min Operating Temperature: | 32 °F |
| Max Operating Temperature: | 140 °F |
| Shock Tolerance: | 63 g @ 2ms (operating) / 350 g @ 2ms (non-operating) |
