VERTIV
VERTIV AS3A0NCUGNNXLKB Liebert APS AS3 Series - UPS - AC 200/208/220/230/240 V - 4.5 kW - 5000 VA - 1-phase - Ethernet 10/100, RS-485 - output connectors: 1
Mfg Part Number: AS3A0NCUGNNXLKB , Item #: 3985819
Special Note: May 18, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.

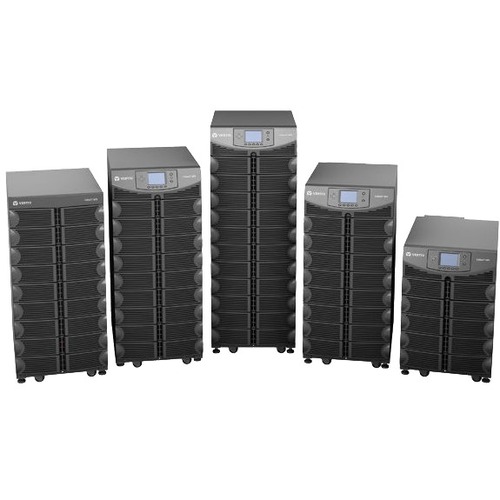

The Vertiv Liebert APS 5kVA Scalable to 15kVA N+1 208V Modular UPS (AS3A0NCUGNNXLKB) is an online double conversion UPS with up to 5 minutes full-load runtime designed for room or row-based applications. It offers redundancy and flexibility for the future while ensuring maximum power availability to your critical systems. The APS modules are hot-swappable FlexPower assemblies and battery modules that are quickly and easily installed or replaced without disrupting power. The addition of power capacity or battery modules as needed or pay as you grow design allows for better CAPEX/OPEX budget management. With high energy efficiency of up to 92%, it supports sustainability and reduces the total cost of ownership (TCO). It has intelligent battery management and can operate in a temporary overload state up to 200% load. For remote management and environmental monitoring, a Liebert IntelliSlot Unity Card (IS-UNITY-DP) comes factory installed for FREE Power Insight Software, and enables compatibility with Vertiv environmental monitoring sensors.
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | AS3A0NCUGNNXLKB |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Liebert |
| Product Line | APS |
| Product Name | APS AS3 5kVA Scalable to 15kVA N+1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hard Wire 3-wire |
| Phase | Single Phase |
| Application/Usage | Mission Critical Equipment |
| Power Description | |
| Load Capacity (VA) | 5000 VA |
| Load Capacity (Watt) | 4500 W |
| Input Voltage | 230 V AC |
| Input Voltage Range | 120 V AC - 280 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Controls/Indicators | |
| Status Indicators | LCD Display |
| Interfaces/Ports | |
| Serial Port | Yes |
| VGA | No |
| Modem (RJ-11) | No |
| Network (RJ-45) | No |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Hot Swappable | Yes |
| Environmental Conditions | |
| Environmental Sensors | Humidity Sensor |
| Environmental Sensors | Temperature Sensor |
| Environmental Sensors | Leak Detection Sensor |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 27" |
| Width | 17" |
| Depth | 32" |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 28.30 lb |
| Miscellaneous | |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards |
|
| Software Included | Power Insight 2.2 |
| Energy Star | No |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 5 Year |
