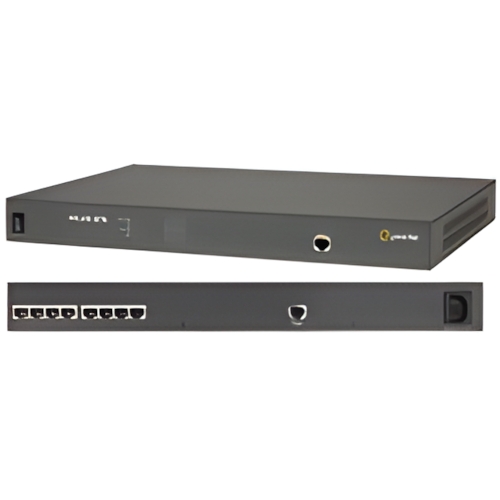

04030444 Perle IOLAN STS16

Engineers and Project Managers that require a cost effective serial RS232-to-Ethernet 1U rack solution that maintains serial device protocol integrity across Ethernet must consider the IOLAN STS Rack. Having the highest performance processor available along with Perle's unique TrueSerial™ technology, the IOLAN STS Rack will provide the most authentic serial connections across Ethernet.

Ideal for

• Engineers and Project Managers requiring a high performance serial to Ethernet interface for 4 to 24 serial RS232 based devices. Connect to serial based applications over Ethernet
• IT Professionals requiring a cost-effective terminal server or serial console server for out of band management of IT equipment located in smaller data centers or remote sites

General Information
Manufacturer	Perle Systems, Inc
Manufacturer Part Number	04030444
Manufacturer Website Address	http://www.perle.com
Brand Name	Perle
Product Line	IOLAN
Product Series	STS
Product Model	STS16
Product Name	IOLAN STS16 Terminal Server
Product Type	Terminal Server
Processor & Chipset
Processor Speed	400 MHz
Memory
Standard Memory	64 MB
Media & Performance
Media Type Supported	Twisted Pair
Network & Communication
Ethernet Technology	Gigabit Ethernet
Network Standard	10/100/1000Base-T
Interfaces/Ports
Network (RJ-45)	Yes
Phone Line (RJ-11)	No
Network (RJ-11)	No
USB	No
Serial Port	Yes
Parallel Port	No
Centronics Port	No
Management Port	Yes
PoE (RJ-45) Port	No
Number of Serial Ports	16
Power Description
Input Voltage	240 V AC
Physical Characteristics
Product Color	Black
Form Factor	Rack-mountable
Height	1.8"
Width	17.1"
Depth	10.4"
Weight (Approximate)	6.83 lb
Miscellaneous
Package Contents	IOLAN STS16 Terminal Server CD Quick Start Guide RJ-45 TO DB9M Adapter
Certifications & Standards	FCC Part 15A, CE, CAN/CSA 22.2, UL 60950, EN 55022 Class A, EN 55024 Class A
Country of Origin	Canada
Warranty
Limited Warranty	Lifetime
Additional Warranty Information	The Perle IOLAN STS16 is backed by the best service and support in the industry including Perle's unique lifetime warranty. Since 1976 Perle has been providing its customers with networking products that have the highest levels of performance, flexibility and quality.

Mechanical
Dimensions: WxHxD (mm)	264 x 434 x 44
Mounting	Rack Mount
Enclosure	Metal
Interface
Serial interface	RS232
Serial interface number of ports	16
Serial Interface type of connector	RJ45
Network interface	2 Port Gigabit Connector
Network interface number of ports	2
Network interface type of connector	RJ45
Power
Power Input Type	-
Operating Supply Voltage	48 VDC
Power Consumption	10W
Reliability
Operating Temperature	0 to 55C
Isolation Protection	-
Surge Protection	-
Standards and Certifications	Safety UL 60950-1, EN 60950-1, EMC CE, FCC, EMI EN 55022 Class A, FCC Part 15 Subpart B Class A, EMS EN 55024

For serial to Ethernet applications, the IOLAN STS is the most advanced series of multi-port terminal servers available. Delivering the highest performance in a 1U form factor, an IOLAN STS offers robust security, flexibility and next generation IP technology, ideal for applications that require remote serial device communication, data capture or monitoring. Available in 4, 8, 16 and 24 port sizes, the IOLAN STS series has the right fit for your serial application needs.

Product Type:	Terminal Server
Flow Control:	Hardware Flow Control
Functions:	The IOLAN STS16 is ideal for connecting serial based COM port, UDP or TCP socket based applications to remote devices. Perle's TruePort V5 re-director provides fixed TTY or COM ports to server based applications enabling communication with remote devices connected to Perle device servers either in encrypted or clear text modes. You can also tunnel serial data between devices across an IP network.

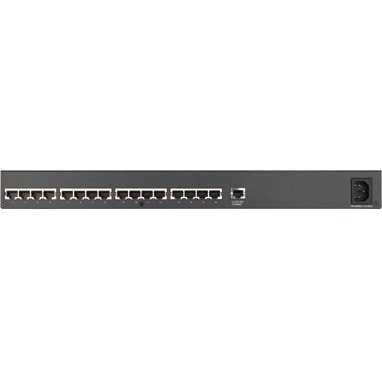

Interfaces/Ports:	16 x RJ-45
Management:	Web browser or secure web browser via https(SSL/TLS ), Perle DeviceManager software to managesingle or multiple device servers,CLI -Telnet, SSH, shared console port,IOLAN+ configuration mode,Event notification via emailSNMP, MIB II, Perle MIB, read and writeCapabilities,SYSLOG,Port Buffering-local or 3DES encrypted toNFS server
Protocols:	TCP/IP ARP RARP UDP ICMP BootP DHCP TFTP Telnet Reverse Telnet DNS HTTP WINS PPP HTTPS SSH CSLIP LPD CIDR SSH v2 SMTP PAP/CHAP
Security Features:	SSHV1 and SSHV2,SSL V3.0/TLS V1.0, SSL V2.0,SSL Server and SSL client mode capability,Encryption: AES (256/192/128), 3DES,DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2),Hashing Algorithms: MD5, SHA-1,RIPEMD160, SHA1-96, and MD5-96,Key exchange: RSA, EDH-RSA, EDH-DSS, ADH X.509Certificate verification: RSA, DSACertificate authority (CA) list, Local database,RADIUS Authentication and Accounting,TACACS+, LDAP, NIS, Kerberos, RSA SecureID-agent or via RADIUSIP Address filtering,Disable unused daemons
Processor:	MPC8349E Motorola 400MHz
Standard Memory:	64MB RAM
Maximum Memory:	16MB Flash Memory
Status Indicators:	Power/ReadyLink status/Lan SpeedNetwork Link activitySerial : Tx and Rx data
Input Voltage:	100 V AC to 240 V AC
Temperature:	32 °F (0.0 °C) Up to 131 °F (55.0 °C)
Package Contents:	CD,Quick Start Guide, RJ-45 TO DB9M Adapter,
Certifications & Standards:	FCC Part 15A, CE, CAN/CSA 22.2, UL60950, EN 55022 Class A, EN 55024 Class A
Color:	Black
Shipping Dimensions :	2.9" Height x 8.0" Width x 12.0" Depth
Standard Warranty:	Lifetime
Additional Warranty Information:	The Perle IOLAN STS16 is backed by the best service and support in the industryincluding Perle's unique lifetime warranty. Since 1976 Perle has been providing itscustomers with networking products that have the highest levels of performance,flexibility and quality.
