CISCO

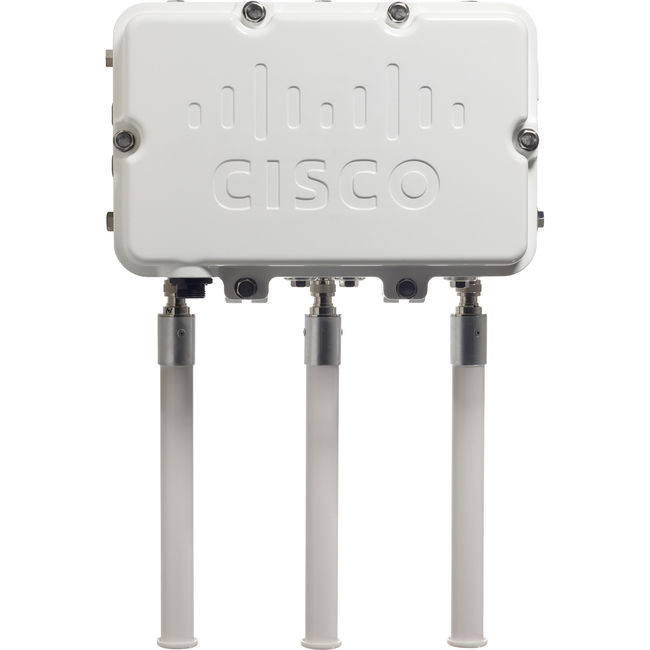

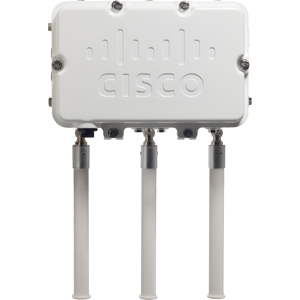

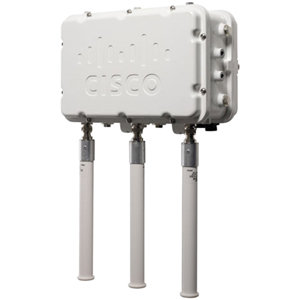

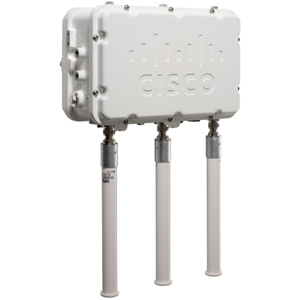

CISCO AIR-CAP1552I-A-K9 802.11N OUTDOOR MESH ACCESS POINT INT. A

Mfg Part Number:  AIR-CAP1552I-A-K9
Image may not reflect the actual item.
Price: $3,198.24 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jul 02, 2025
No Sales Tax except these states
, PO and Wire.

Flexible, High-Performance Mesh

The Cisco Aironet 1550 Series Outdoor Access Point offers a flexible, secure, and scalable mesh platform that is part of the Cisco Unified Wireless Network and the Cisco Service Provider Wi-Fi solution. It offers high-performance mobility across large metropolitan-sized areas and enterprise campuses, manufacturing yards, and mining pits. Carrier-grade design allows service providers to take advantage of Wi-Fi for next-generation mobile data offloads. The Cisco Aironet 1550 Series provides high-performance device access through improved radio sensitivity and range with 802.11a/b/g/n multiple-input multiple-output (MIMO) technology, with two spatial streams. Multiple uplink and power options are available. The 802.3af-compliant, Power-over-Ethernet (PoE) interface makes it easy to connect IP devices, such as IP video cameras. NEMA Type 4X enclosures help ensure a robust system that can withstand demanding environments. To help ensure uptime for mission-critical applications even in the event that electrical power becomes unavailable, the Cisco Aironet 1550 Series offers an internal battery for backup power.

Main Specification
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number AIR-CAP1552I-A-K9
Manufacturer Website Address http://www.cisco.com
Brand Name Cisco
Product Line Aironet
Product Series 1550
Product Model 1552I
Product Name Aironet 1552I Integrated Antenna Access Point
Product Type Wireless Access Point
Technical Information
Wireless LAN Standard IEEE 802.11n
ISM Band Yes
UNII Band Yes
ISM Minimum Frequency 2.40 GHz
ISM Maximum Frequency 2.48 GHz
UNII Minimum Frequency 5.28 GHz
UNII Maximum Frequency 5.83 GHz
Total Number of Antennas 3
Antenna Gain (Isotropic) 4 dBi
Antenna Gain (Isotropic) 2 dBi
Antenna Type Omnidirectional Antenna
Wireless Transmission Speed 300 Mbit/s
Wireless Security
  • WPA
  • WPA2
  • AES
  • TKIP
  • VPN Pass-through
  • EAP-PEAP
  • EAP-TLS
  • EAP-TTLS
  • LEAP
  • L2TP
  • IPSec
  • MAC Address Filtering
  • IEEE 802.11i
  • IEEE 802.1x
Features MIMO Technology
Features Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology Ethernet
Ethernet Technology Gigabit Ethernet
Ethernet Technology Fast Ethernet
Number of Network (RJ-45) Ports 1
Network (RJ-11) No
PoE (RJ-45) Port No
VGA No
HDMI No
Audio Line Out No
Serial Port No
USB No
Powerline No
Management Port No
Power Description
Input Voltage 12 V DC
Physical Characteristics
Form Factor Pole-mountable
Height 5.6"
Width 12.3"
Depth 8.6"
Weight (Approximate) 14.11 lb
Miscellaneous
Certifications & Standards
  • ANSI/IEEE C62.41
  • EN61000-4-5 Level 4 AC Surge Immunity
  • EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity
  • EN61000-4-3 Level 4 EMC Field Immunity
  • EN61000-4-2 Level 4 ESD Immunity
  • EN60950 Overvoltage Category IV
  • FCC Part 15.247, 15.407
  • FCC Bulletin OET-65C
  • RSS-210
  • RSS-102
  • AS/NZS 4268.2003
  • EN 300 328
  • EN 301 893
  • FCC part 15.107, 15.109
  • ICES-003
  • EN 301 489-1, -17
  • IEEE 802.11n
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11a
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.11i
  • IEEE 802.1x
Warranty
Limited Warranty 3 Year
