CISCO

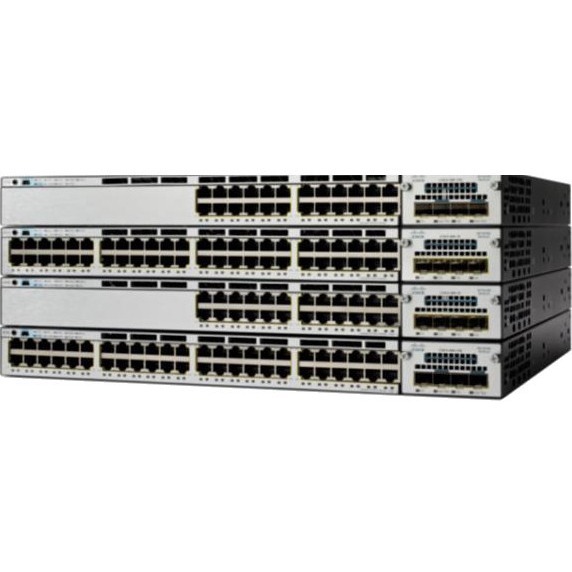

CISCO WS-C3750X-48U-S CATALYST 3750X 48 PORT UPOE IP BASE
Mfg Part Number: WS-C3750X-48U-S , Item #: 3817552
, PO and Wire.
The Cisco® Catalyst® 3750-X and 3560-X Series Switches are an enterprise-class lines of stackable and standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower (available only on the Catalyst 3750-X), IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst 3750-X Series with StackWise® Plus technology provides scalability, ease of management and investment protection for the evolving business needs. The Cisco Catalyst 3750-X and 3560-X enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3750X-48U-S |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Series | 3750-X |
| Product Model | WS-C3750X-48U-S |
| Product Name | Catalyst WS-C3750X-48U-S Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Token Ring Port | No |
| LRE Port | No |
| USB | Yes |
| Number of PoE+ (RJ-45) Ports | 48 |
| Stack Port | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| Media & Performance | |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10/100Base-TX |
| I/O Expansions | |
| Total Number of Expansion Slots | 1.0 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Management |
|
| Memory | |
| Standard Memory | 256 MB |
| Memory Technology | DRAM |
| Flash Memory | 64 MB |
| Reliability | |
| MTBF | 184120 Hour |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.8" |
| Width | 19.5" |
| Depth | 17.5" |
| Weight (Approximate) | 16.70 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | IEEE Standards:
EMI and EMC Compliance:
|
| System Requirements |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
