ALTRONIX

ALTRONIX T1RHW3F4 ALTX/HONEYWELL RACK/4-DOOR SYS

Mfg Part Number:  T1RHW3F4
Image may not reflect the actual item.
Price: $1,257.93 + Free Shipping
Quantity:
More to Come
Last Updated: Jul 08, 2026
No Sales Tax except these states
, PO and Wire.

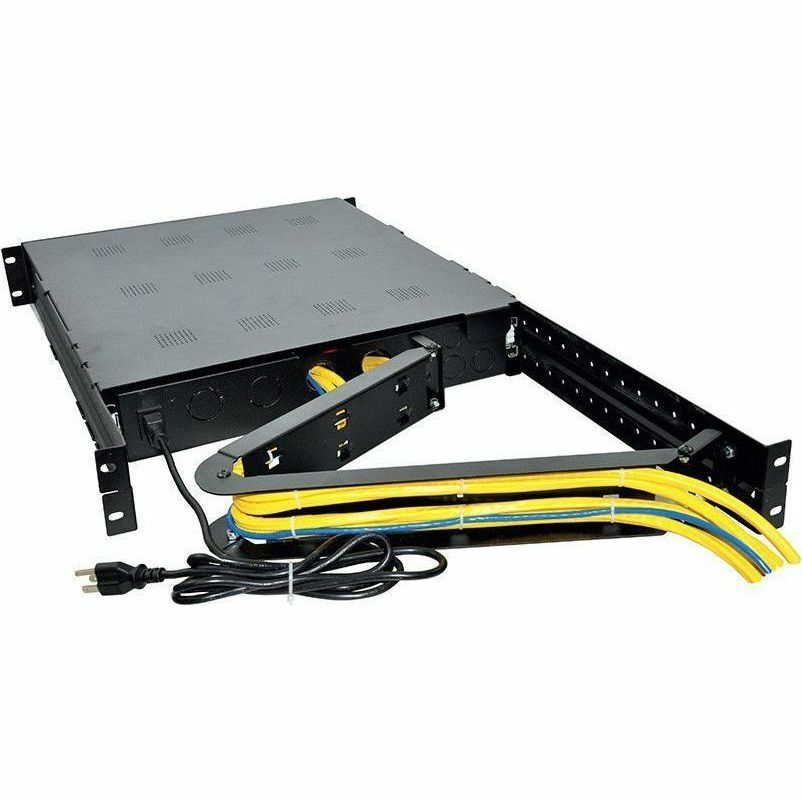

Altronix T1RHW3F4 Trove Rack kit is pre-assembled and consists Trove1R enclosure and THW1R Altronix/Honeywell backplane with 12VDC or 24VDC (factory set at 24VDC) @ 6A power supply/charger, 12VDC voltage regulator, eight (8) output fused dual output power distribution module and four (4) output fused access control module. This kit also accommodates various combinations of Honeywell boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Main Specification
General Information
Manufacturer Altronix Corporation
Manufacturer Part Number T1RHW3F4
Manufacturer Website Address http://www.altronix.com
Brand Name Altronix
Product Name 4-Door Altronix/Honeywell Access and Power Integration Kit
Product Type Access/Power Integration Kit
Technical Information
Recommended Usage Door
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 120.2°F (49°C)
Minimum Storage Temperature -4°F (-20°C)
Maximum Storage Temperature 158°F (70°C)
Physical Characteristics
Dimensions
  • Dimensions: 19"Wx3.25"Hx26.5"D(482.6 mm W x 82.6 mm H x 673.1 mm D).
Weight (Approximate)
  • Product Weight: 20 Lbs.(9.07 kg).
Miscellaneous
Package Contents
  • 1 x Altronix/Honeywell Access and Power Integration Rack Mount Enclosure with Backplane, Trove1 Rack Series
  • 1 x Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
  • 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
  • 1 x Dual Input Power Distribution Module, 8 Fused Outputs
  • 1 x Access Power Controller, 4 Fused Relay Outputs, FAI, Board
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty Lifetime
