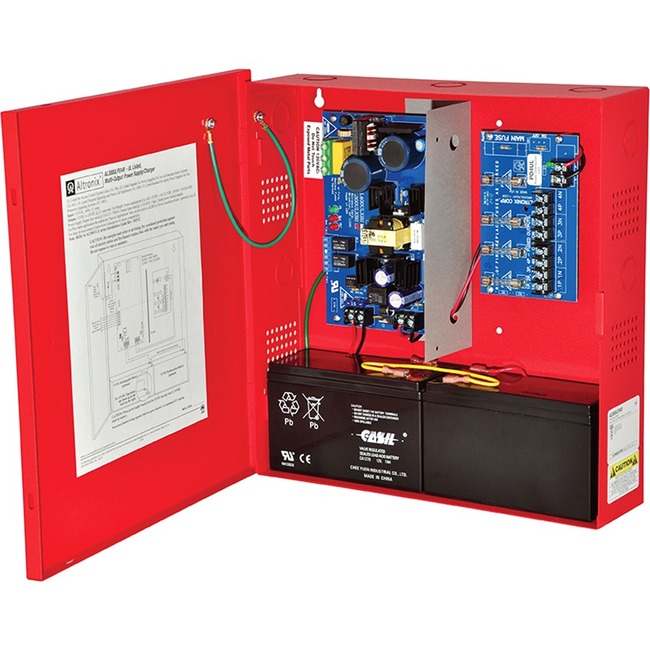

AL400ULPD4R is a multi-output power supply/charger that converts a 115VAC/60Hz input into four (4) Class 2 Rated 12VDC or 24VDC power-limited outputs.
Main Specification
| General Information | |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | AL400ULPD4R |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Altronix |
| Product Model | AL400ULPD4R |
| Product Name | AL400ULPD4R Proprietary Power Supply |
| Product Type | Proprietary Power Supply |
| Technical Information | |
| Protection Type | Short Circuit |
| Protection Type | Fuse |
| Protection Type | Thermal Overload |
| Power Description | |
| Input Voltage Type | AC |
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Input Voltage Range | 115 V AC - 250 V AC |
| Output Voltage | 12 V DC |
| Output Voltage | 24 V DC |
| Output Voltage Detail | 24 V DC @ 4 A |
| Output Voltage Detail | 12 V DC @ 3 A |
| Input Current | 3.5 A @ 110V |
| Input Current | 3.5 A @ 220V |
| Output Current | 4 A |
| Output Current | 3 A |
| Controls/Indicators | |
| Status Indicators |
|
| Physical Characteristics | |
| Form Factor | Wall Mount |
| Height | 13.5" |
| Width | 13" |
| Depth | 3.3" |
| Weight (Approximate) | 8.65 lb |
| Miscellaneous | |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
