ALTRONIX
ALTRONIX MAXFIT77FE 24VDC@20A P/S MAXFIT ENCL
Mfg Part Number: MAXFIT77FE , Item #: 3811850
Image may not reflect the actual item.
Price: $753.58
+ Free Shipping
Quantity:
More to Come
Last Updated: Sep 11, 2025
No Sales Tax except these states
, PO and Wire.

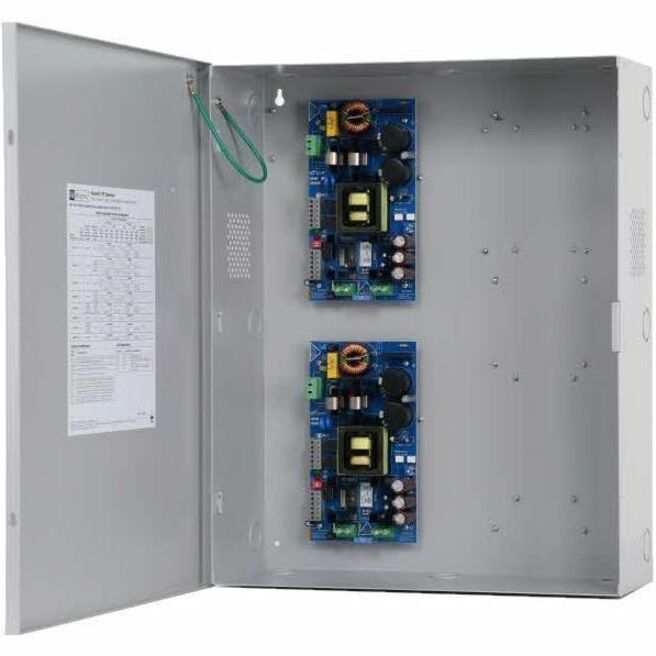

Altronix MaxFit Dual Power Supplies Expandable Power Systems provide system designers and installers with optimum power choices and the highest levels of versatility in a more compact and economical enclosure. Units provide 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers and include AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.
Main Specification
| General Information | |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | MAXFIT77FE |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Maximal |
| Product Line | MaxFit |
| Product Series | FE |
| Product Model | MAXFIT77FE |
| Product Name | MaxFit FE MAXFIT77FE Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Protection Type | Thermal |
| Protection Type | Short Circuit |
| Features | Compact |
| Features | LED indicator |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage | 120 V AC |
| Output Voltage | 24 V DC |
| Output Voltage | 12 V DC |
| Output Voltage Detail | 24 V DC @ 10 A |
| Output Current | 10 A |
| Input Frequency | 60Hz |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 120.2°F (49°C) |
| Physical Characteristics | |
| Form Factor | Enclosure |
| Height | 20.5" |
| Width | 16.5" |
| Depth | 6.3" |
| Weight (Approximate) | 21.70 lb |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
