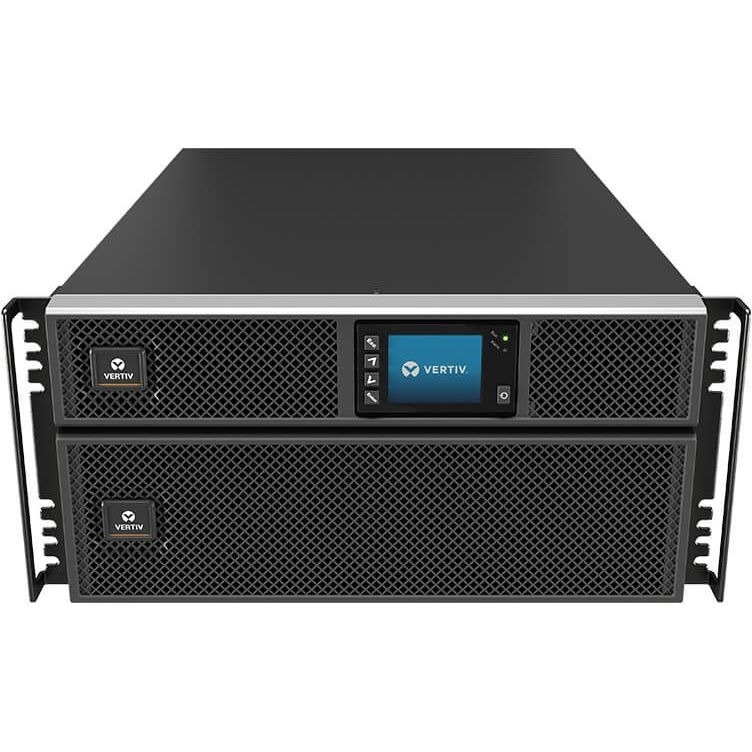

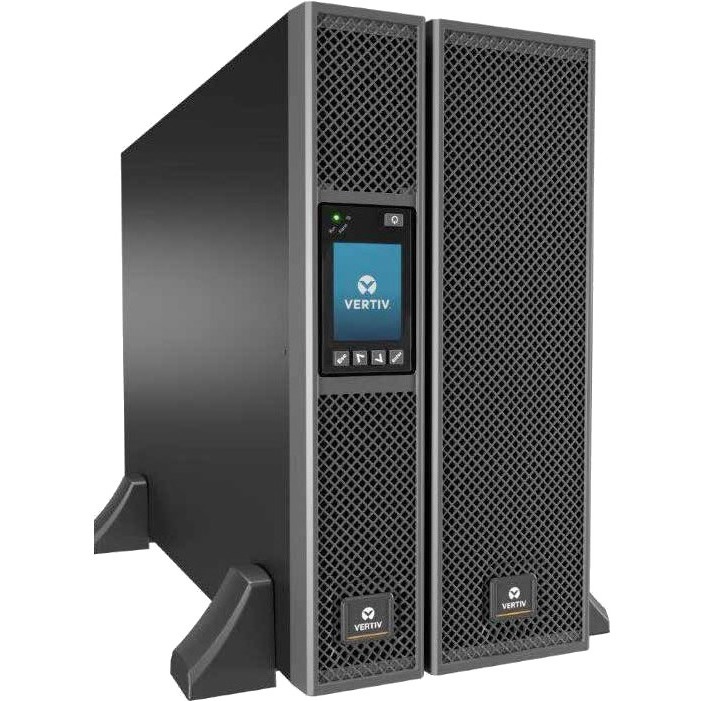

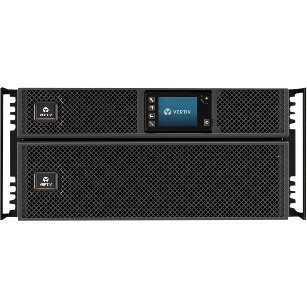

VERTIV GXT5-10KIRT5UXLN Liebert GXT5 - UPS (rack-mountable / external) - 230 V - 10000 Watt - 10000 VA - 5U
Mfg Part Number: GXT5-10KIRT5UXLN , Item #: 3809412
Special Note: Apr 27, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.
The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 10kVA/10kW online double conversion UPS offers continuous power conditioning in centralized and edge locations. With power factor (1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU120 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 230V in/ 230 out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Dist This offer is not available in conjunction with any other offer/discount.ributor's product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer.
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5-10KIRT5UXLN |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Liebert |
| Product Series | GXT5 |
| Product Model | GXT5-10KIRT5UXLN |
| Product Name | GXT5 UPS-10kVA/10kW/230V|Online Rack Tower Energy Star |
| Product Condition | New |
| Packaged Quantity | 1 Pack |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Terminal Block |
| Receptacle Type | IEC 320 EN 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Detail | 4 x IEC 320 EN 60320 C13 |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage | Business |
| Application/Usage | IT Equipment |
| Application/Usage | Retail & Wholesale |
| Application/Usage | Network |
| Application/Usage | Edge Computing |
| Application/Usage | Finance |
| Application/Usage | Banking |
| Application/Usage | Mission Critical Equipment |
| Application/Usage | Telecommunication |
| Application/Usage | Healthcare |
| Power Description | |
| Load Capacity (VA) | 10000 VA |
| Input Voltage | 230 V AC |
| Input Voltage Range | 115 V AC - 288 V AC |
| Output Voltage | 220 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 200 V AC |
| Output Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Management | |
| Network Management | SNMP/Webcard |
| Bypass Switch | Internal |
| Bypass Switch | Automatic & Manual |
| Emergency Power OFF | Yes |
| Controls/Indicators | |
| Status Indicators | LED/Full Color Graphic LCD |
| Interfaces/Ports | |
| Serial Port | Yes |
| Modem (RJ-11) | No |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 16 |
| Battery Characteristics | Valve-regulated/Non-spillable |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 7 Minute |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Sound Emission | 55 dB |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 5U |
| Height | 8.5" |
| Width | 16.9" |
| Depth | 24.8" |
| Weight (Approximate) | 164.24 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
