VERTIV

VERTIV AS6A0NCUGNNXLKB APS 5KVA SCALABLE TO 20KVA N+1

Mfg Part Number:  AS6A0NCUGNNXLKB

Special Note: Apr 20, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.

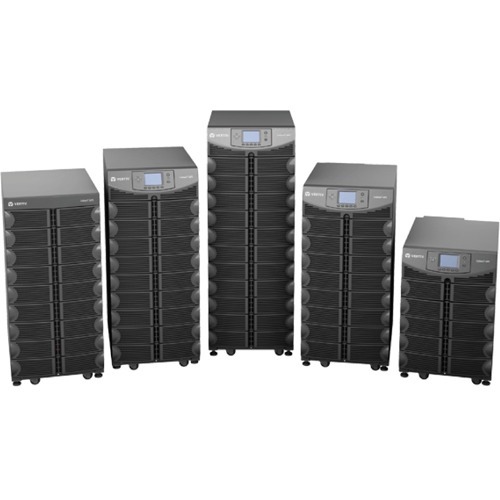

Image may not reflect the actual item.
Price: $8,063.38 + Free Shipping
Quantity:
More to Come
Last Updated: Oct 17, 2026
No Sales Tax except these states
, PO and Wire.
The Vertiv Liebert APS is a modular online double conversion UPS, offering the highest level of power conditioning and power protection for critical IT systems. Continuous power conditioning, zero transfer time, pure sinewave output and scalable runtime make it ideally suited to protect critical infrastructure in both centralised and edge network applications. The modular design offers maximum power availability with built-in redundancy for fault tolerance.

More from the Manufacturer

Main Specification
General Information
Manufacturer Vertiv
Manufacturer Part Number AS6A0NCUGNNXLKB
Manufacturer Website Address http://www.vertiv.com/
Brand Name Vertiv Liebert
Product Line APS
Product Model AS6A0NCUGNNXLKB
Product Name APS 5kVA Scalable to 20kVA N+1
Product Type Double Conversion Online UPS
Technical Information
Plug/Connector Type Hard Wire 4-wire (L-L-N-G)
Phase Single Phase
Application/Usage Mission Critical Equipment
Power Description
Load Capacity (VA) 5000 VA
Input Voltage 120 V AC
Input Voltage 230 V AC
Input Voltage Range 120 V AC - 280 V AC
Input Frequency 70 Hz
Output Frequency 60 Hz
Controls/Indicators
Status Indicators

LCD Display
Interfaces/Ports
Serial Port Yes
VGA No
Modem (RJ-11) No
Network (RJ-45) No
EPO Port Yes
USB (HID Compliant) Port Yes
Battery Information
Battery Characteristics Valve-regulated
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 5 Minute
Backup/Run Time (Half Load) 16 Minute
Hot Swappable Yes
Environmental Conditions
Environmental Sensors Humidity Sensor
Environmental Sensors Leak Detection Sensor
Environmental Sensors Temperature Sensor
Maximum Operating Temperature 104°F (40°C)
Physical Characteristics
Height 49"
Width 17"
Depth 34"
Form Factor Rack/Tower
Miscellaneous
Additional Information
  • Auto Shutdown Software: Trellis™ Power Insight
  • Extra Power for Future Expansion: 20kVA/18kW N+1
  • Relative Humidity: 0 - 95%, non-condensing
  • Altitude: 3000 (10000) @ 25°C (77°F)
  • Battery Capacity: 36W @ 15min-rate to 1.67V per cell @ 25°C (77°F)
  • Maximum Charge Current (full load): Power module internal charger: 1.8A / Charger module: 10A
  • Nominal Voltage: 144 VDC
  • Output Voltage: 200/100 - 240/120VAC
Certifications & Standards Compliant Safety Standards:
  • IEC/EN/AS 62040-2 Cat 2
  • CISPR22 Class A
  • FCC Part 15 Class A
  • IEC/EN/AS 62040-1:2008
  • UL 1778 4th Ed
  • CSA 22.2 No. 107.1
Environmentally Friendly Yes
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance Restriction of Hazardous Substances (RoHS) 2
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 2 Year
