Designed for datacenters and other electrically demanding applications, the CyberPower MBP63A2 Maintenance Bypass Power Distribution Unit (MBP PDU), allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS. The MBP63A2 provides 208V nominal output to (1) NEMA L6-20R, (1) NEMA L6-30R and (1) Hardwire Terminal Block receptacle.
Depending on UPS model, either a 3.3-foot AC cord or hardwire terminal block connects to the output power of the UPS. The UPS draws input power from the MBP63A2 separate from the outlets or terminal block for connected devices. When the switch on the front of the MBP63A2 is turned from Normal to Bypass, or from Bypass to Normal, the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active.

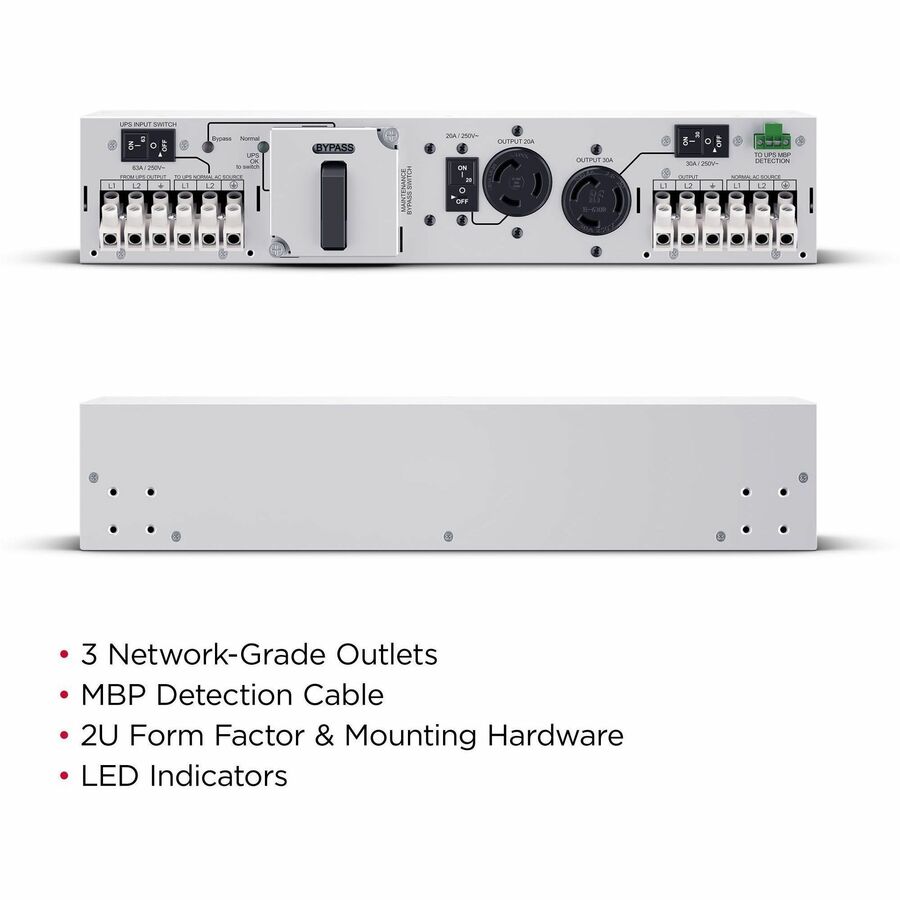

Rugged, industrial-grade metal housing protects the MBP63A2. With a 2U form factor, this PDU can be mounted horizontally or vertically in a standard server rack, on a wall or in a tower configuration. The MBP63A2 is UL and RoHS compliant. A three-year limited warranty covers the PDU.
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | MBP63A2 |
| Manufacturer Website Address | https://www.cyberpowersystems.com |
| Brand Name | CyberPower |
| Product Model | MBP63A2 |
| Product Name | MBP63A2 208 VAC 63A Maintenance Bypass |
| Product Condition | New |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Maintenance Bypass |
| Plug/Connector Type | Hardwired |
| Plug/Connector Detail | 1 x Hardwire Terminal Block |
| Receptacle Type | NEMA L6-20R |
| Receptacle Detail | 1 x NEMA L6-20R |
| Features | LED Status Indicator |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 208 V AC |
| Input Current | 63 A |
| Management | |
| Management | MBP Detection Cable 3.3 ft. |
| Physical Characteristics | |
| Product Material | Metal |
| Mounting Orientation | Horizontal/Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Cord Length | 3.30 ft |
| Height | 3.4" |
| Width | 17" |
| Depth | 4.9" |
| Weight (Approximate) | 8.80 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 113°F (45°C) |
| Minimum Operating Humidity | 0% |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | |
| Application/Usage | UPS |
| Application/Usage | Server |
| Application/Usage | Data Center |
| Application/Usage | IT Equipment |
| Compatibility | CyberPower UPS Models: |
| Certifications & Standards | UL 1778 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| UL Listed | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
