COMPREHENSIVE CABLE

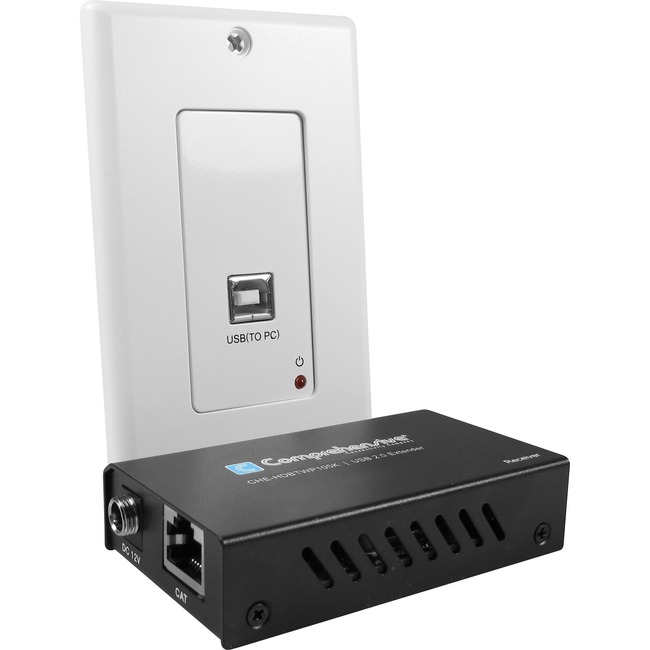

COMPREHENSIVE CABLE CHE-HDBTWP105K PRO AV/IT USB 2.0 EXTENDER KIT WALL PLATE USB 2.0 EXTENDER KIT

Mfg Part Number:  CHE-HDBTWP105K
Image may not reflect the actual item.
Price: $194.13 + Free Shipping
Quantity:
More to Come
Last Updated: Oct 06, 2025
No Sales Tax except these states
, PO and Wire.

Extend USB 2.0 High Speed Devices over a Single UTP Cable up to 328ft
Comprehensive's CHE-HDBTWP105K Wall Plate Extender kit was designed to extend high speed USB 2.0 up to 328ft over Cat5e or Cat6 cables with data transfer speeds up to 480Mbps. This product can be used as an extension for applicable USB devices such as keyboards, mice, webcams, printers and USB hard drives.

Plug & Play Installation
No additional drivers needed. You can connect your USB 2.0 devices hassle free.

Dual USB 2.0 Ports
The two high speed USB 2.0 ports allow you to connect two USB devices and use them simultaneously.

Supports POC (Power over Cable) Delivery
When connected to the power adapter at the receiver (RX) end, this unit will transit power to the wall plate transmitter to operate.

Quality You Can Count On
Since 1974, Comprehensive has been manufacturing the highest quality commercial grade solutions for AV and IT professionals. The CHE-HDBTWP105K extender kit continues that tradition with high end materials, components and quality control to ensure years of worry-free use. All components are backed by Comprehensive's 3 Year Warranty, so you can be assured of guaranteed reliability.

Main Specification
General Information
Manufacturer Comprehensive Connectivity Company
Manufacturer Part Number CHE-HDBTWP105K
Manufacturer Website Address http://www.comprehensiveco.com
Brand Name Comprehensive
Product Name Pro AV/IT USB 2.0 High Speed Single Gang Wall Plate Extender Kit up to 328ft
Product Type IR Transmitter Kit
Technical Information
Recommended Usage Hard Drive
Recommended Usage Keyboard
Recommended Usage Printer
Power Description
Input Voltage 240 V AC
Input Voltage 100 V AC
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 104°F (40°C)
Minimum Storage Temperature 50°F (10°C)
Maximum Storage Temperature 140°F (60°C)
Physical Characteristics
Color Details

Color: Wall Plate TX: White; RX Box: Black

Material Details

Housing Material: Metal and Aluminum

Dimensions

Wall Plate TX: 4.07"x1.78"x1.37"

RX Box: 3.25" x 1.94" x 0.8"

Weight (Approximate)

Weight: Wall-plate Transmitter: 0.25lb, Receiver: 0.25lb

Miscellaneous
Package Contents
  • 1 x USB 2.0 Extender Wall Plate Transmitter
  • 1 x USB 2.0 Box Receiver
  • 1 x USB 2.0 cable Type A to Type B (3ft)
  • 1 x 12V/1A Power Adapter
  • 1 x User manual
  • 1 x Single Gang US Decora face plate
  • 2 x Single Gang US Decora face plate screws
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin China
Warranty
Limited Warranty 3 Year
