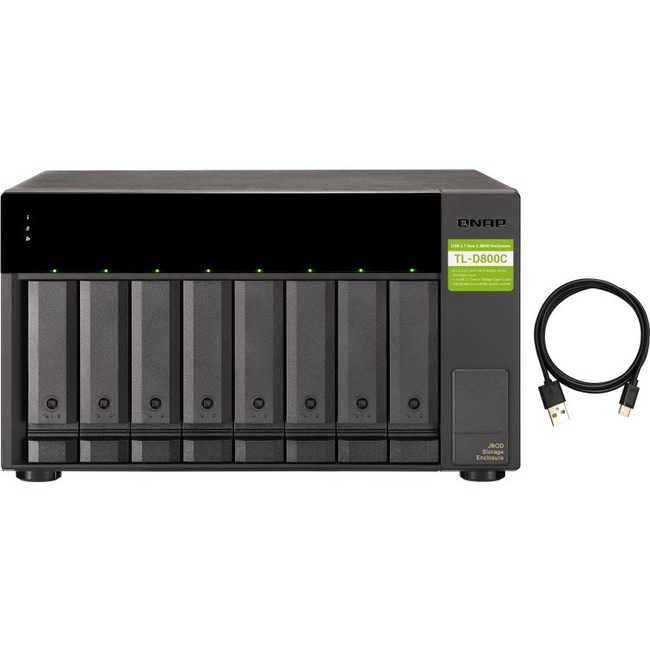

QNAP TL-D800C-US 8BAY DESKTOP USB-C 3.1 GEN2 10GBPS JBOD EXPANSION UNIT WITH

The TL-D800C JBOD storage enclosure allows you to back up and expand your QNAP NAS and computers (supports Windows and Mac). The TL-D800C features eight 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen 2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.

USB 3.2 Gen 2 Type-C connectivity provides up to 10 Gb/s data transfer speeds. The port can support USB Type-A to Type-C connection or Thunderbolt 3 Type-C connection using different cables

Lockable hard drive trays prevent accidental drive removal.

Supports SATA 6Gb/s drives for reliable read/write performance.

Flexible storage configuration and management

The TL-D800C provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using the QTS / QuTS hero Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP JBOD Manager utility on their computer.

Use the QTS / QuTS hero Storage & Snapshots Manager to configure the TL-D800C as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-D800C, you can easily expand storage capacity.

The QNAP JBOD Manager is a desktop utility for monitoring the TL-D800C on Windows®, Mac®, and Ubuntu® computers. You can quickly obtain disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates.

What you need to know

You can connect your TL-D800C to Windows®, Mac®, and Ubuntu® computers through the USB interface and use built-in utility to manage the RAID configuration.

Intelligently monitor JBOD enclosure status on PC and servers with QNAP JBOD Manager

The QNAP JBOD Manager is a desktop utility for monitoring the TL-D800C on Windows® and Mac® computers. You can quickly obtain and view information about the JBOD status, health, fan rotation speed, and check for firmware version updates. All device events are recorded, and QNAP JBOD Manager will automatically send system alert notifications to your desktop.

JBOD migration speeds up remote file transfers

Migrating a large number of small files or a single large data file by network environment can be time-consuming and consume significant network bandwidth that causes decreased work efficiency. The TL-D800C supports remote file transfer. All you have to do is set up the RAID configuration and store a large number of files. Then you can move the TL-D800C to another place and connect it with the computer or NAS to experience the device's simple plug and play feature and fast data migration.

Use TL-D800C as a high-capacity disk drive reader by setting up single disk mode

You can treat each disk in your TL-D800C as an individual storage space, and also use it as a removable drive. It can function like a high-capacity disk drive reader. When one of disk reaches data storage limitation, you can remove it and put it into a dry box. Then swap a different disk into the TL-D800C empty drive slot. After that, you can install the disk that reached full data capacity into the TL-D800C and connect it with a computer or NAS for direct file access.

Specifications

• Mfr Part Number: TL-D800C-US
• Hardware:
  • Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Audio Alert On/Off Switch: Yes
  • Form Factor: Tower
  • Host Interface: 1 x USB 3.2 Gen 2 Type-C
  • LED Indicators: HDD 1-8, Status, Link, Fan error
  • Buttons: Power switch
  • Max. number of HDDs/SSDs supported: 8
  • Hard Drive Type: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Operating temperature: 0 - 40 °C (32°F - 104°F)
  • Storage Temperature: -20 - 70°C (-4°F - 158°F)
  • Relative Humidity: 5-95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF)
  • Power Supply Unit: 250W PSU, 100 - 240V
  • Power Consumption-Operating Mode, Typical: 48.4 W
  • Fan Mode Switch: Yes (Auto, high, medium, low)
  • Fan: 2 x 120mm, 12VDC
  • Sound Level: 26.2 db(A)
  • System Warning: Buzzer
  • Kensington Security Slot: Yes
• Software:
  • Operating System: QNAP QTS / QuTS hero, Windows, Mac, Linux
  • QTS / QuTS hero: QTS 4.4.2 / QuTS hero h4.5.0 (or newer)
  • QTS QTS drive monitoring and storage pool support: Yes
  • QTS advanced drive features such as bad block scan, Erase,Performance Test, Seagate Ironwolf IHM: Yes
  • RAID migrated & expanded: Yes
  • Qtier on Enclosure: Yes
  • Utility for other platform: QNAP JBOD Manager
  • Windows: Win8 or nerwer / Server2012 R2 or newer
  • Mac: MacOS 10.13 or newer
  • Linux: Ubuntu 18.04
  • Device Info (Health/Bus type/PSU/Temperature/FAN): Yes
  • Device Temperature Warning & automatic FAN control: Yes
  • Event Log (support Export): Yes
  • Enclosure located via LED & beep: Yes
  • LCM + enclosure customizable naming: N/A
  • SATA wiring determination: N/A
• Dimensions (HxWxD): 7.41 × 12.96 × 11.08 inch
• Weight (Net): 13.62 lbs
