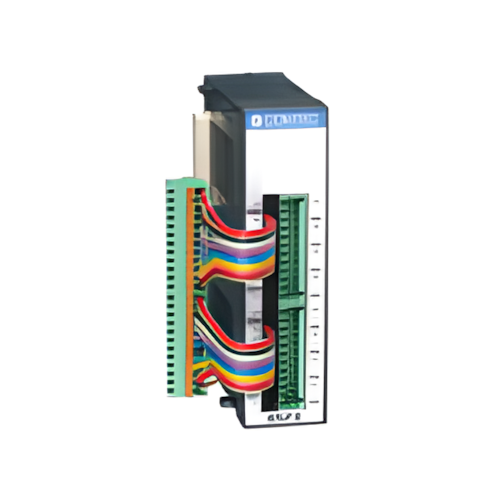

Contec Americas ATLF-8(FIT)GY Low Path Filter Module for Analog Input Modules

ATLF-8(FIT)GY is a low path filter module only for isolated type analog input modules [ADI12-8(FIT)GY]. The noise contained in an external signal is reducible.

• It is the passive filter which does not need supply of a power supply.
• External apparatus and connection are possible like ADI12-8(FIT)GY because of signal arrangement of the same interface connector as ADI12-8(FIT)GY.
• It installs next to ADI12-8(FIT)GY, and can connect easily only by connecting an exclusive cable.
• A special tool was not needed but wiring has adopted the easy screw-less connector plug.
• This module is equipped with 35mmDIN rail attachment mechanism as standard like other F&eIT series products. Moreover, since the connection with a controller unit has unique composition which carries out a stack connection on the side, it cannot use connection apparatus, such as a backplane board, but can constitute a system simply and smartly.

Electric Certification Compliancy : N/A
Environment Compliancy : RoHS Directive

F&eIT
Product function / Classification : Accessories
