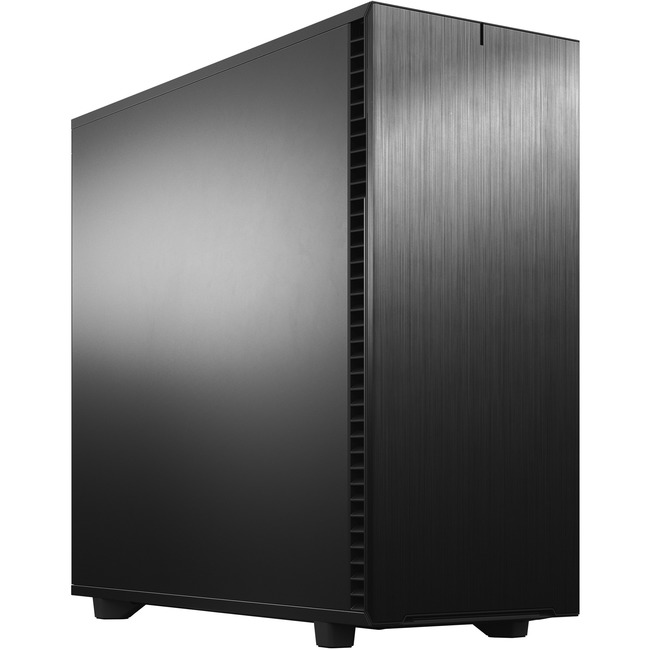

Fractal Design FD-C-DEF7X-01 Define 7 XL Black Solid /Brushed Aluminum/Steel E-ATX Silent Modular Full Tower Computer Case

Re-defining capacity.

The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use. With its dual-layout interior, industrial sound damping and massively versatile layout supporting the largest E-ATX and enterprise boards, multi-GPU setups, outlandish water loops, and almost two dozen storage devices (in Storage layout), you'll be hard pressed to find a limit to what you can do with your build in the Define 7 XL.

General Information
Manufacturer	Fractal Design
Manufacturer Part Number	FD-C-DEF7X-01
Manufacturer Website Address	http://www.fractal-design.com
Brand Name	Fractal Design
Product Line	Define 7 XL
Product Name	Define 7 XL Black Solid
Product Type	Computer Case
Technical Information
Motherboard Supported	Micro ATX
Motherboard Supported	SSI EEB
Motherboard Supported	EE-ATX
Motherboard Supported	Mini ITX
Motherboard Supported	SSI CEB
Motherboard Supported	ATX
Motherboard Supported	EATX
Number of Fans Supported	11
Number of Fans Installed	3
Installed Fan Size	5.51"
Bays
Number of External 5.25" Bays	2
Number of Internal 2.5" Bays	2
Number of Internal 2.5"/3.5" Bays	6
Number of Total Expansion Bays	10
I/O Expansions
Total Number of Expansion Slots	12
Interfaces/Ports
Total Number of USB Ports	5
Total Number of Audio In Ports	1
Total Number of Audio Out Ports	1
Power Description
Power Supply Installed	No
Number of Power Supplies Supported	1
Number of Power Supplies Installed	0
Physical Characteristics
Color Family	Black
Product Color	Black
Product Material	Anodized Aluminum
Product Material	Steel
Form Factor	Full-tower
Height	22.3"
Width	9.4"
Depth	23.8"
Weight (Approximate)	36.44 lb
Miscellaneous
Package Contents	Define 7 XL Black Solid Accessory Box User Manual Ventilated Top Panel ODD Bracket ODD Bay Cover 2 x HDD/SSD Trays
Country of Origin	China
Warranty
Limited Warranty	2 Year

Specifications

• Mfr Part Number: FD-C-DEF7X-01
• Features:

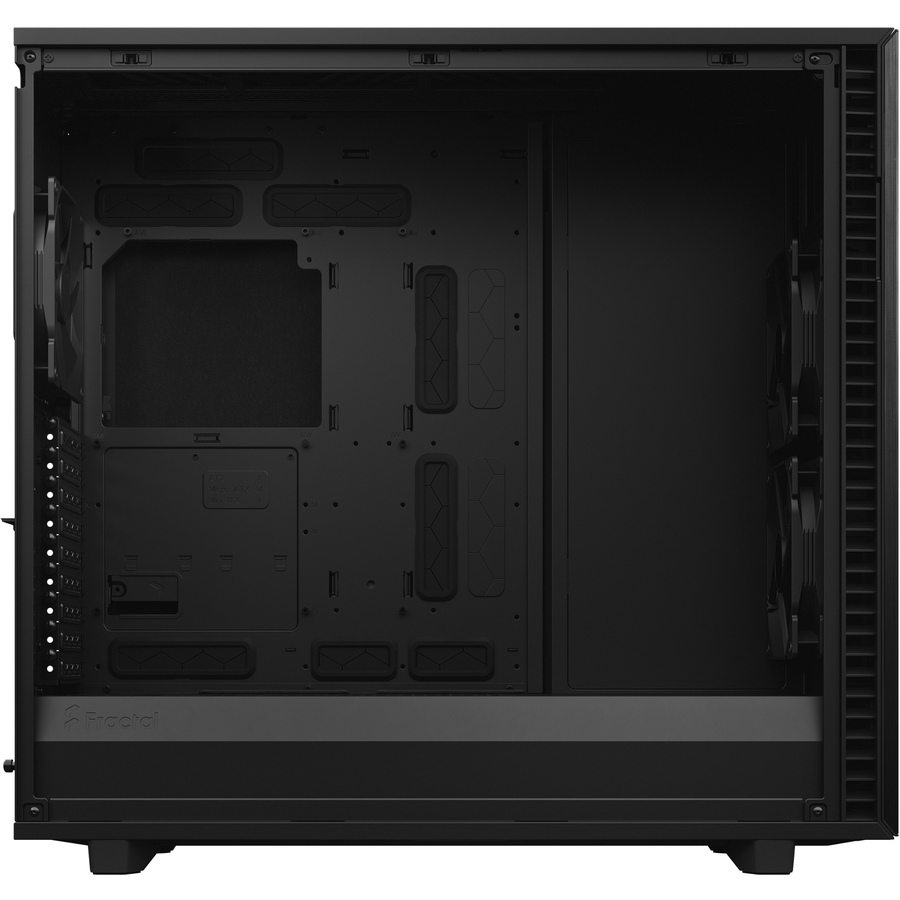

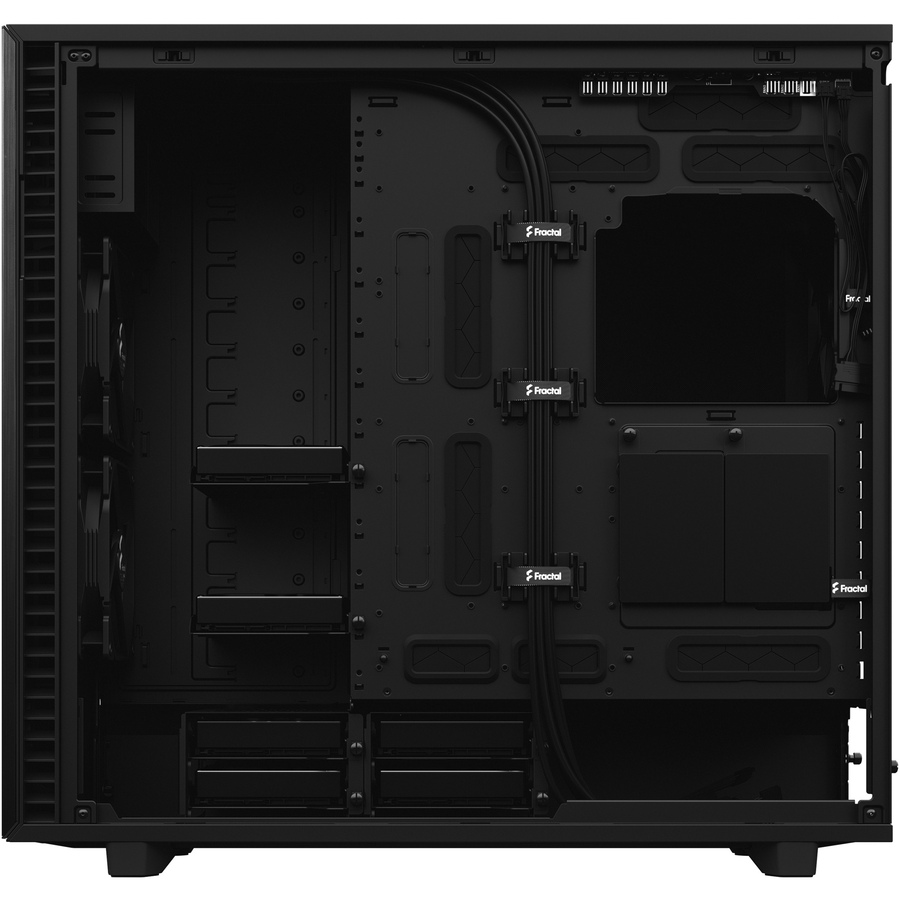

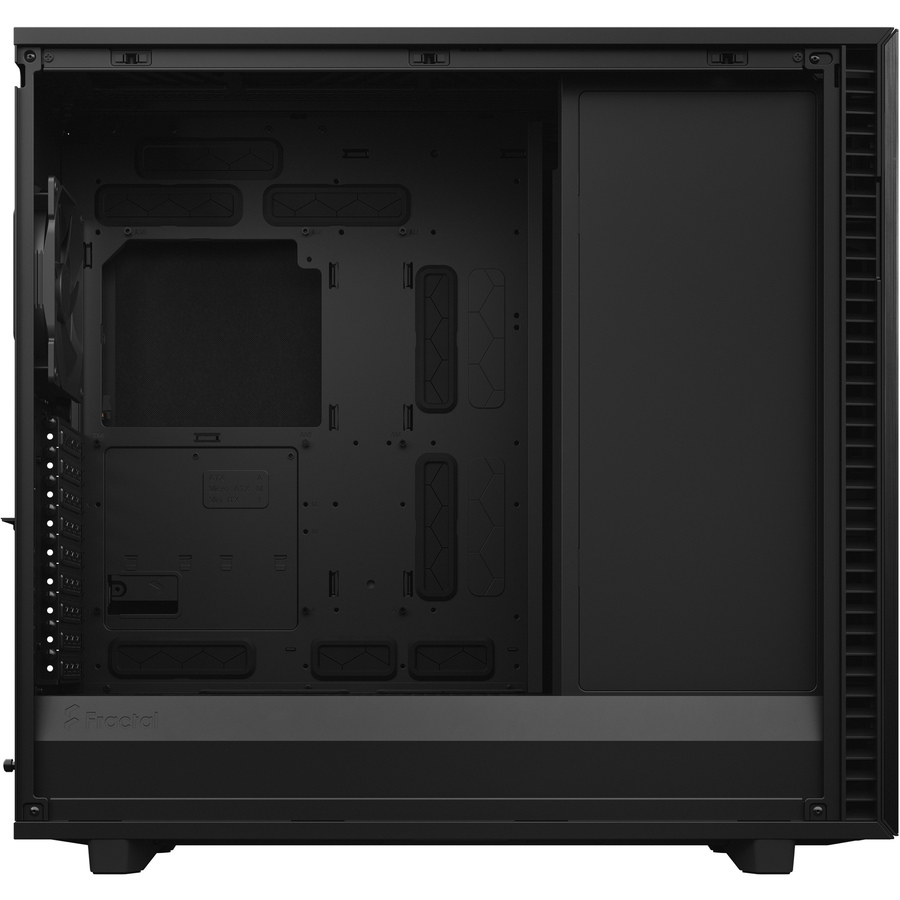

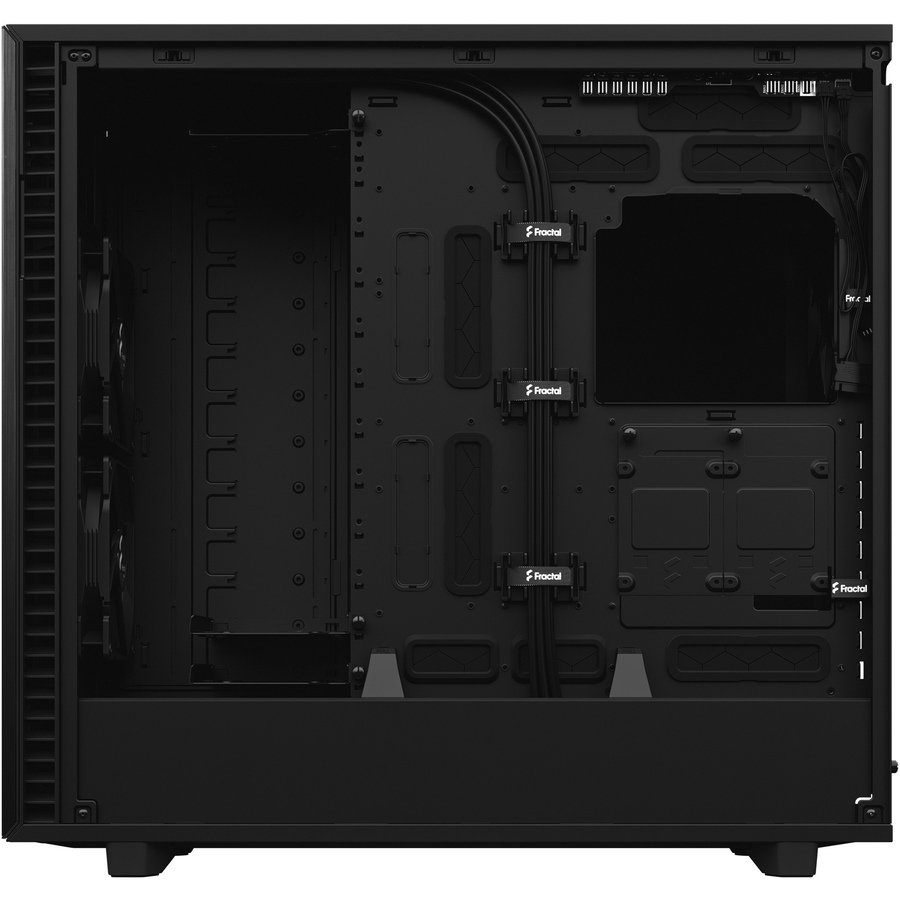

  • Dual-layout interior easily fits motherboards up to E-ATX and SSI-EEB

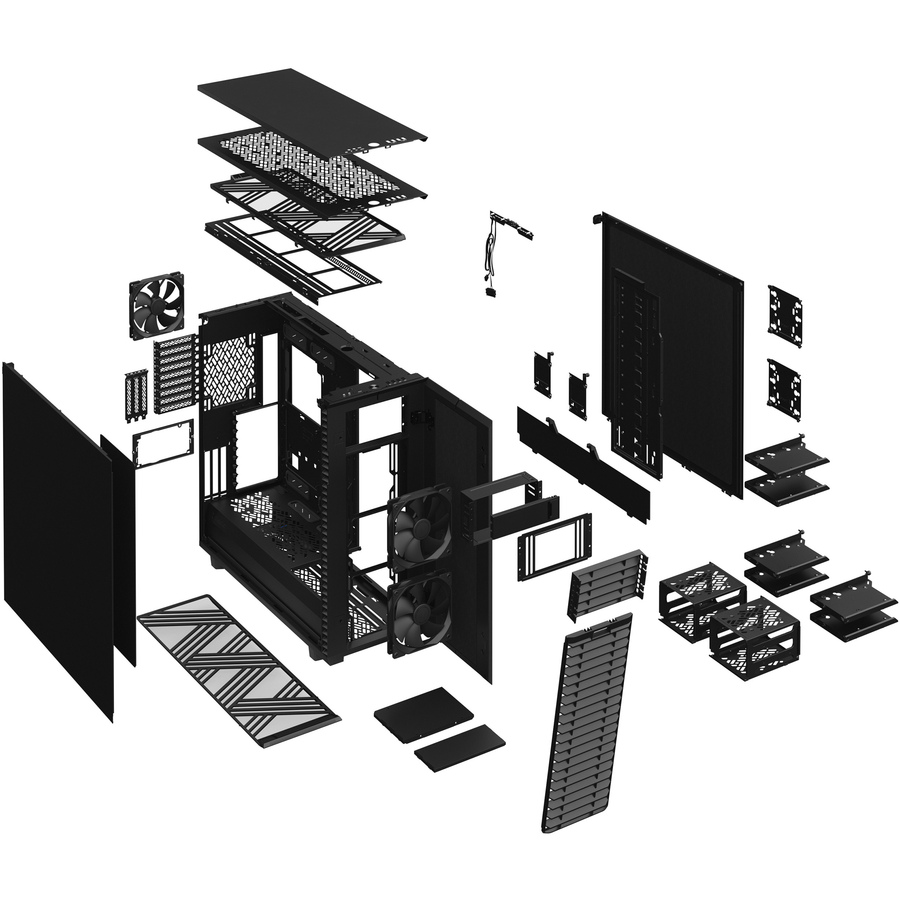

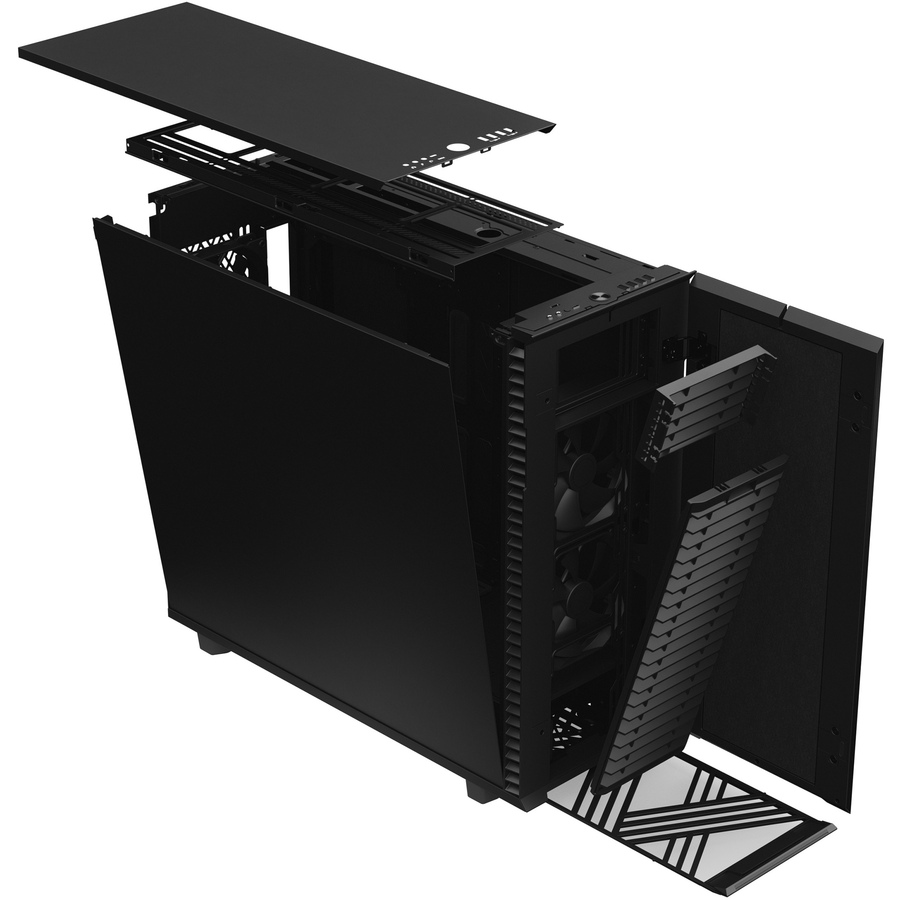

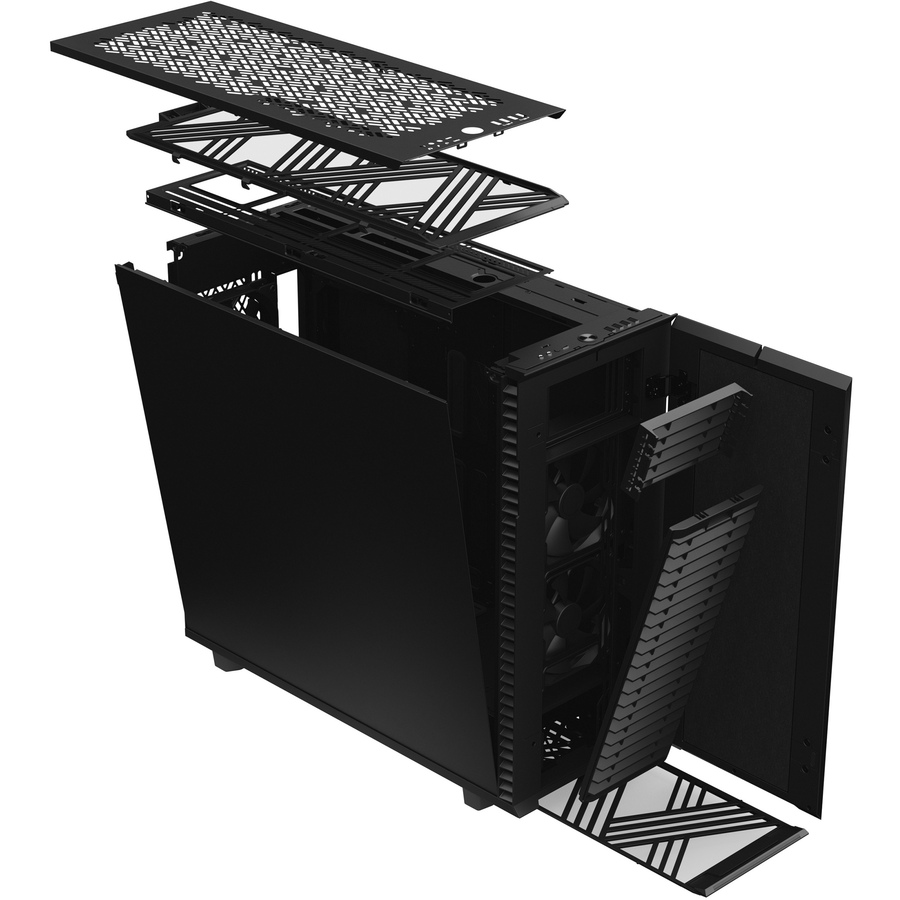

  • New chassis design opens to fully expose the interior on three sides

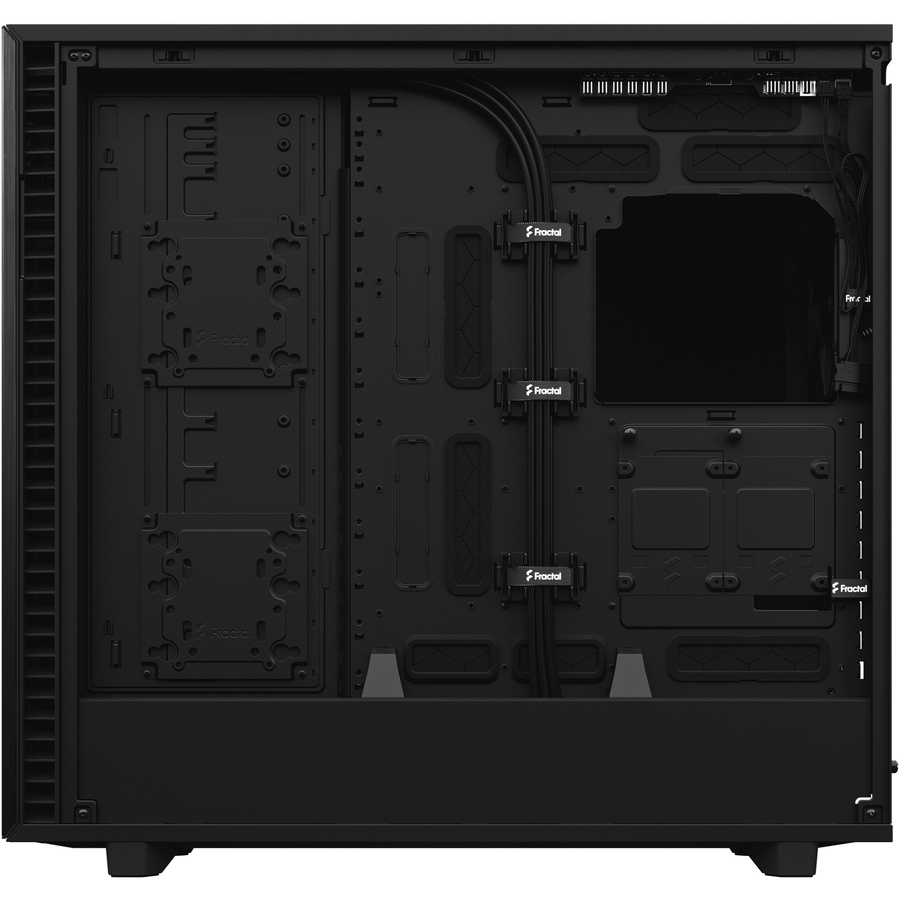

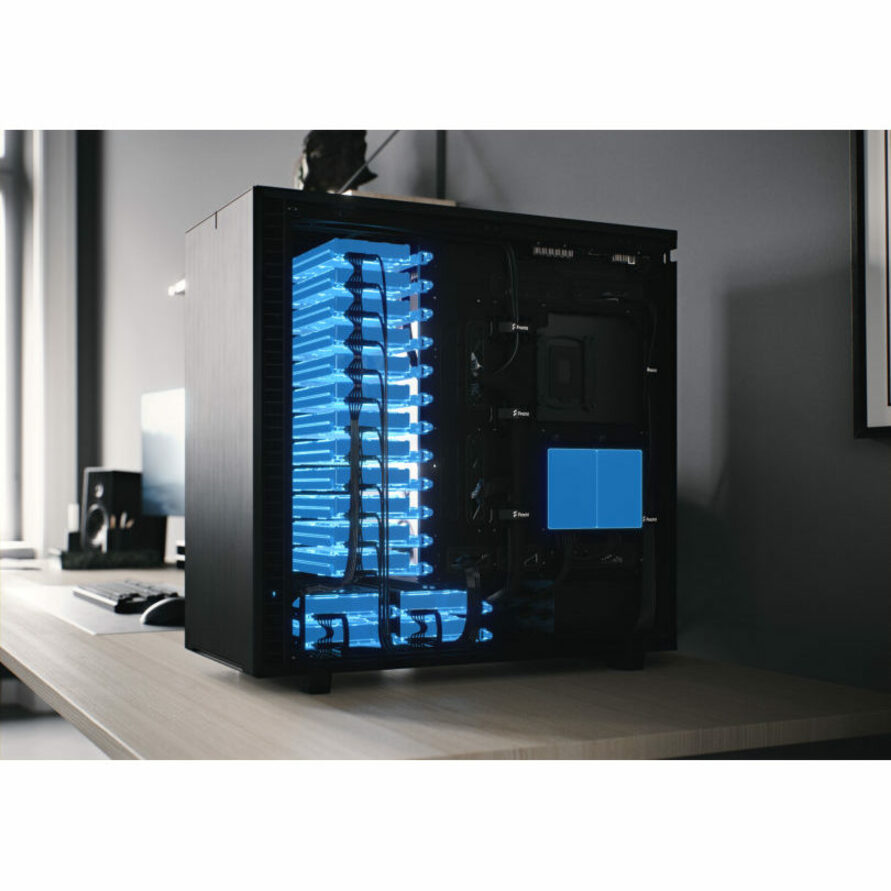

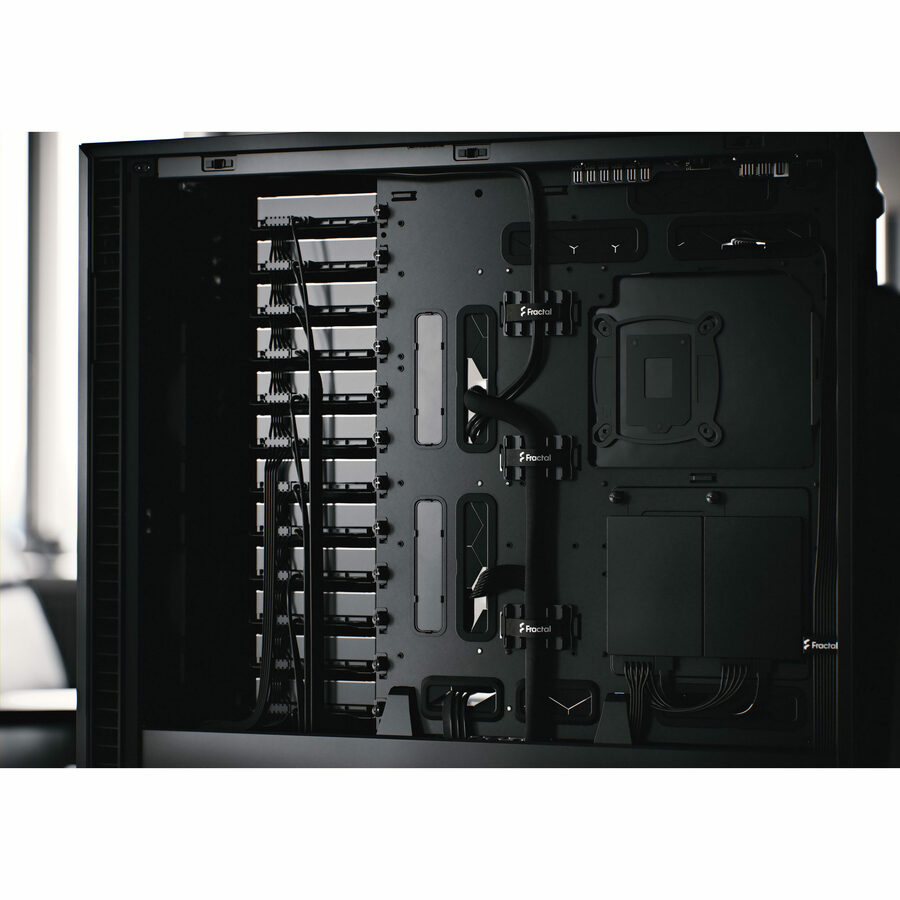

  • Supports up to 18 HDDs and 5 SSD mounts in default Storage Layout

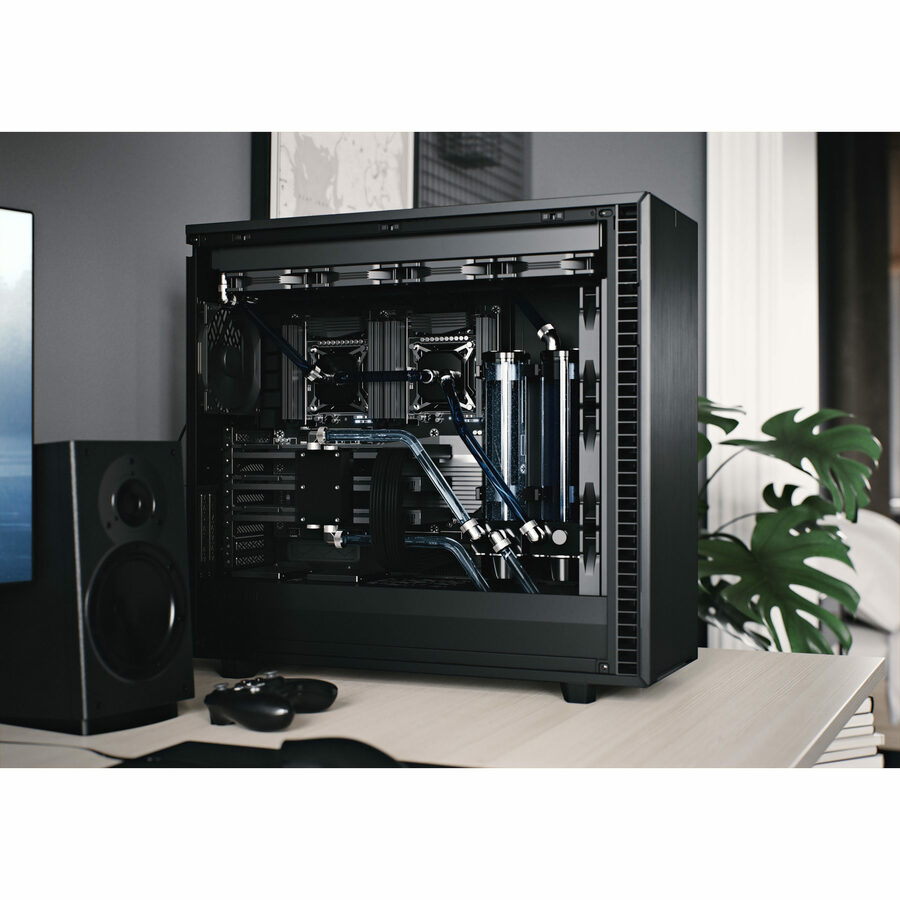

  • Exceptional water-cooling with radiators up to 480 mm, front or top
  • Silence-optimized construction with industrial sound-damping

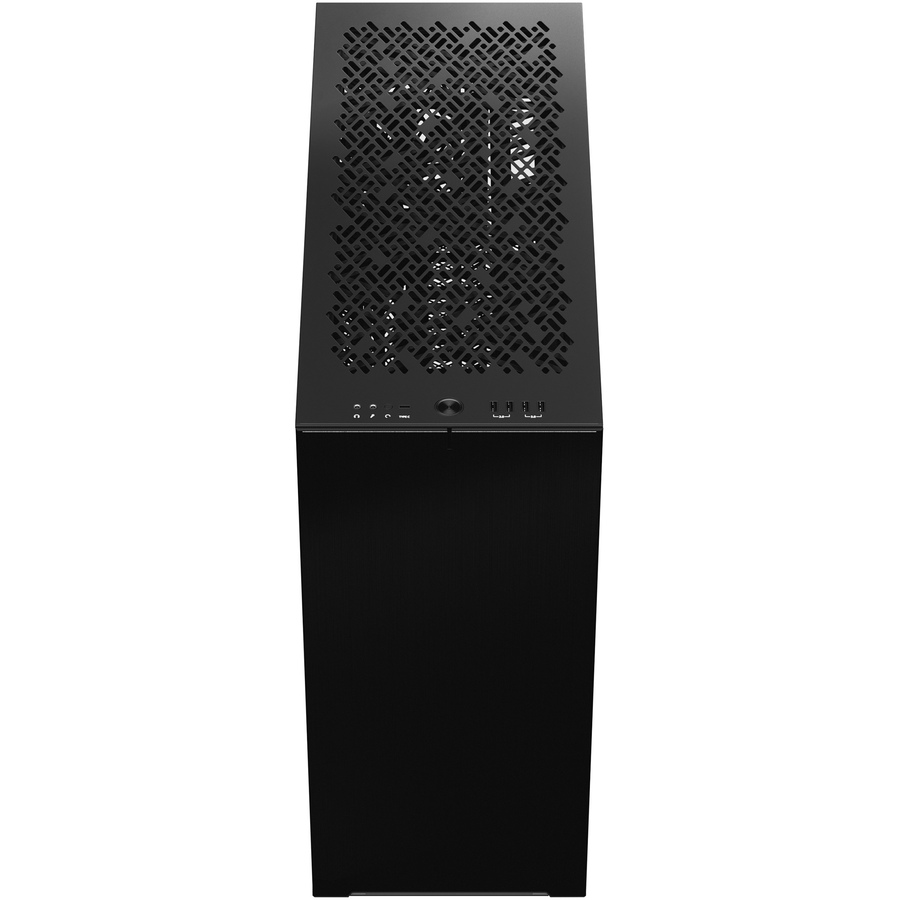

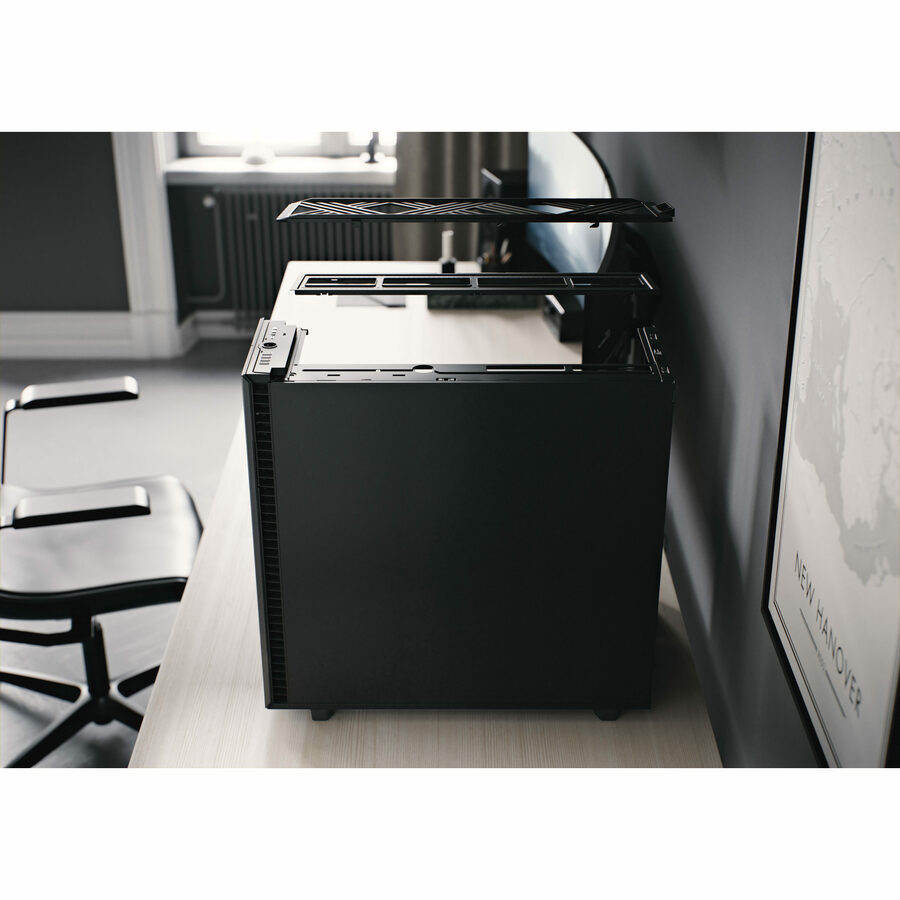

  • Top panel effortlessly swaps from solid steel to filtered ventilation

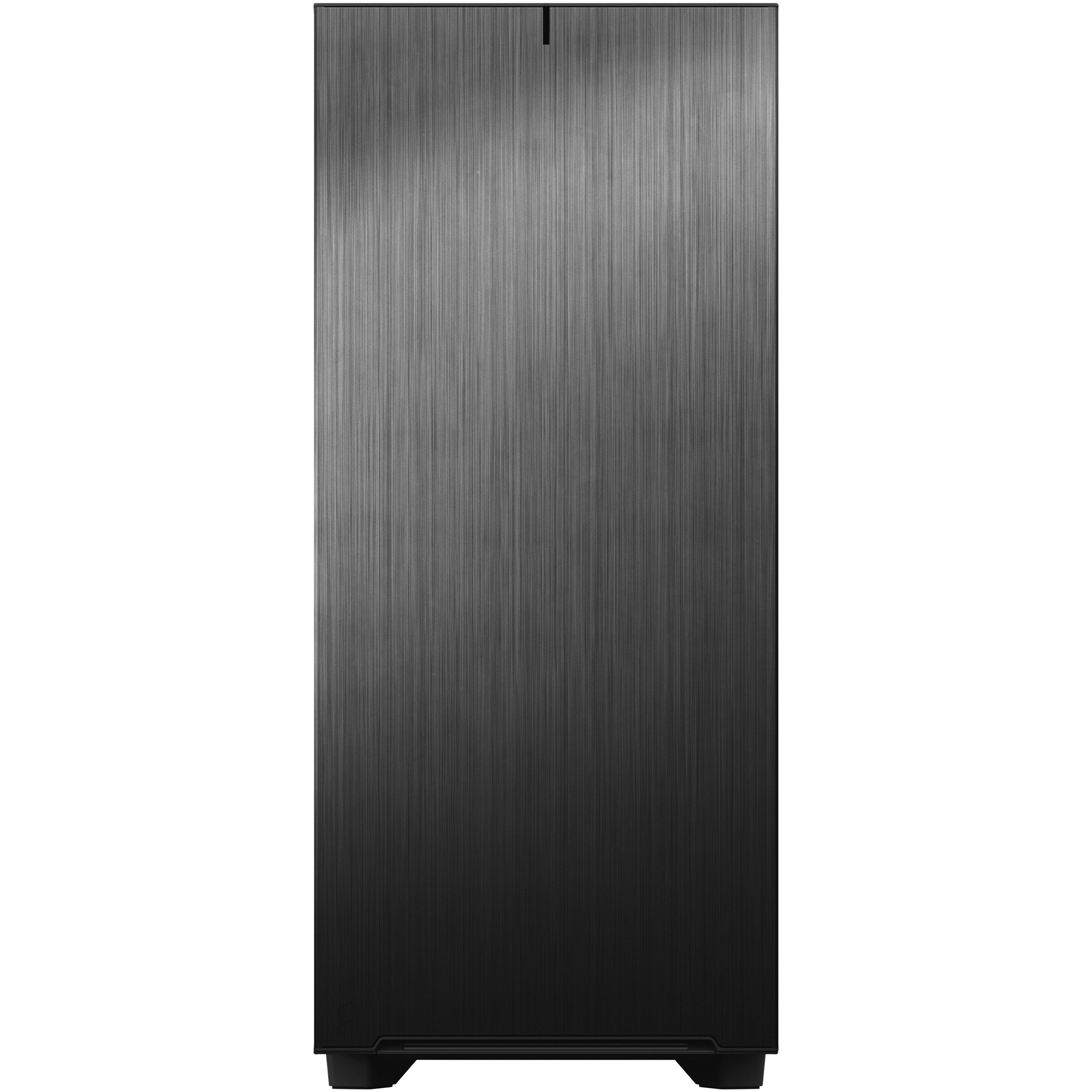

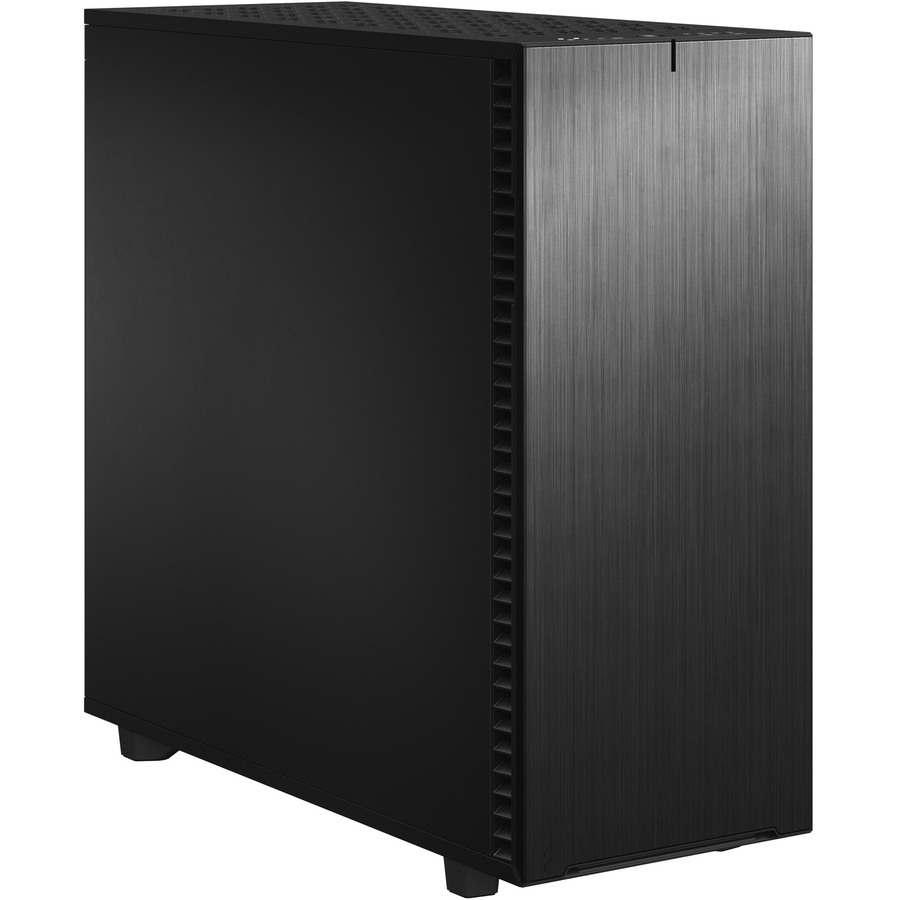

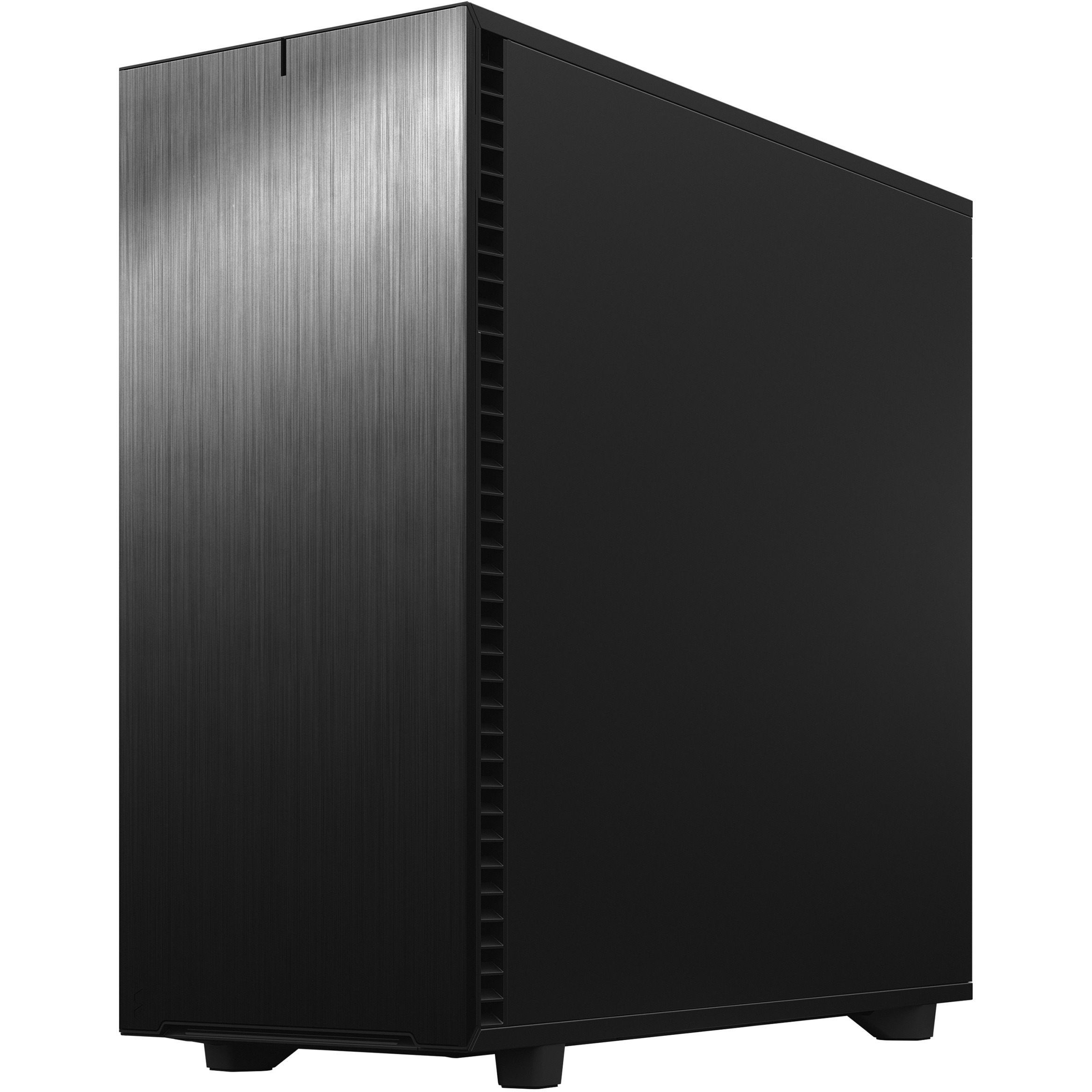

  • Aluminum front panel with dual-handed hinges and magnetic latching
  • 9 x 140 mm or 11 x 120 mm fan positions
  • 3 x vertical slots for use with the Flex VRC riser (sold separately)

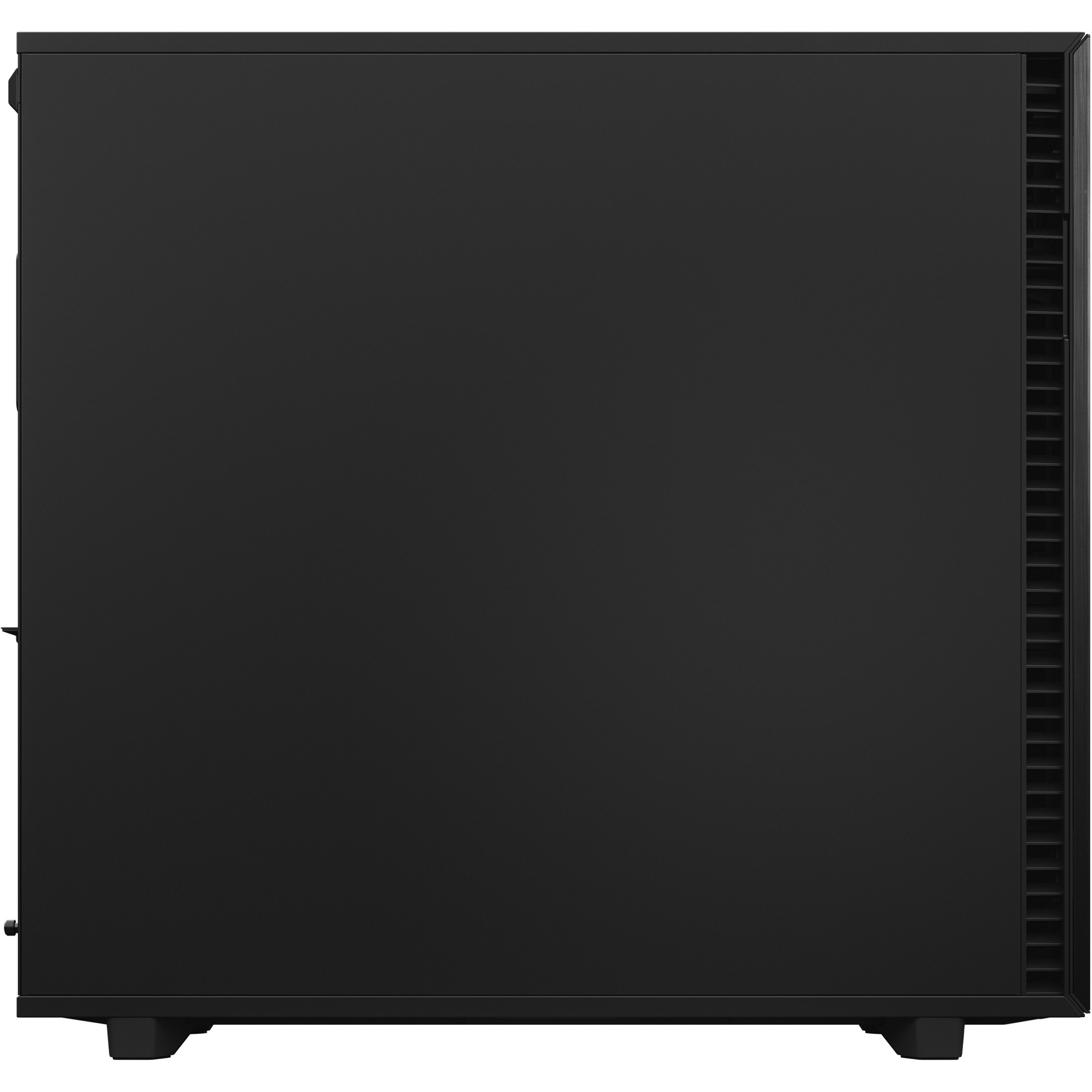

  • Tool-less, top-latching panels on both sides
• Case Type:ATX Full Tower
• Color: Black
• Material: Steel
• With Power Supply: No
• Power Supply Mounted: Bottom
• Power Supply: ATX
• M/B Type: E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
• Side Panel Window:​ No
• Drive Bays:
  • External Bay: 2x 5.25"
  • Internal Bay: 8x 3.5" 8 positions total,  2x2.5" 5 positions total

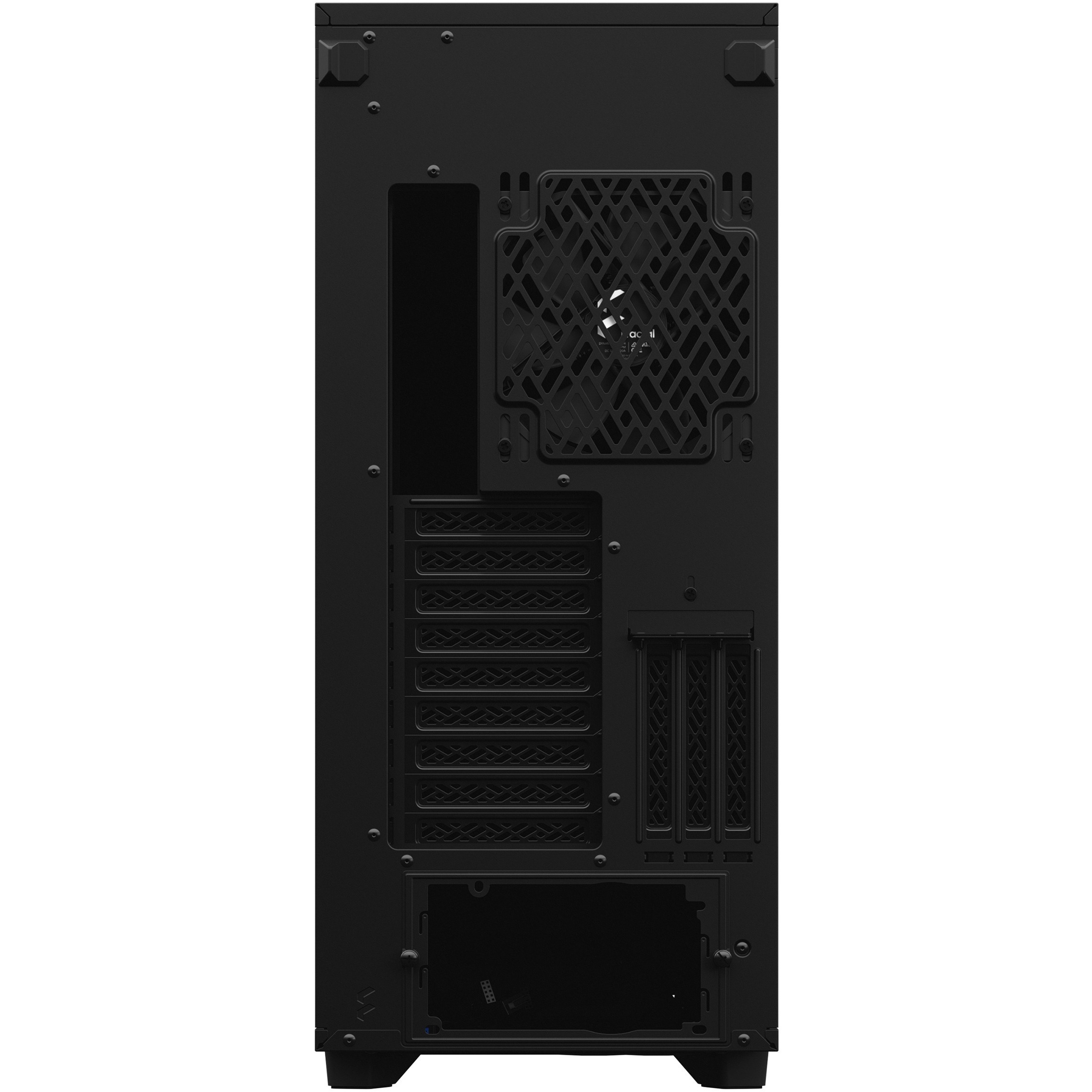

• Expansion Slots: 9 + 3 vertical

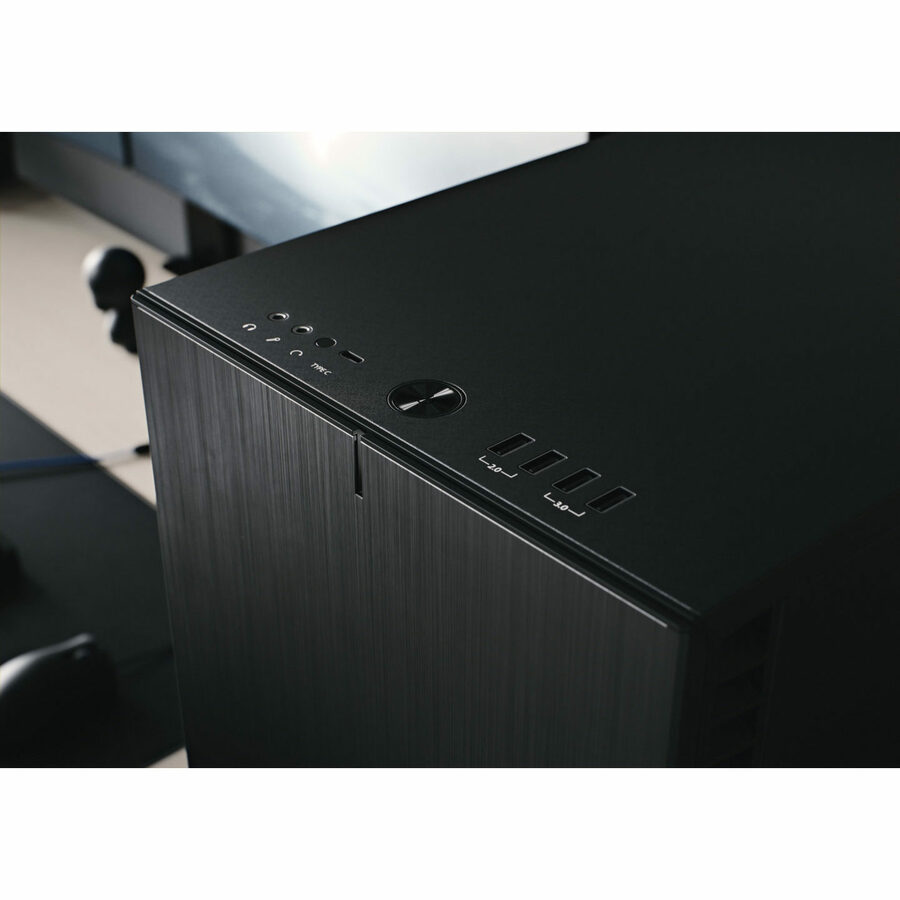

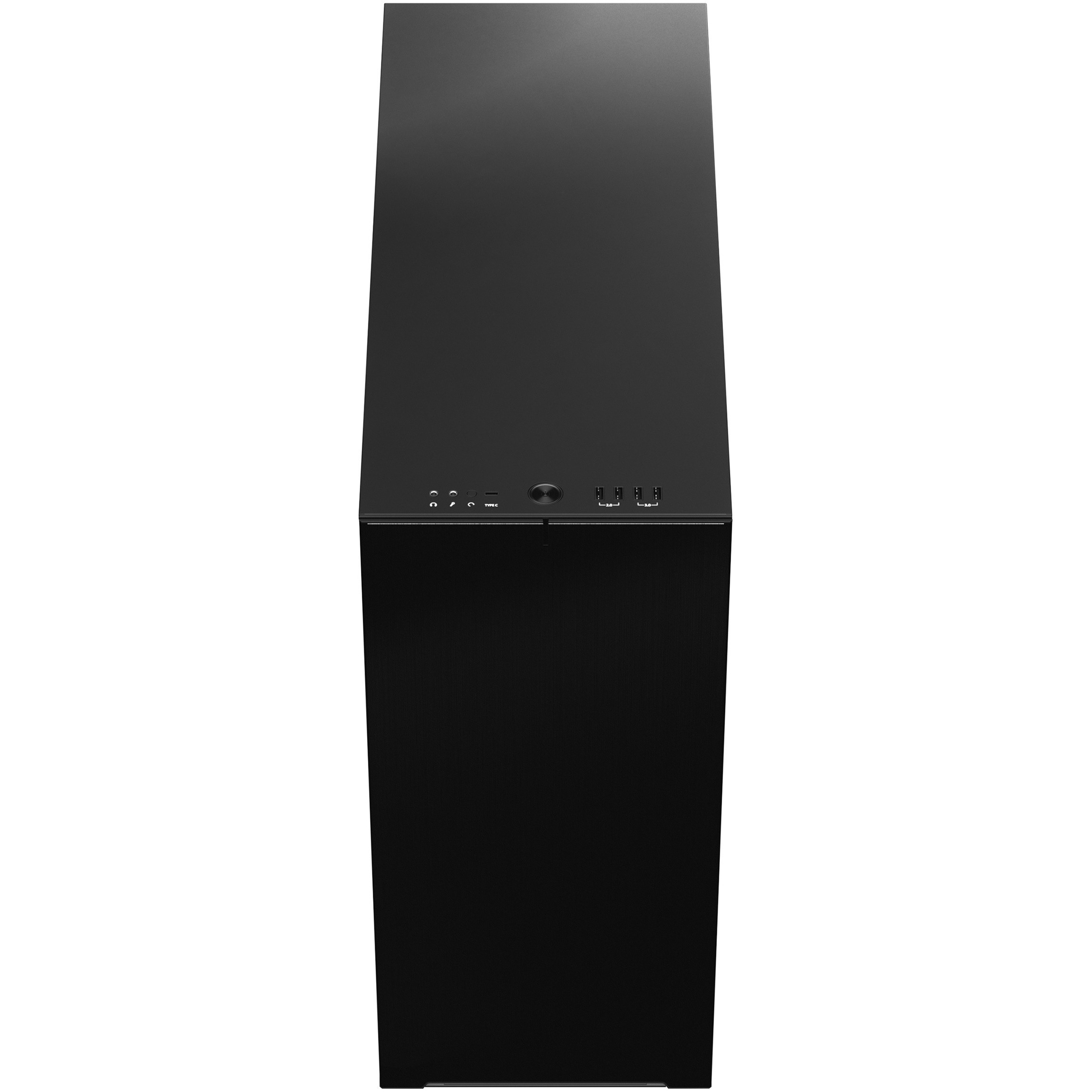

• Front Ports: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O
• Fan Options:
  • Total fan mounts:11 x 120 mm or 9 x 140 mm
  • Front: 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
  • ​Top: 4 x 120 mm or 3 x 140 mm
  • Rear: 1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
  • Bottom: 2 x 120/140 mm
• Radiator Options:
  • Front:  Up to 480/420 mm
  • Top: Up to 480/420 mm
  • Bottom: Up to 240/280 mm
  • Rear: 120 mm
• Dimensions & Weight:
  • Max GPU Length: 549 mm
  • Max CPU Cooler Height: 185 mm
  • Max PSU Length: 250 mm (with HDD cage installed)
  • Case Dimensions (LxWxH): 604 x 240 x 566 mm;590 x 240 x 548 mm w/o feet/protrusions/screws
  • Weight: 16.53 kg
  • Package Dimensions (LxWxH): 646 x 357 x 708 mm
  • Package Weight: 18.73 kg
