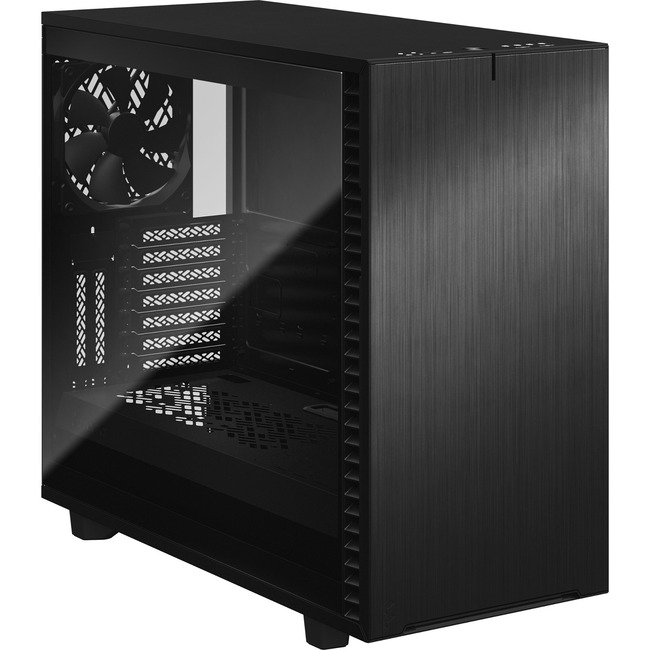

FD-C-DEF7A-03 Fractal Design Define 7 Black TG Dark Tint /Brushed Aluminum/Steel E-ATX Silent Modular Dark Tinted Tempered Glass Window Mid Tower Computer Case

Define 7

Re-defining versatility.

The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use. The dual-layout interior, industrial sound damping, and classic styling make it an easy choice for any design-conscious PC builder in need of a versatile and dependable case that accommodates ambitious builds and leaves you room to grow.

General Information
Manufacturer	Fractal Design
Manufacturer Part Number	FD-C-DEF7A-03
Manufacturer Website Address	http://www.fractal-design.com
Brand Name	Fractal Design
Product Line	Define 7
Product Name	Define 7 Black TG Dark Tint
Product Type	Computer Case
Technical Information
Motherboard Supported	EATX
Motherboard Supported	Micro ATX
Motherboard Supported	Mini ITX
Motherboard Supported	ATX
Number of Fans Supported	9
Number of Fans Installed	4
Installed Fan Size	5.51"
Bays
Number of Internal 5.25" Bays	1
Number of Internal 2.5" Bays	2
Number of Internal 2.5"/3.5" Bays	6
Number of Total Expansion Bays	9
I/O Expansions
Total Number of Expansion Slots	9
Interfaces/Ports
Total Number of USB Ports	5
Total Number of Audio In Ports	1
Total Number of Audio Out Ports	1
Power Description
Power Supply Installed	No
Number of Power Supplies Supported	1
Number of Power Supplies Installed	0
Physical Characteristics
Color Family	Black
Product Color	Black
Product Material	Tempered Glass
Product Material	Steel
Product Material	Anodized Aluminum
Form Factor	Mid-tower
Height	18.7"
Width	9.4"
Depth	21.5"
Weight (Approximate)	29.65 lb
Miscellaneous
Package Contents	Define 7 Black TG Dark Tint Accessory Box User Manual Ventilated Top 4 x HDD/SSD Trays
Country of Origin	China
Warranty
Limited Warranty	2 Year

Specifications

• Mfr Part Number: FD-C-DEF7A-03
• Features:

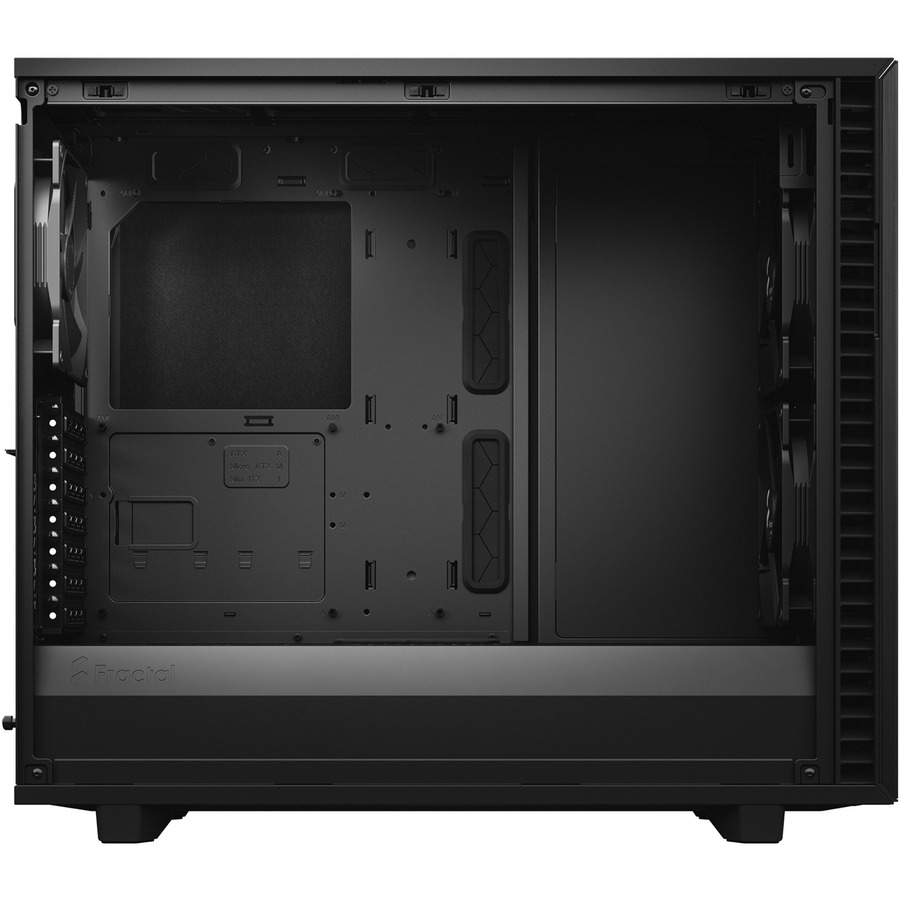

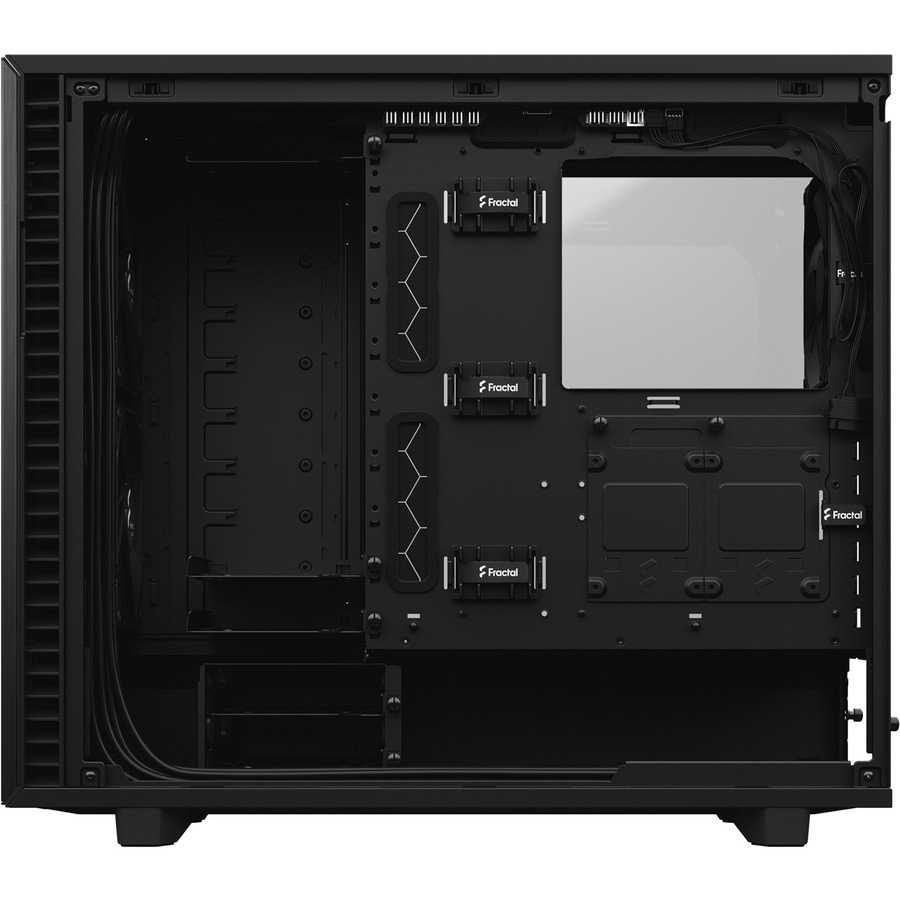

  • Dual-layout interior easily fits motherboards up to 285 mm E-ATX

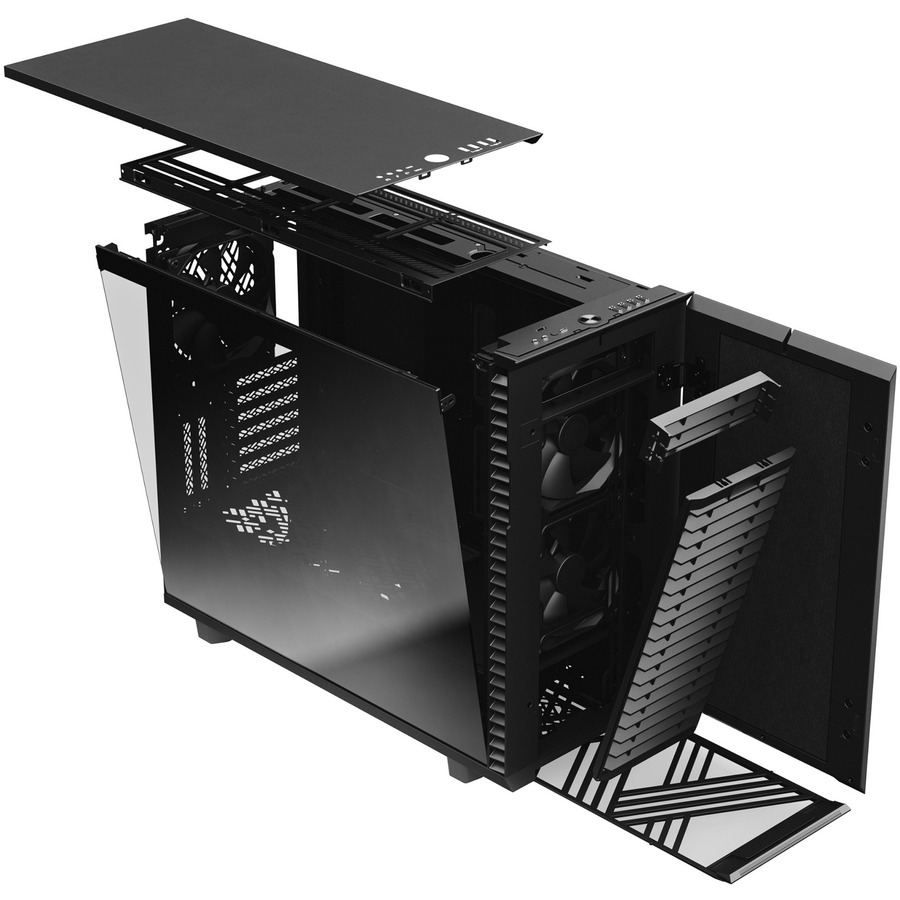

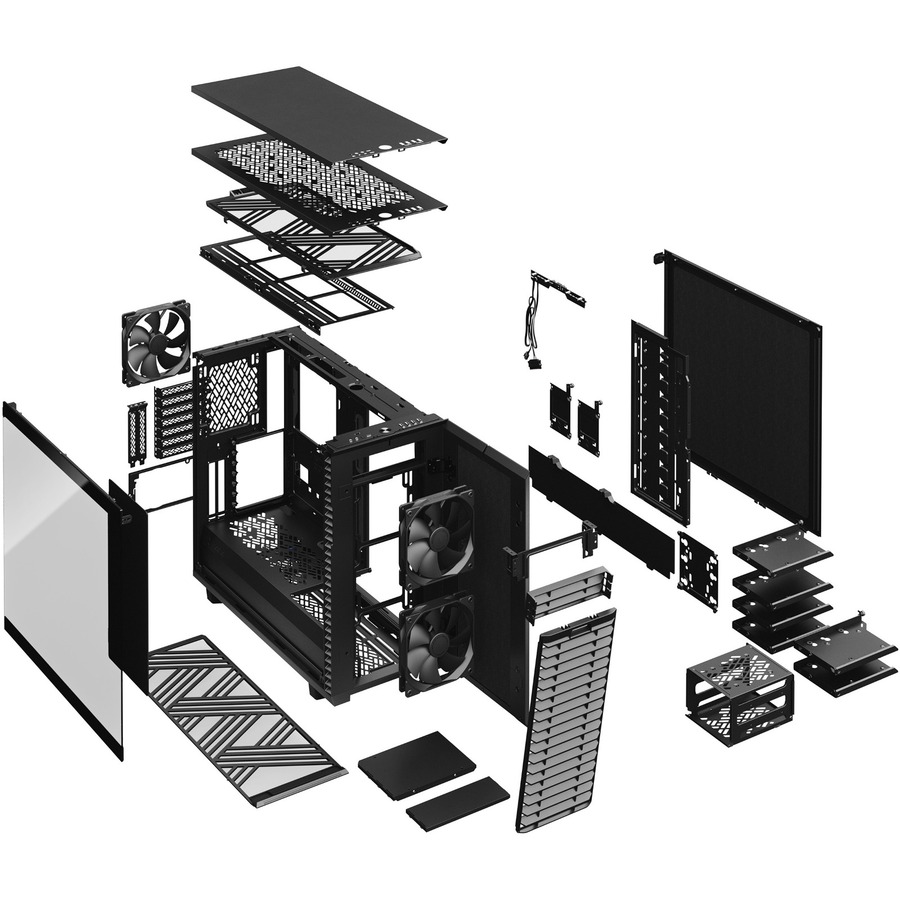

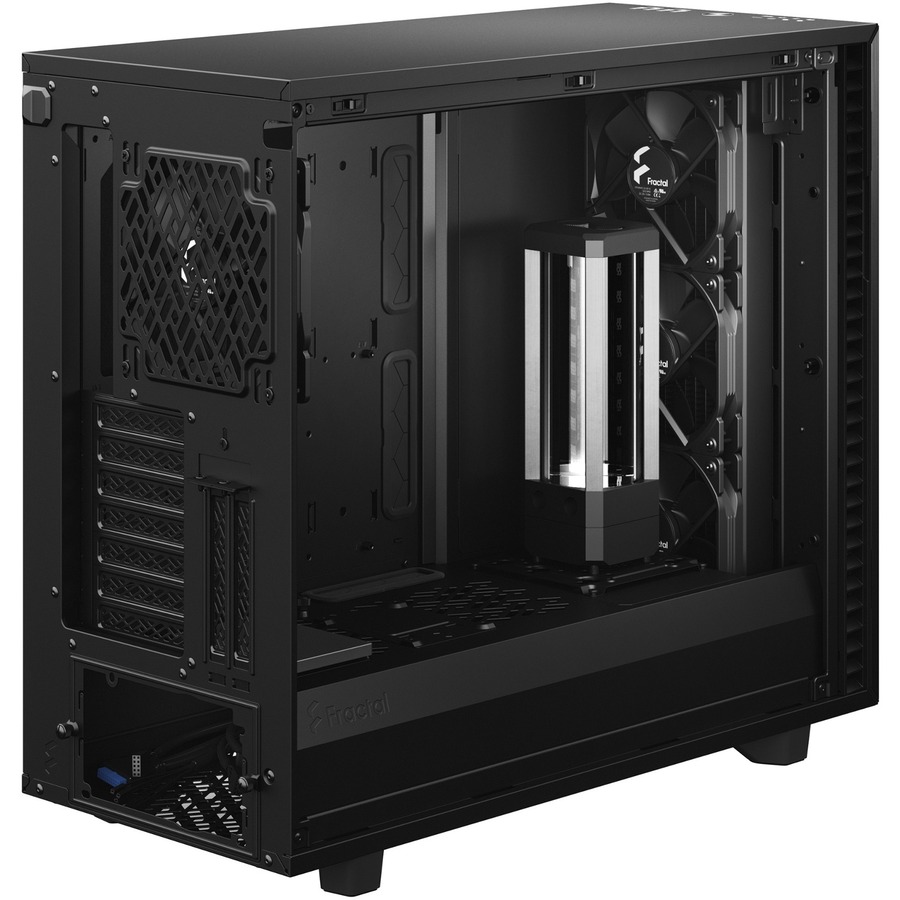

  • New chassis design opens to fully expose the interior on three sides
  • Impressive water-cooling with support for radiators up to 420mm

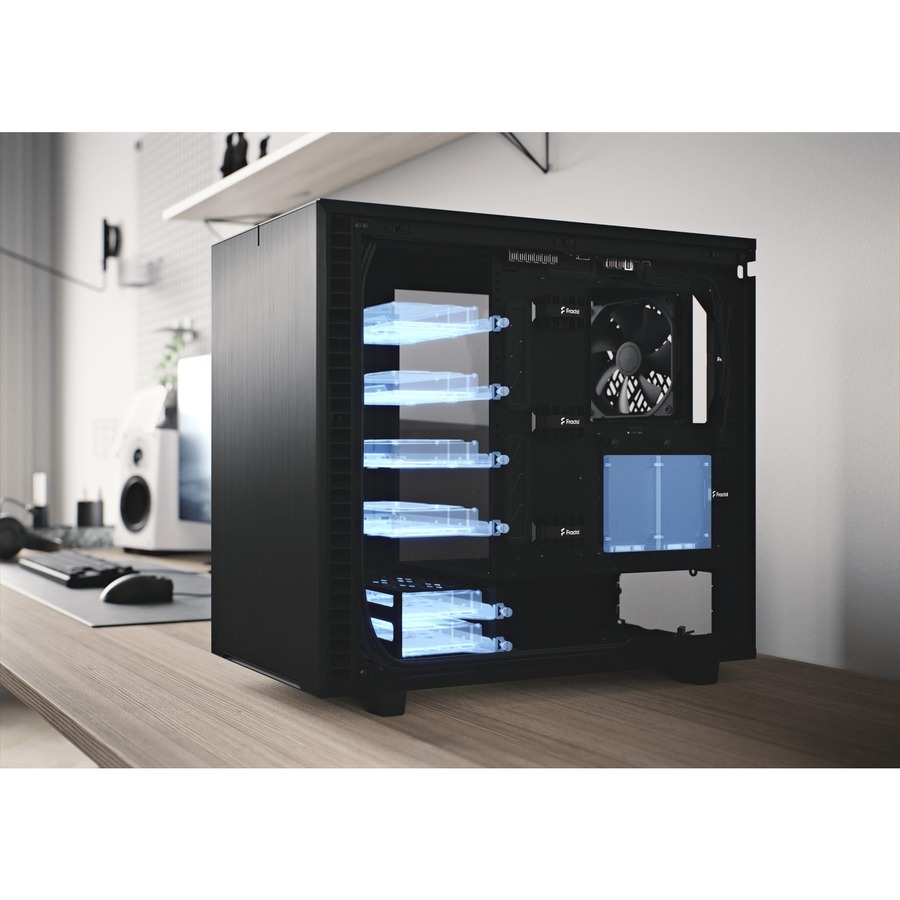

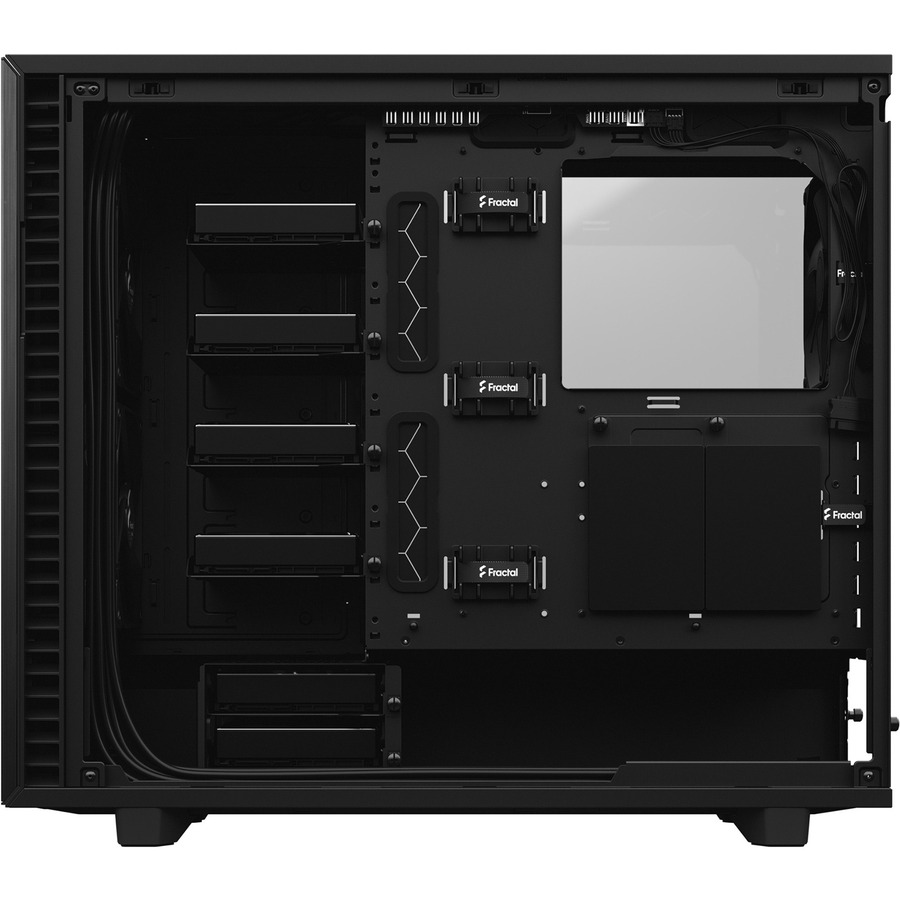

  • Supports up to 14 x 3.5â€? HDDs and 4 x 2.5â€? SSDs in Storage Layout
  • Silence-optimized construction with industrial sound-damping

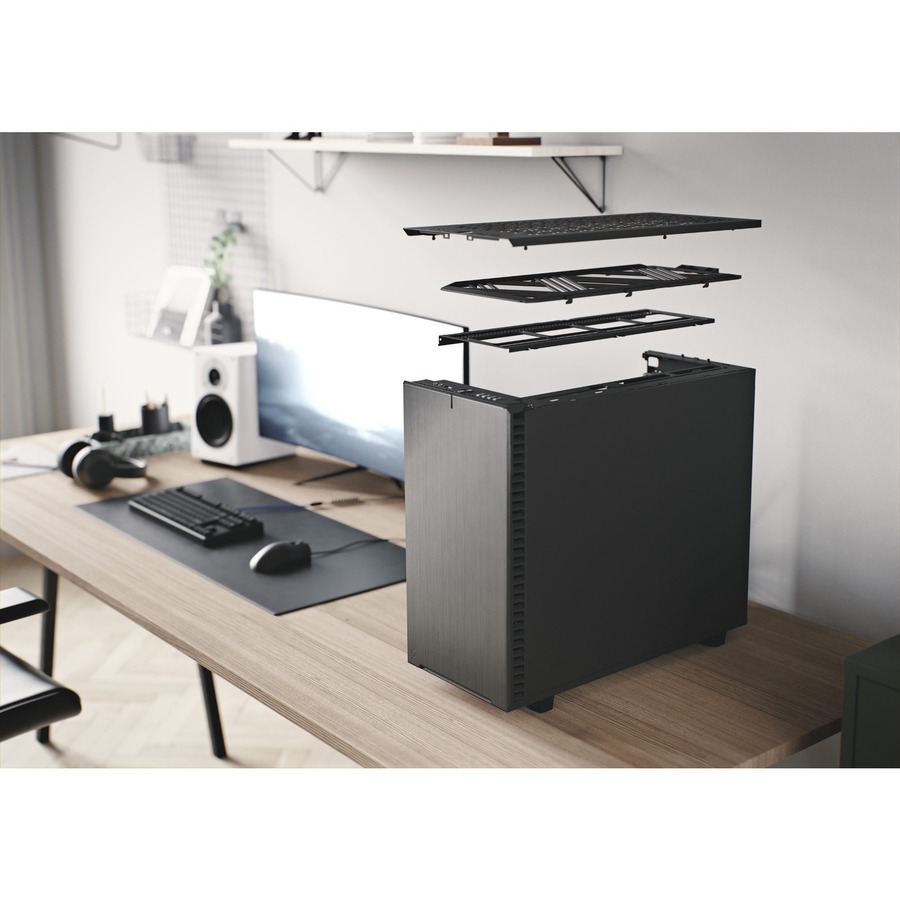

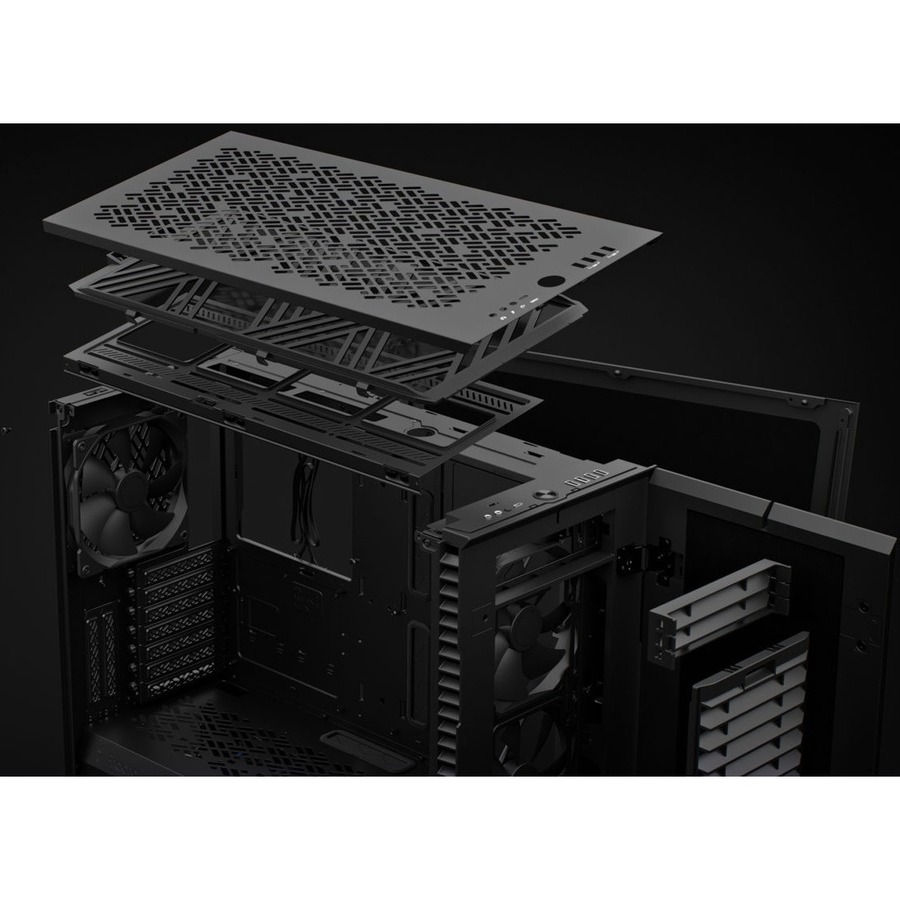

  • Top panel effortlessly swaps from sound dampened solid steel to filtered ventilation

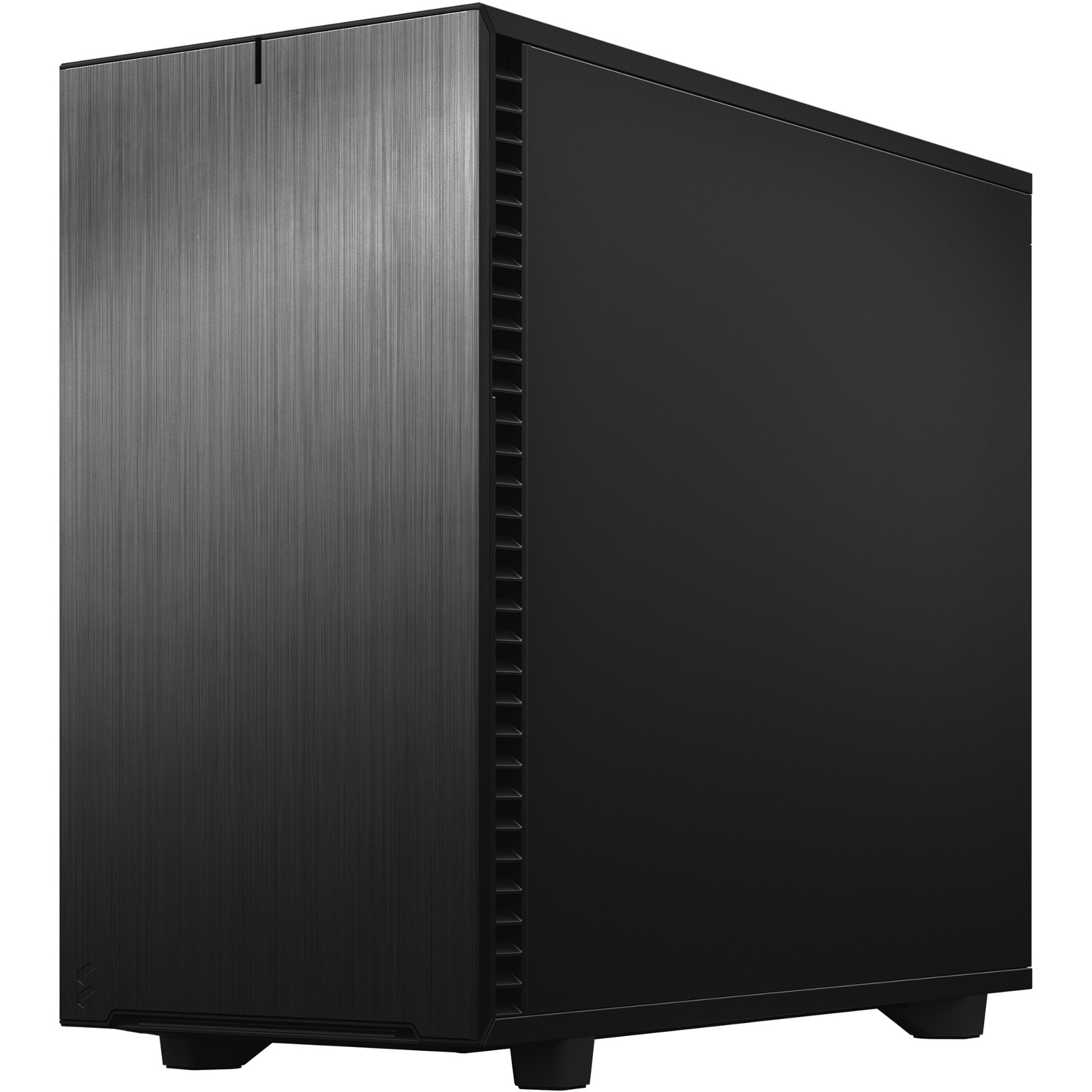

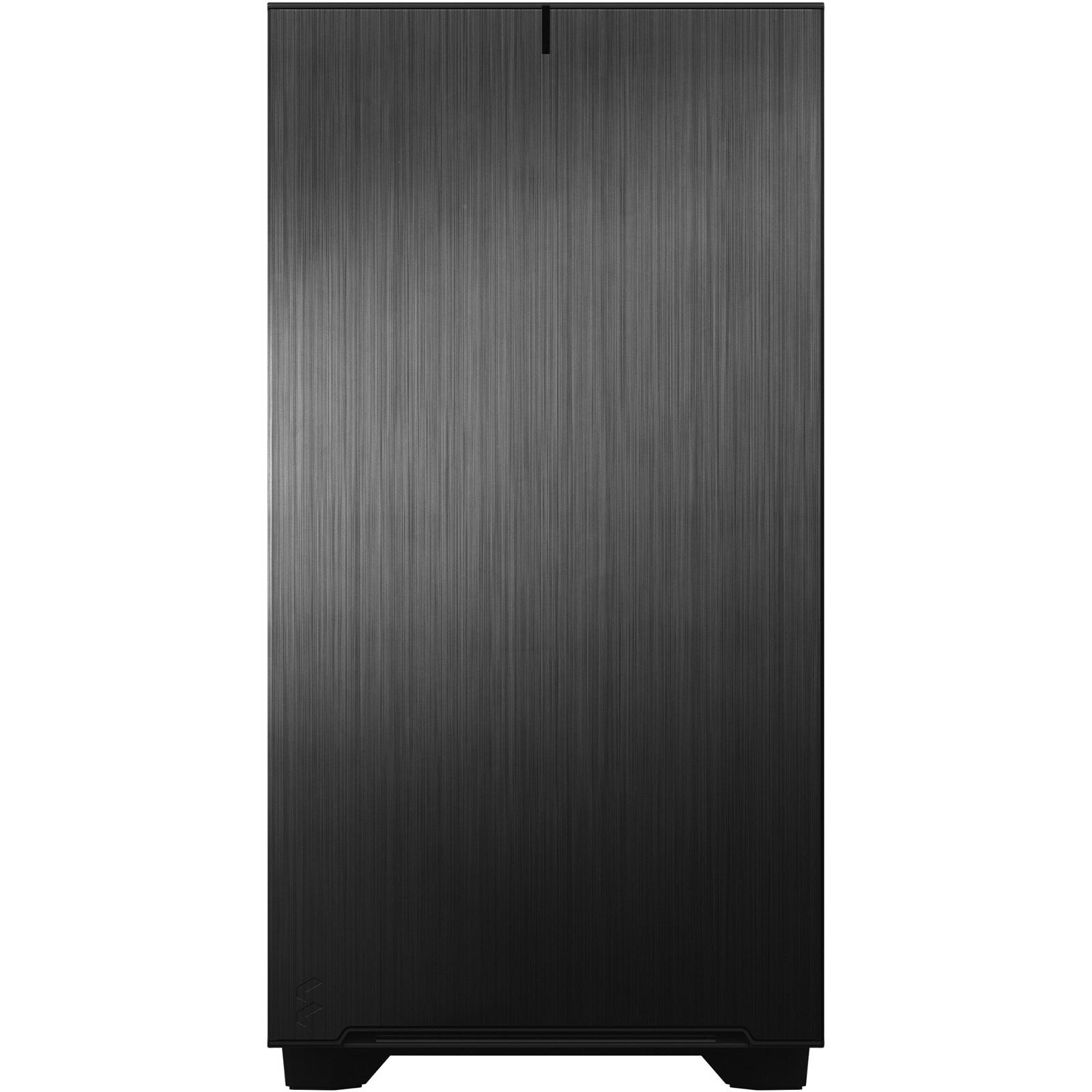

  • Aluminum front panel with dual-handed hinges and magnetic latching
  • 9 x 140/120mm fan positions with 3 x Dynamic X2 GP-14 fans included

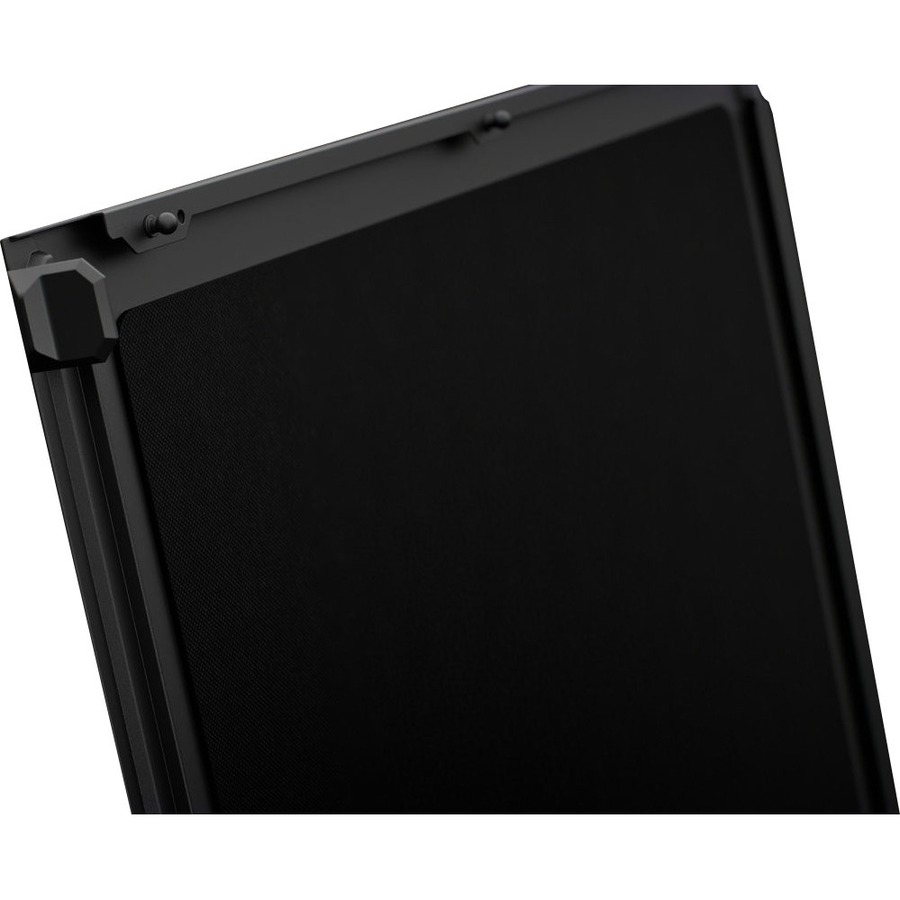

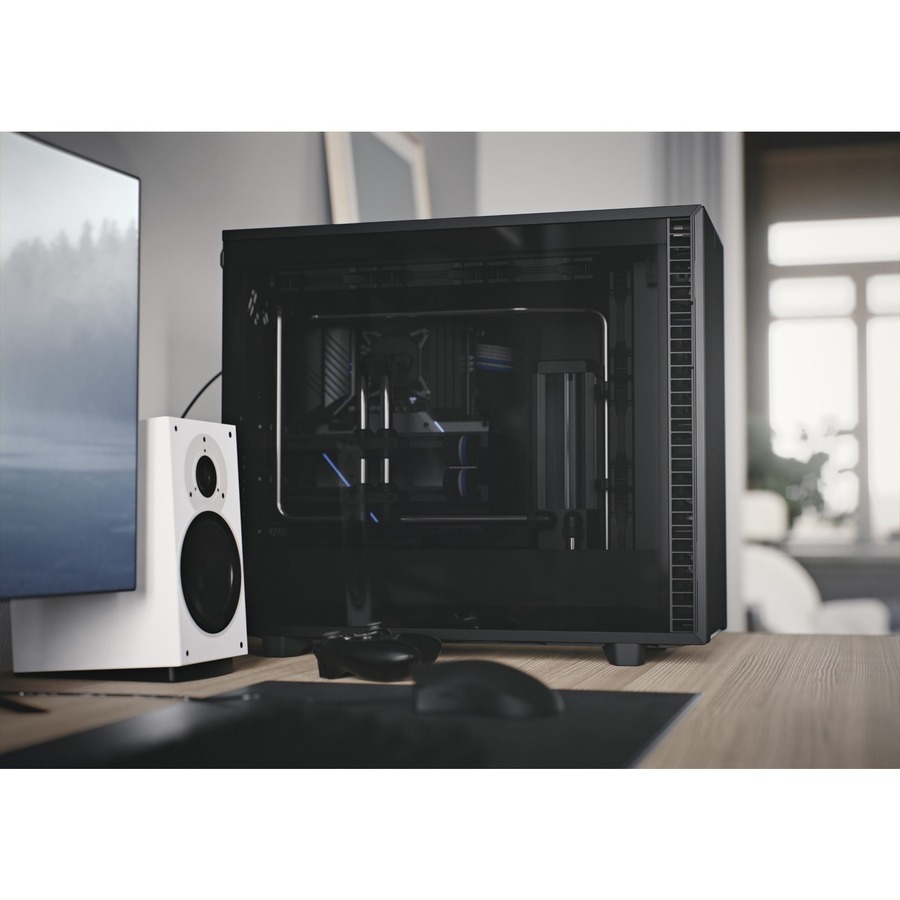

  • Seamless dark-tinted TG panel with tool-less top-latching
• Case Type: ATX Mid Tower
• Color: Black
• Material: Steel
• With Power Supply: No
• Power Supply Mounted: Bottom
• Power Supply: ATX
• M/B Type: E-ATX / ATX / MicroATX / Mini-ITX
• Side Panel Window:​ yes
• Drive Bays:
  • External Bay: 1x 5.25"

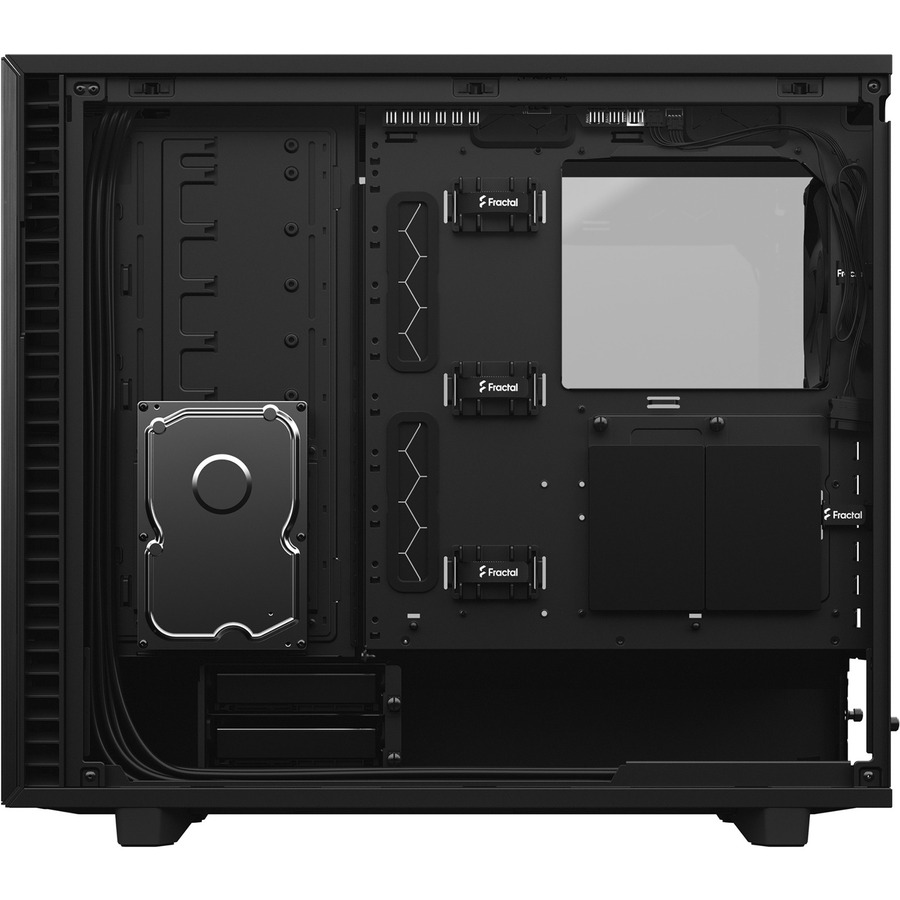

  • Internal Bay: 6x 3.5"  2x2.5"

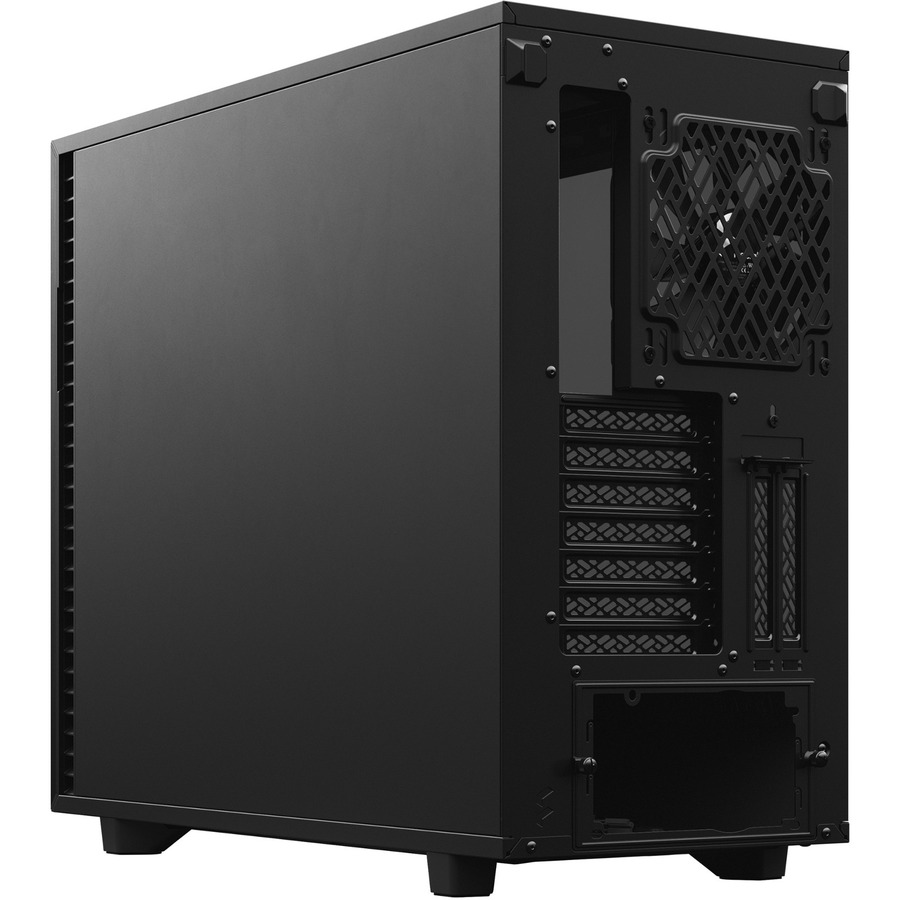

• Expansion Slots: 7 + 2 vertical

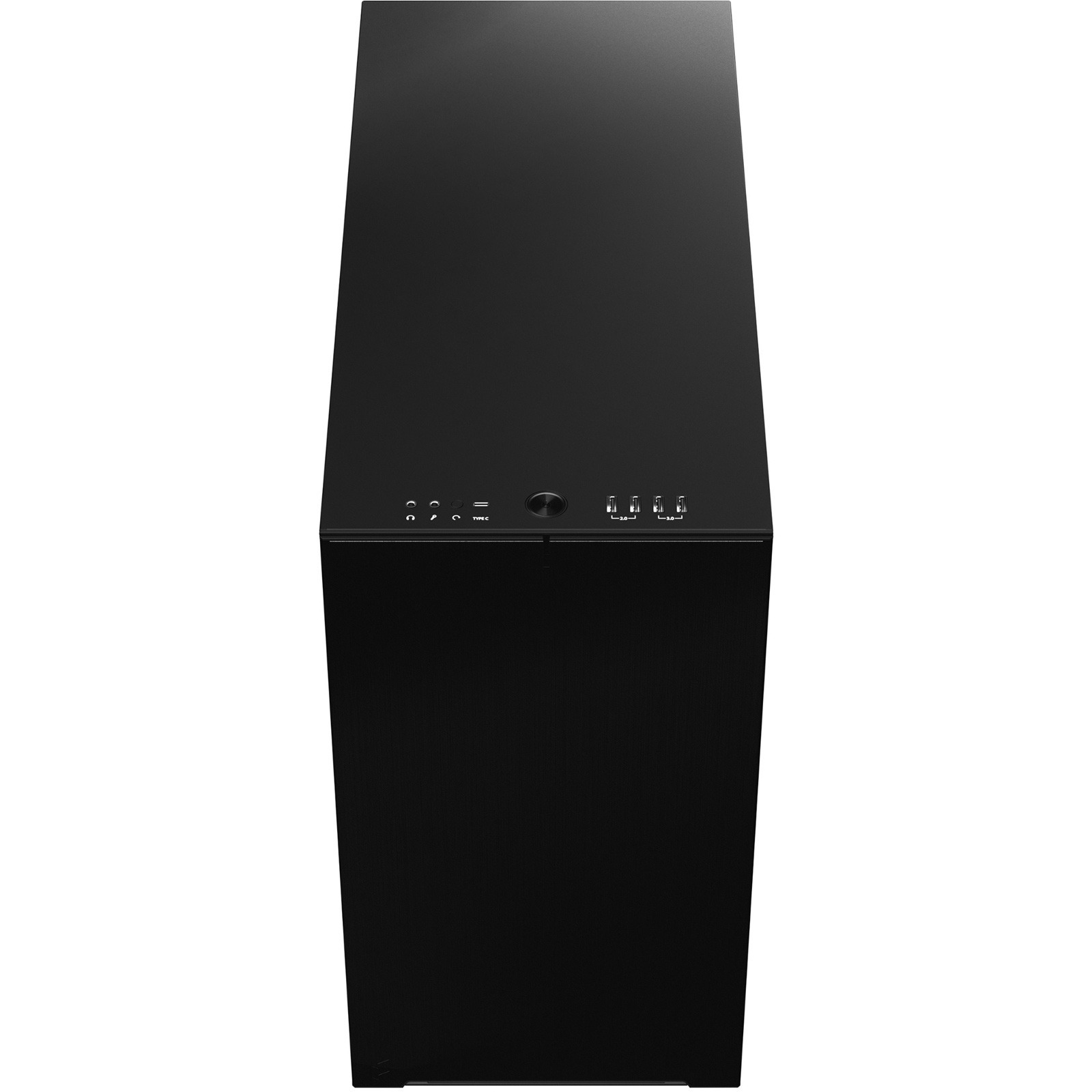

• Front Ports: 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O
• Fan Options:
  • Total fan mounts: 9 x 120/140 mm
  • Front: 3 x 120/140 mm (2 x Dynamic X2 GP-14 included)
  • ​Top: 3 x 120/140 mm
  • Rear: 1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
  • Bottom: 2 x 120/140 mm
• Radiator Options:
  • Front:  Up to 360/280 mm
  • Top: Up to 360/420 mm
  • Bottom: Up to 240/280 mm
  • Rear: 120 mm
• Dimensions & Weight:
  • Max GPU Length: 491 mm
  • Max CPU Cooler Height: 185 mm
  • Max PSU Length: 250 mm (with HDD cage installed)
  • Case Dimensions (LxWxH): 547 x 240 x 475 mm; 533 x 240 x 451 mm w/o feet/protrusions/screws
  • Weight: 13.45 kg
  • Package Dimensions (LxWxH): 558 x 363 x 641 mm
  • Package Weight: 15.94 kg
