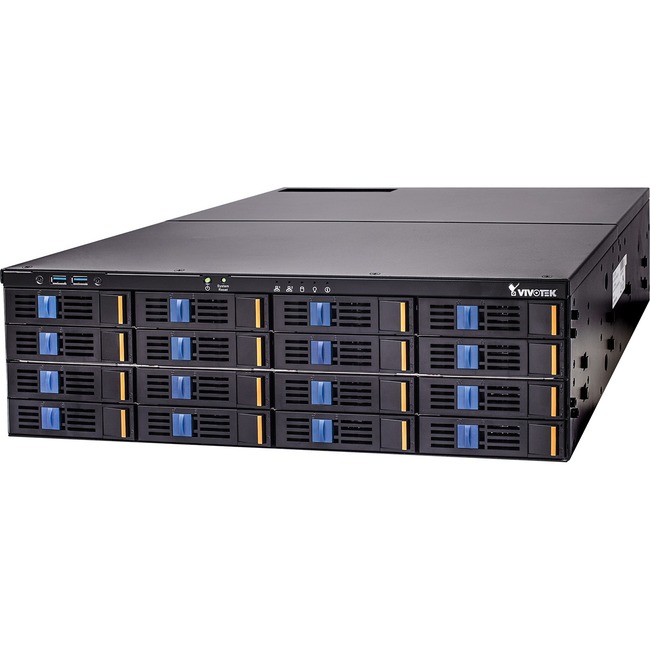

NR9682-V2 NVR VIVOTEK 64CH HOT-SWAPPABLE TRAY X16

Key Features

• H.265/H.264 Compression Technology
• Up to 64CH Recording, 64CH Display
• Support HDMI, Display Port & DVI Simultaneous Output
• 16 Hot-Swappable HDD Bays
• Support RAID 0/1/5/6/10 Storage
• Redundant Power
• VIVOTEK VAST 2 CMS Inside
• Cybersecurity Management Solution
• Smart Search II
• Smart VCA/Smart 360 VCA Event Search
• Dual Lan Giga Network Ports
• Multiple Fisheye Dewarp Support
• Multiple Video Search Modes

Intuitive UI Design

Custom layout adjustment and fisheye ROI control for better security management experience.

Data Magnet

Data Magnet offers the capability to integrate third-party data source into VAST 2, which provides quick access to data along with video. This supports simultaneous display with live event monitoring. All events will be stored for later searches.

2.5D Visualization eMap

Multiple layers and camera FOV views allow users to instantly pinpoint a selected camera and the location on the map.

Cybersecurity Management Solution

Integrate cybersecurity attack events from VIVOTEK cameras and NVR to VAST 2 alarm management. In addition to alarm action and notification, VAST 2 becomes the central management site to recognize attack trends and status, as well as acquire attack information.

Smart Search II

Allow users to search for objects or people related videos according to the VCA (Video Content Analysis) metadata from camera videos. Users can quickly sort through large amounts of evidence to find precisely what is needed.

Smart VCA Event Search

The NVRs support alarm management and event search of VIVOTEK's deep-learning video analytics technology, Smart VCA and Smart 360 VCA. VCA rules and information such as people-tracking frames and motion-detection frames can be shown on live or playback video display. The user can search by single or multiple event types, playback triggered events and then export these search results to video clips.

Evidence Lock & Export

Manually extend the retention time for video recordings and manage a high number of investigation scenarios. Easily export multiple video recordings with custom layouts in a specific time period or instant snapshot with a fast click.

General Information
Manufacturer	Vivotek, Inc
Manufacturer Part Number	NR9682-V2
Manufacturer Website Address	http://www.vivotek.com
Brand Name	Vivotek
Product Series	S
Product Model	NR9682-V2
Product Name	H.265 64-Channel 16Bay NVR
Product Type	Video Surveillance Station
Technical Information
Total Number of Channels	64
Connectivity Technology	Wired
Recording Formats	Full HD
HD Recording	Yes
System Components	Network Video Recorder
Memory
Standard Memory	8 GB
Video
Video Formats	MPEG-4
Video Formats	H.264 AVC
Video Formats	H.264 SVC
Video Formats	H.265
Maximum Resolution	1920 x 1080
Maximum Frame Rate	540 fps
Network & Communication
Ethernet	Yes
Remote Management	Yes
Interfaces/Ports
USB	Yes
Total Number of Audio In Ports	1
Total Number of Audio Out Ports	1
HDMI	Yes
DVI	Yes
Physical Characteristics
Height	5.2"
Width	17.1"
Depth	21.3"
Weight (Approximate)	72.75 lb
Miscellaneous
TAA Compliant	Yes
NDAA Compliant	Yes
Warranty
Limited Warranty	36 Month
