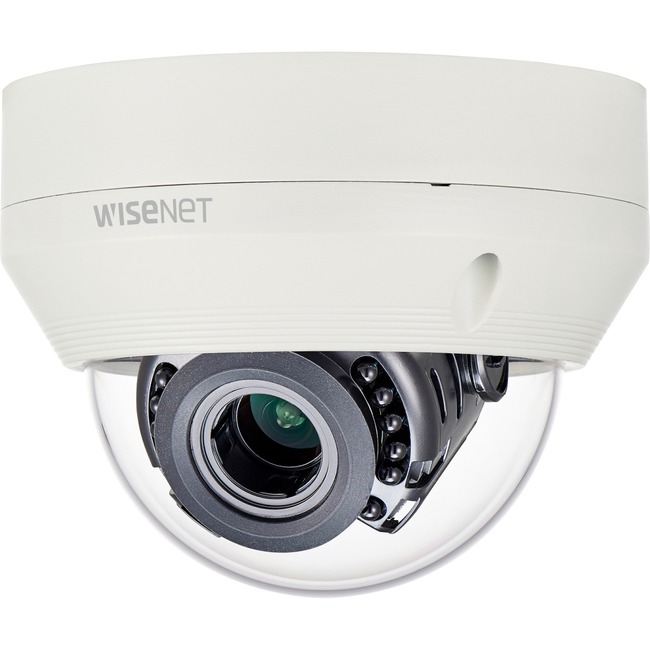

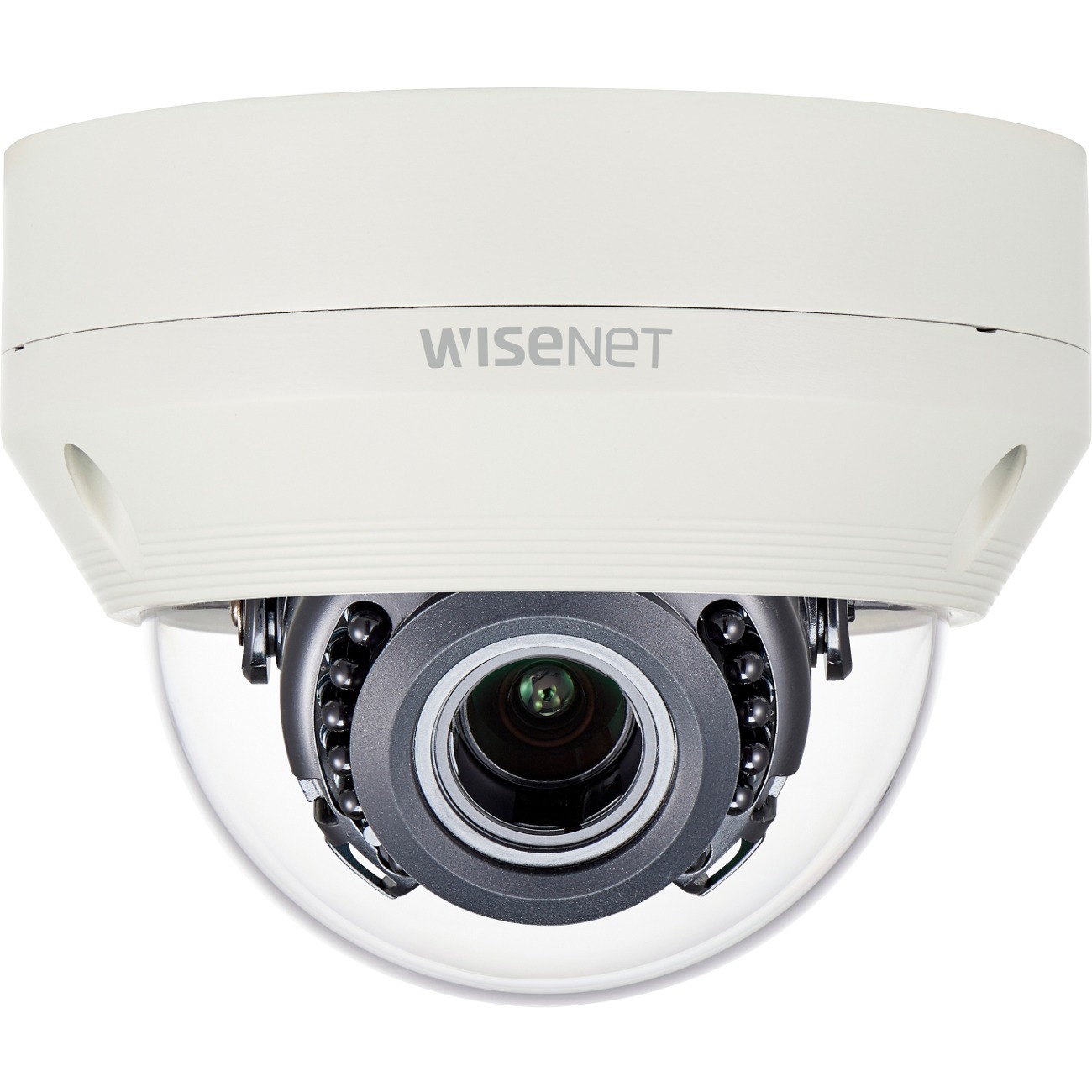

HANWHA TECHWIN HCV-7070RA Wisenet HD+ 4MP IR outdoor dome camera AHD or CVBS formats are available manual vari-focal Lens (3.1X) (3.2-10mm) true D/N 24VAC/12VDC IR distance 98 feet IP66/IK10.
Mfg Part Number: HCV-7070RA , Item #: 3767422
Image may not reflect the actual item.
Price: $221.21
+ Free Shipping
Quantity:
More to Come
Last Updated: Sep 06, 2025
No Sales Tax except these states
, PO and Wire.
Wisenet HD+ 4MP IR outdoor dome camera, AHD or CVBS formats are available, manual vari-focal Lens (3.1X) (3.2-10mm), true D/N, 24VAC/12VDC, IR distance 98 feet, IP66/IK10
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HCV7070RA |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | HD+ |
| Product Model | HCV-7070R |
| Product Name | HD+ 4MP Outdoor Dome Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Color Supported | Monochrome |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.20 mm |
| Maximum Focal Length | 10 mm |
| Lens Included | Yes |
| Optical Zoom | 3.1x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/25 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Interfaces/Ports | |
| Network (RJ-45) | No |
| Power Description | |
| Input Voltage | 24 V AC |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Power Source Type | AC |
| Physical Characteristics | |
| Mount Type | Pendant Mount |
| Mount Type | Box Mount |
| Mount Type | Gooseneck |
| Mount Type | Board-in Type |
| Mount Type | Wall Mount |
| Mount Type | Corner Mount |
| Mount Type | Hanging Mount |
| Mount Type | Pole Mount |
| Mount Type | Parapet Mount |
| Mount Type | Backbox Mount |
| Mount Type | Ceiling Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant |
| Durability | Weather Resistant |
| Color Family | White |
| Product Color | Ivory |
| Height | 4.2" |
| Diameter | 5.4" |
| Weight (Approximate) | 1.58 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Motion Detection |
| Features | Privacy Masking |
| Features | Gain Control |
| Features | Automatic White Balance |
| Features | Back Light Compensation (BLC) |
| Features | Day/Night |
| Features | Digital Wide Dynamic Range (D-WDR) |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| NDAA Compliant | Yes |
