Elo TouchSystems
Elo TouchSystems E125897 2002L 19.5IN MONITOR FHD PCAP USB ANTIG ZB NO STND VGA &HDMI BLK
Mfg Part Number: E125897 , Item #: 3761355
, PO and Wire.

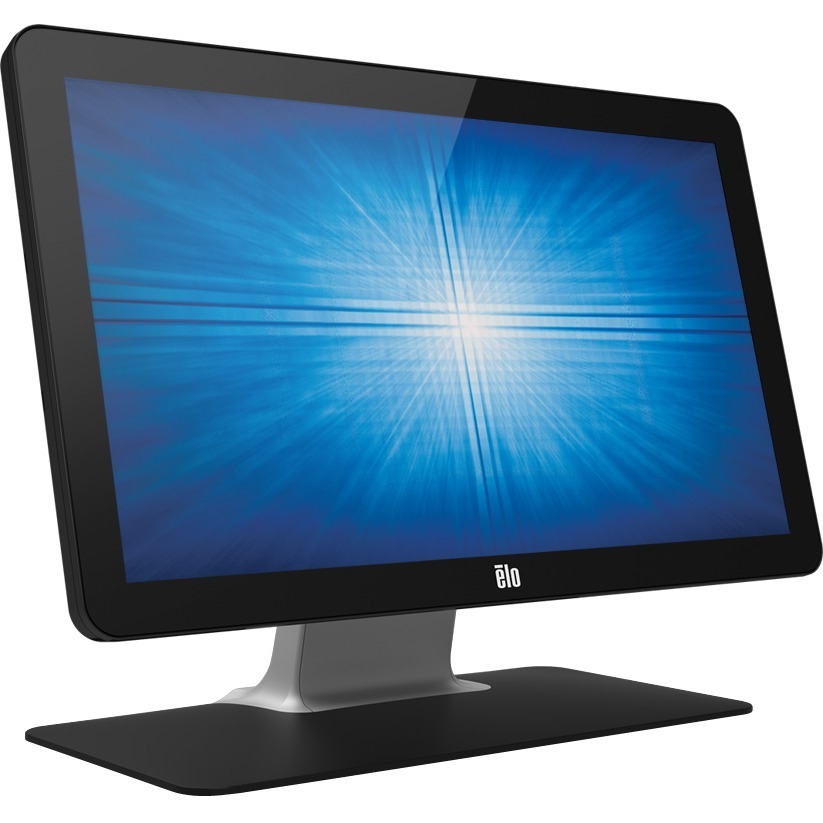

The Elo M-Series 2002L 20-inch widescreen LED touchscreen monitor delivers a seamless zero-bezel, edge-to-edge glass design with Elo's industry-leading TouchPro® PCAP technology. The sleek, retail-hardened touchscreen features a 10-touch tablet-like experience and an anti-glare surface built to withstand the rigors of continuous public use, making the 2002L well suited for high traffic environments.
Installation flexibility.
The Elo M-Series is available in 10-, 15-, and 20-inch sizes with multiple mount and stand options to ensure installation flexibility with tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns.
POS ready.
The 2002L offers optional retail accessories with easy installation including: a mag stripe reader (MSR), barcode reader, fingerprint scanner, customer-facing display and near-field communication (NFC/RFID) adapter for mobile payments and increased compatibility with the latest point of sale applications.
Screen Size.
For retail applications where customer engagement is critical, the 2002L offers 11.5% more screen real estate compared to the 1919L.
Commercial grade.
The 20-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- Sleek and modern widescreen design with built-for-touch reliability
- Energy savings using LED technology
- Full HD Edge-to-edge glass display with anti-glare for retail interiors
- Installation flexibility with mounting in portrait, landscape and table-top orientation, adjustable height stand
- Typical power consumption: 8.7W
- Three-year standard warranty
| General Information | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E125897 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Series | M |
| Product Model | 2002L |
| Product Name | 2002L 20" Touchscreen Monitor |
| Product Type | LCD Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 20" |
| Viewable Screen Size | 19.5" |
| Screen Mode | Full HD |
| Response Time | 20 ms |
| Aspect Ratio | 16:9 |
| Mount Type | Shelf Mount |
| Mount Type | Pole Mount |
| Mount Type | Wall Mountable |
| Backlight Technology | LED |
| HDCP Supported | Yes |
| Horizontal Frequency | 31.50 kHz to 80 kHz |
| Vertical Frequency | 50 Hz to 60 Hz |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 3,000:1 |
| Brightness | 250 Nit |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| Power Description | |
| Operating Power Consumption | 18.40 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Product Color | Black |
| Height | 11.6" |
| Width | 19.2" |
| Depth | 1.5" |
| Weight (Approximate) | 7.25 lb |
| Miscellaneous | |
| Country of Origin | China |
