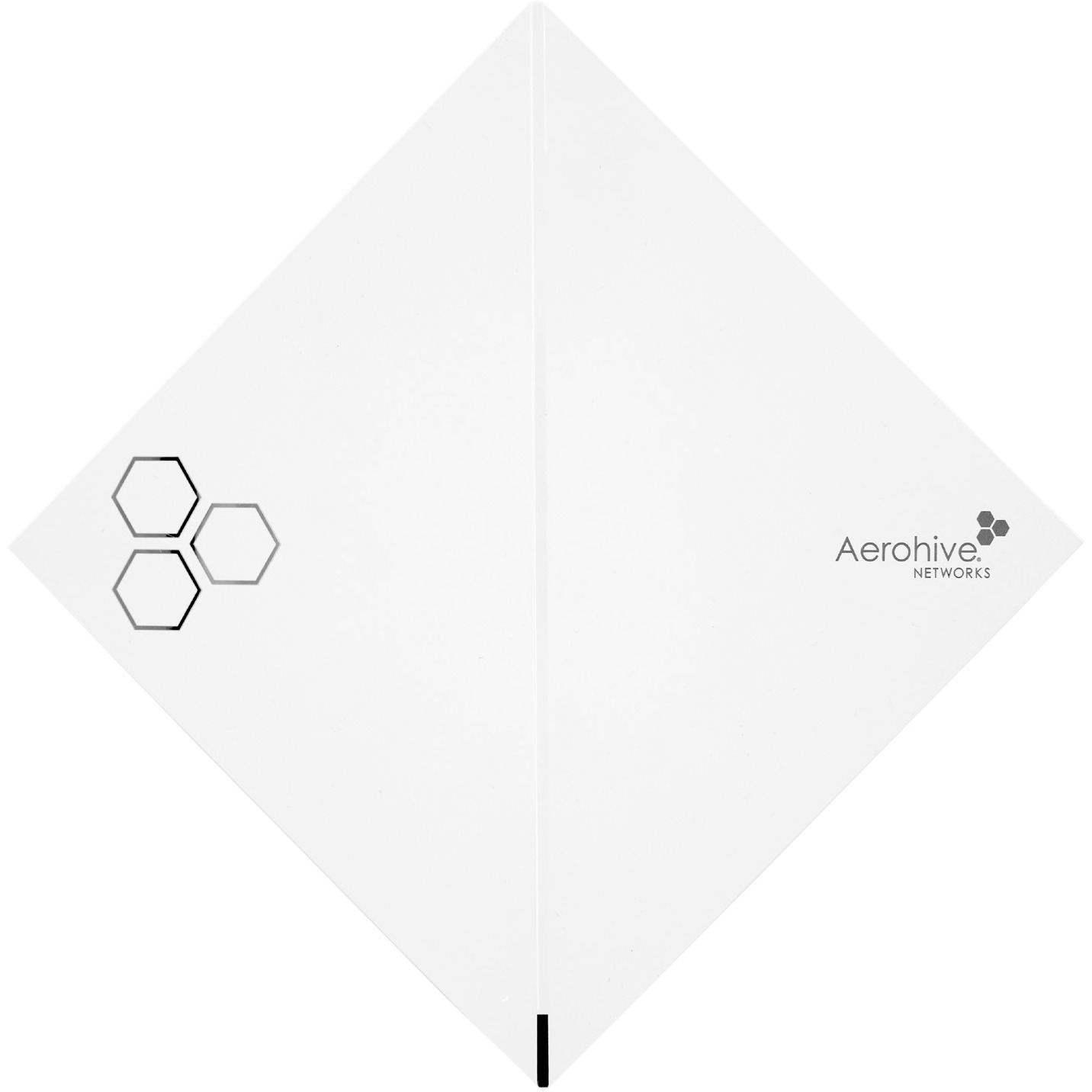

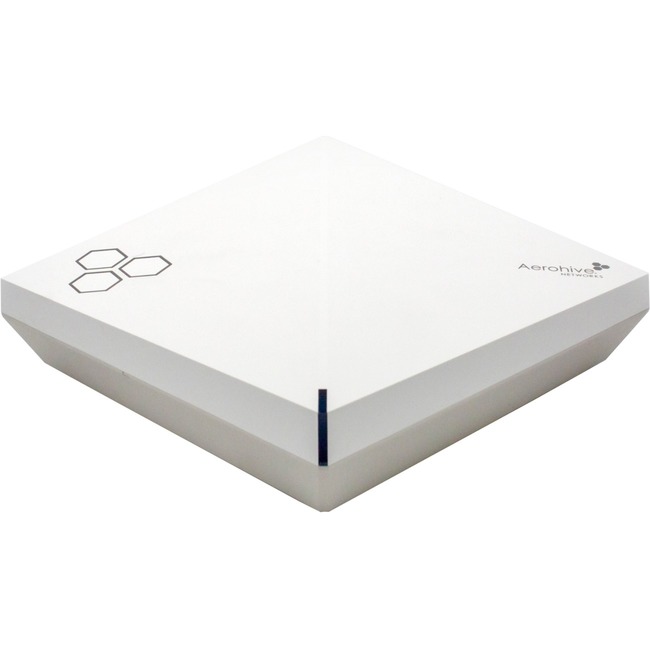

EXTREME AH-AP-550-AC-CE Aerohive AP550 - Wireless access point - Wi-Fi - Dual Band

Performance optimized indoor 802.11ac Wave 2 Dual-Radio 4x4:4 MIMO access point with internal antenna Today many bandwidth-hungry critical business applications are accessed over wireless networks. Wi-Fi infrastructures are expected to provide required speed and capacity, and user experience is measured beyond jitter and latency. Number and types of mobile devices that are connecting to Wi-Fi is exponential and large numbers of new devices that do not require human intervention are joining wireless networks every day. AP550 is engineered for these very demanding environments, featuring 802.11ac Wave 2 dual-radio, 4x4:4 MIMO with the software defined radio that allows IT managers to enable 802.11ac 5 Ghz performance on both radios. Built-in BLE (Bluetooth Low-Energy) radio enables indoor proximity and location tracking. AP550 is powerful enough to provide all the enterprise-grade features including built-in application visibility and control, RADIUS , DHCP, Captive Web Portal, WIPS, Location services and Spectrum analysis.

Key Benefits

• High performance with software selectable radio and RF-IQ antenna technology for instant adaptation to the capacity needs
• Managed from public or private cloud -based HiveManager management platform
• Integrated BLE ( BlueTooth Low-Energy) and USB interface for IoT readiness
• Application Visibility and Control functionality, including reporting, stateful firewall, and powerful Aerohive Quality of Service (QoS) on the access point
• Enterprise software features including RADIUS, DHCP server, location services and spectrum analysis are combined with hardware assisted security and zero-touch deployment

General Information
Manufacturer	Extreme Networks, Inc
Manufacturer Part Number	AH-AP-550-AC-CE
Manufacturer Website Address	http://www.extremenetworks.com
Brand Name	Aerohive
Product Model	AP550
Product Name	AP550 802.11ac Wave 2 Wireless Access Point
Product Type	Wireless Access Point
Technical Information
Wireless LAN Standard	IEEE 802.11ac
Frequency Band	5 GHz
Frequency Band	2.40 GHz
Total Number of Antennas	12
Number of Internal Antennas	12
Wireless Transmission Speed	3.46 Gbit/s
MIMO Technology	Yes
Interfaces/Ports
Ethernet Technology	Gigabit Ethernet
Number of Network (RJ-45) Ports	2
PoE PD Port	Yes
USB	Yes
Management Port	Yes
Physical Characteristics
Form Factor	Desktop
Form Factor	Ceiling Mountable
Form Factor	Wall Mountable
Height	2.2"
Width	8.2"
Depth	8.2"
Weight (Approximate)	2.40 lb
