ALLIED TELESIS

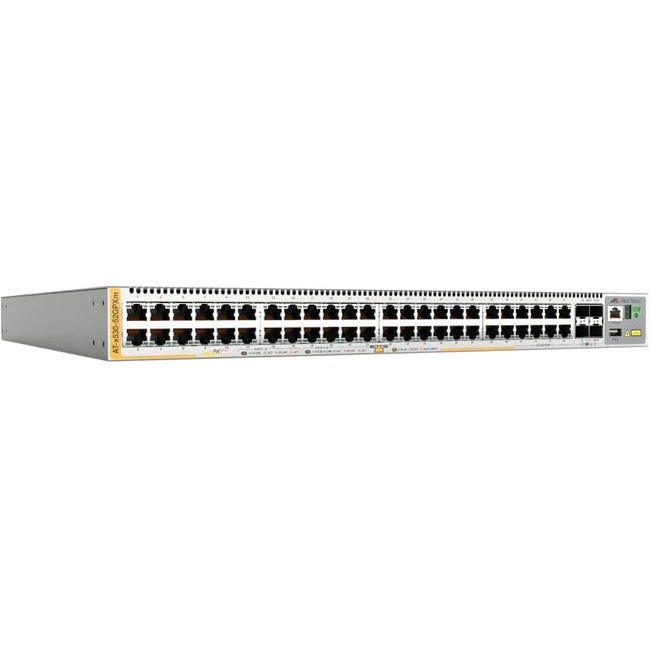

ALLIED TELESIS AT-X530-52GPXM-10 L3 STK SWCH 10/100/1000-T POE+ 8X100M
Mfg Part Number: AT-X530-52GPXM-10 , Item #: 3760002
Image may not reflect the actual item.
Price: $6,735.82
+ Free Shipping
Quantity:
More to Come
Last Updated: Aug 23, 2025
No Sales Tax except these states
, PO and Wire.
The x530-52GPXm stackable Gigabit layer 3 switch is high-performing and feature-rich, with 40 x 100M/1G and 8 x 100M/1G/2.5G/5G PoE+ ports, and 4 x 10G uplinks.
KEY FEATURES:
- AlliedWare Plus™ Enterprise-class operating system
- Support high-speed wireless, and network upgrades over legacy cabling, with 2.5G and 5G connectivity
- VCStack up to 8 units locally or over distance to support resilient networking
- Ethernet Protection Switched Ring (EPSRing™) and G.8032 ERPS supports high-speed resilient ring-based networks
- Power over Ethernet Plus (PoE+) supplies up to 30 Watts to connect and power endpoints such as PTZ security cameras, POS terminals, and wireless access points
- Continuous PoE ensures endpoint uptime, even during a switch firmware upgrade
Main Specification
| General Information | |
| Manufacturer | Allied Telesis, Inc |
| Manufacturer Part Number | AT-X530-52GPXM-10 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Brand Name | Allied Telesis |
| Product Series | x530 |
| Product Model | x530-52GPXm |
| Product Name | Stackable Multi-Gigabit Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 40 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 8 x 5 Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 5 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| Network Technology | 5GBase-T |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 88 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 16.6" |
| Weight (Approximate) | 15.21 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
