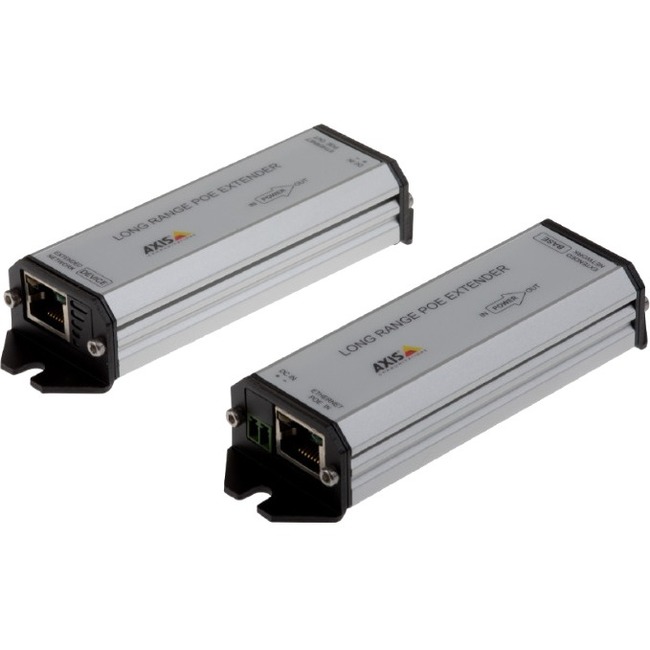

Axis 01857-001 LONG RANGE POE EXTD KIT

• Extends Ethernet and PoE connections up to 1000m (3280 ft)
• Supports IEEE 802.3af, IEEE 802.3at compliant devices
• NEMA TS2 Compatible
• Cost efficient solution

AXIS Long range PoE Extender kit offers a smart and easy-to-install solution for extending the range of your network and PoE. Without being restricted by the 100m (328ft.) limit for Ethernet cables, Axis network products can be installed at greater distances. Simply connect AXIS Long range PoE Extender kit in-line with the CAT5e or CAT6 cable and power and data are forwarded to your Axis network devices. AXIS Long range PoE Extender kit supports both IEEE 802.3af and IEEE 802.3at compliant devices. With its rugged design, AXIS Long range PoE Extender kit withstands harsh environmental conditions and challenging temperatures.

Going the distance

By using a single AXIS Long range PoE Extender kit, a connection can be achieved between 200-1000 meters (656-3280 ft.). The product automatically configures for link speed, duplex and crossover. Range depends on cable type used, the desired data rate and power required, find out more here. AXIS Long range PoE Extender kit can be powered from conventional IEEE 802.3af or IEEE 802.3at midspans and switches or AXIS T8003 PS57 for maximum range and power.

Cost efficient and easy to install

Save time and cost in installation. With AXIS Long range PoE Extender kit there is no need to lay expensive fiber optics, or allocate additional infrastructure and hardware in the middle, like media converters or switches. Plug and play, AXIS Long Range PoE Extender kit self-configures for the best performance. No set-up or configuration is needed. The diagnostic LEDs indicates power level of installation and if there are errors, improving quick diagnostics of the installation.

General Information
Manufacturer	Axis Communications
Manufacturer Part Number	01857001
Manufacturer Website Address	http://www.axis.com
Brand Name	AXIS
Product Name	Long Range PoE Extender Kit
Product Type	Network Extender
Technical Information
Maximum Extended Range	3280.84 ft
Maximum Data Transfer Rate	12.50 MB/s
Interfaces/Ports
Network (RJ-45)	Yes
Power Description
Input Voltage	57 V DC
Physical Characteristics
Product Material	Aluminum
Miscellaneous
TAA Compliant	Yes
NDAA Compliant	Yes
