TRANSITION
TRANSITION E-100BTX-FX-06(SMLC)-NA 100BASE-TX RJ45 TO 100BASE-FX SM LC
Mfg Part Number: E-100BTX-FX-06(SMLC)-NA , Item #: 3751388
Image may not reflect the actual item.
Price: $335.37
Quantity:
In Stock: 8
Last Updated: Dec 25, 2025
No Sales Tax except these states
, PO and Wire.

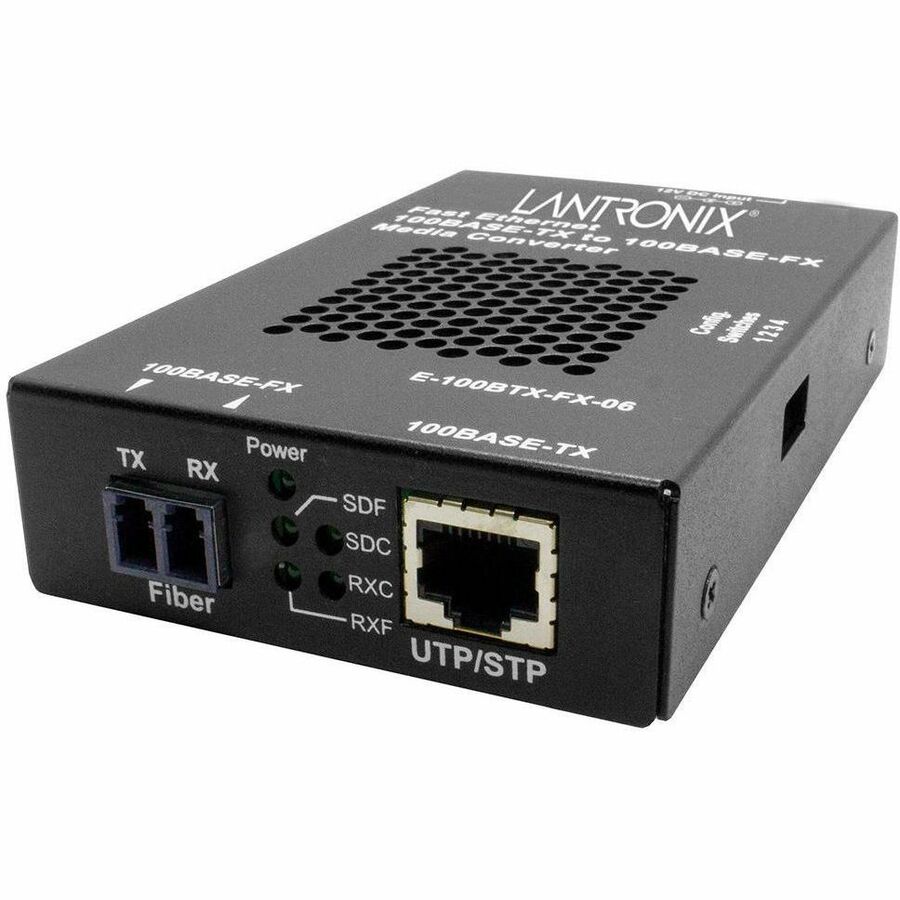

Stand-alone Fast Ethernet Media Converter
100Base-TX to 100Base-FX
The E-100BTX-FX-06 is a stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Main Specification
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | E100BTXFX06SMLCNA |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Lantronix |
| Product Series | E-100BTX |
| Product Model | E-100BTX-FX-06 |
| Product Name | E-100BTX-FX-06 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 20 km |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-FX |
| Network Technology | 100Base-TX |
| Power Description | |
| Power Source | AC/DC |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Power Consumption | 1.75 W |
| Physical Characteristics | |
| Form Factor | Shelf Mount |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Form Factor | Standalone |
| Form Factor | DIN Rail Mountable |
| Height | 1" |
| Width | 3" |
| Depth | 4.7" |
| Weight (Approximate) | 2 lb |
| Miscellaneous | |
| Package Contents | |
| Application/Usage | Data |
| Application/Usage | Network |
| Additional Information | 100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1310nm single mode (LC) [20 km/12.4 mi.] Link Budget: 17.3 dB |
| Certifications & Standards | Regulatory: FCC Class A, EN55024, EN55022 Class A, EN61000, CE Mark |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
