HONEYWELL
1300G-2USB-N HONEYWELL, HYPERION 1300G, USB KIT, SCANNER (1300G-2), 1D, BLACK, USB TYPE A 3M
Mfg Part Number: 1300G-2USB-N , Item #: 3748014
, PO and Wire.

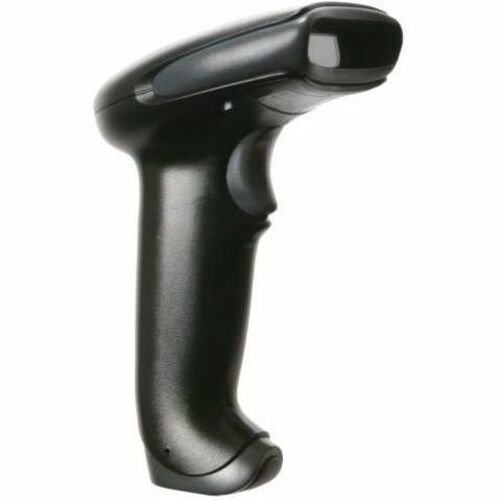

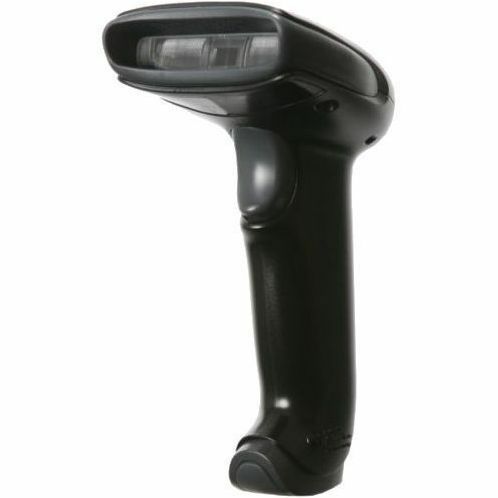

Linear-Imaging Scanner
Featuring an ideal balance of performance, durability and ergonomics, the Hyperion 1300g provides years of hassle-free scanning, especially in scan-intensive or light industrial applications.
The Hyperion 1300g delivers outstanding linear imaging performance and versatility. Fast intuitive bar code reading out to 18 inches (457mm), and high density bar code reading are both enabled in a single device, eliminating the need to purchase specialty scanners.
With no moving parts to wear out, the Hyperion 1300g is one of the toughest general duty scanners on the market. Designed to keep your operation running smoothly, the Hyperion 1300g is durable enough to hammer nails.
The Hyperion 1300g is the ideal choice for customers who value aggressive scan performance and durability in a general duty handheld linear scanner.
| General Information | |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 1300G2USBN |
| Manufacturer Website Address | http://www.honeywell.com |
| Brand Name | Honeywell |
| Product Line | Hyperion |
| Product Model | 1300g |
| Product Name | Hyperion 1300g Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | Reads standard 1D and GS1 DataBar™ symbologies |
| Image Sensor Type | Linear |
| Image Sensor Type | Imager |
| Scan Rate | 270 scan/s |
| Scan Pattern | Single Line |
| Scanner Range | Short Range |
| Scanning Distance | 25.98" |
| Features | Beep |
| Features | Notification LED |
| Cable Type Included | USB |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Motion Tolerance | 20 in/s |
| Maximum Ambient Light | 70000 lux |
| Drop Specification | Designed to withstand 50 drops on concrete from 1.5m |
| Minimum Print Contrast | 20% |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Input Current | 200 mA |
| Standby Current | 125 mA |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Height | 5.9" |
| Width | 3.1" |
| Depth | 4.4" |
| Weight (Approximate) | 5.64 oz |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP41 |
| Application/Usage | Industrial |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 5 Year |
