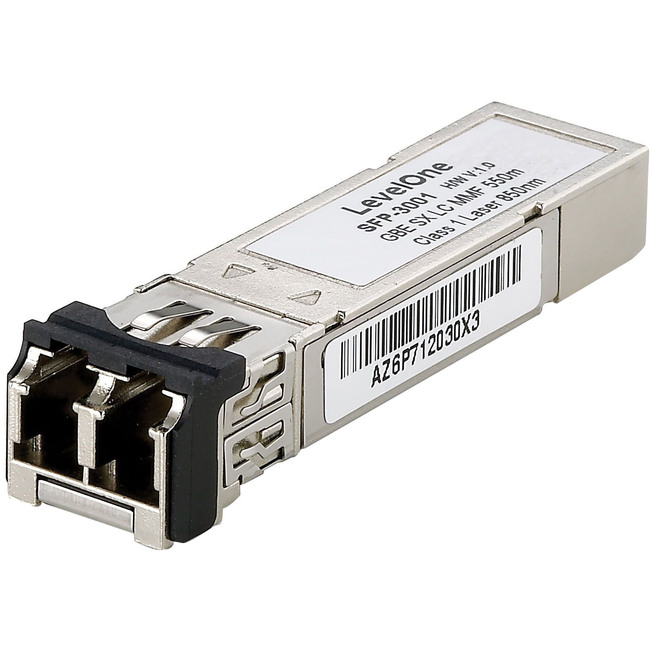

LevelOne SFP-3001 is a high performance and cost effective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 50 and 62.5 micron fiber cables, it can reach a distance of up to 550 meters.
General Information | |
Manufacturer | CP Technologies |
Manufacturer Part Number | SFP-3001 |
Manufacturer Website Address | http://www.cptechusa.com |
Brand Name | LevelOne |
Product Model | SFP-3001 |
Product Name | SFP-3001 1.25G SX/MM/Duplex LC Mini GBIC 550m |
Product Type | SFP (mini-GBIC) |
Technical Information | |
Application/Usage | Data Networking |
Interfaces/Ports | |
Total Number of Ports | 1 |
Connector Type | LC |
Interfaces/Ports Details | 1 x LC 1000Base-SX Network |
Media & Performance | |
Media Type Supported | Optical Fiber |
Fiber Optic Cable Standard | 50/125 µm, 62.5/125 µm |
Fiber Mode Supported | Multi-mode |
Ethernet Technology | Gigabit Ethernet |
Network Technology | 1000Base-SX |
Maximum Data Transfer Rate | 1.25 |
Physical Characteristics | |
Height | 0.3" |
Width | 0.6" |
Depth | 2.2" |
Miscellaneous | |
Compatibility |
|
Warranty | |
Limited Warranty | 1 Year |
