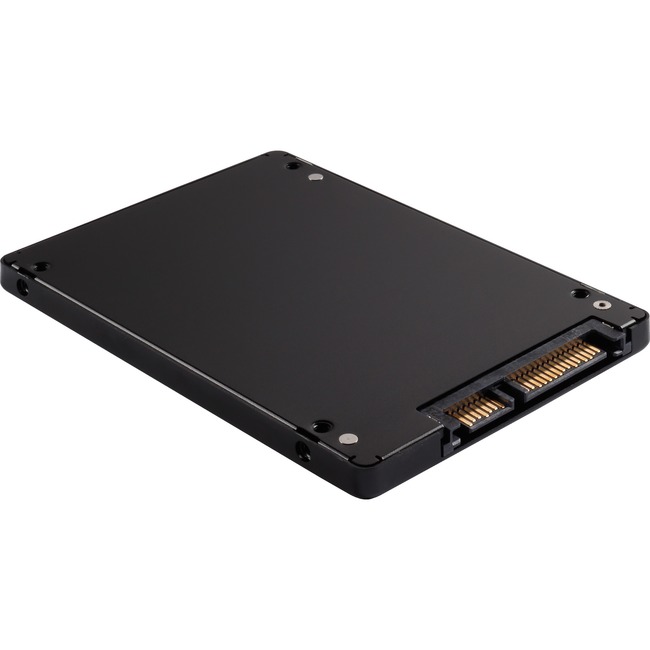

The VisionTek PRO ECS Series 2.5" 7mm SSD, out Enterprise line, is designed to bring ultra-fast, reliable storage to PC users. With the shift from the hard disk drive to the solid state drive our PRO ECS Series SSDs are a drop-in replacement option for a hard disk drive (HDD). It delivers superior reliability, durability, power efficiency and performance - keeps your system working reliably in the toughest of conditions.
Conforming to the industry standard SATA connector specification, these SSDs integrate easily into existing storage infrastructures. The VisionTek PRO ECS Series SSDs provide high bandwidth and IOPS while efficiently managing write amplification. Employing SSD technology in a system enables faster boot times, quicker application load times, lower power consumption, and enhanced reliability.
FEATURES
- Silicon Motion SM2258 controller
- SLC caching accelerates burst performance
- StaticDataRefresh technology ensures data integrity
- Intelligent garbage collection routines for advanced free space management
- TRIM command support (OS dependent)
- S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) support
- LDPC hard and soft decode
- Internal flash RAID-like parity scheme provides an additional layer of error correction
- SATA 3.1 Compliant SATA 6Gb/s - backwards compatible with SATA 3Gb/s and 1.5Gb/s
- ATA8-ACS3 command set compliant
- Industry-standard 512-byte sector support
- Temperature sensor
- Native Command Queuing (NCQ) support with 32 command queue depth
- Hot plug-capable
- RoHS-compliant package
- DRAM support - 16-bit wide interface
| General Information | |
| Manufacturer | VisionTek Products, LLC |
| Manufacturer Part Number | 901301 |
| Manufacturer Website Address | http://www.visiontek.com |
| Brand Name | VisionTek |
| Product Series | PRO ECS |
| Product Name | PRO ECS 7mm 2.5" SSD Series |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 2 TB |
| Drive Performance | |
| Maximum Read Transfer Rate | 560 MB/s |
| Maximum Write Transfer Rate | 520 MB/s |
| Network & Communication | |
| Wireless LAN | No |
| Interfaces/Ports | |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Hot Pluggable | Yes |
| Height | 0.3" |
| Miscellaneous | |
| Country of Origin | Mexico |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
