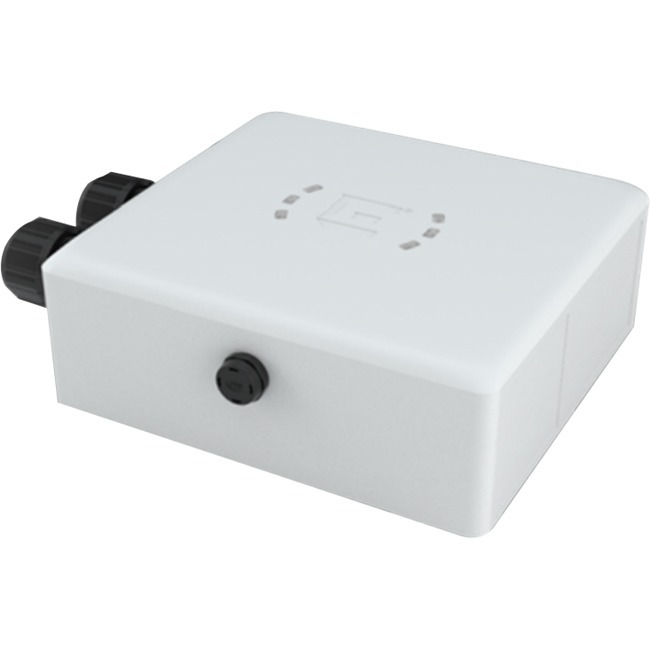

Wi-Fi 6 (802.11ax) Outdoor Access Point With Integrated Or External Antenna Options
The AP360 is designed for harsh environments; from hurricane force winds to sub-zero temperature, IP67 rated and designed to extend Extreme's Wi-Fi 6 outdoors. Integrated GPS and BLE allows for state of the art location applications for asset tracking.
The AP360 is based on new system-on-a-chip (SoC) with two built in dual band 2x2 radios providing the best value with Wi-Fi 6 high-efficiency. Priced for the mass market, this enterprise-grade access point is ideal for budget-conscious enterprises who do not want to sacrifice performance. While other vendors may reduce features and functionality, the AP360 retains all the capabilities of higher-end APs, including software-selectable- radios (SSR). 802.11ax data rates are available concurrently in both the 2.4 GHz and 5 GHz band. The AP360 also provides the flexibility to provide the same data rates simultaneously on two 5 GHz channels using dual-5 GHz SSR technology.
Despite the exponential growth of users, BYOD devices, IoT, high- Bandwidth applications and security threats straining the infrastructure, the AP360 combines performance, security services and insightful ML/AI management capabilities to deliver an enterprise class solution at a value price.
Security
The AP360 delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for context-based access security.
| General Information | |
| Manufacturer | Extreme Networks, Inc |
| Manufacturer Part Number | AP360i-FCC |
| Manufacturer Website Address | http://www.extremenetworks.com |
| Brand Name | Extreme Networks |
| Product Line | ExtremeWireless |
| Product Model | AP360i |
| Product Name | ExtremeWireless AP360i Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | 802.11ax |
| Network Band | Dual Band |
| Frequency Band | 5 GHz |
| Frequency Band | 2.40 GHz |
| Total Number of Antennas | 5 |
| Number of Internal Antennas | 5 |
| Indoor/Outdoor | Outdoor |
| Wireless Transmission Speed | 1.73 Gbit/s |
| MIMO Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3 |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
| USB | Yes |
| Power Description | |
| Power Consumption | 12.10 W |
| Physical Characteristics | |
| Form Factor | Pole-mountable |
| Antenna Form Factor | Internal |
| Height | 1.9" |
| Width | 7.4" |
| Depth | 5.7" |
| Weight (Approximate) | 2.20 lb |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
