PANORAMA ANTENNAS
PANORAMA ANTENNAS LG-IN2448-W PANORAMA 5G 9-1 DOME FOR CRADLEPOINT WHT
Mfg Part Number: LG-IN2448-W , Item #: 3718192
, PO and Wire.
The LG-IN2448 is a high performance 2x2 MiMo LTE, 6x6 MiMo Dual Band WiFi and GPS/GNSS active antenna covering 617-960/1710-6000MHz.
- Low profile antenna with 9 functions in 1
- 2x2 MiMo 4G/5G LTE cellular, 6x6 MiMo Dual Band WiFi and GPS/GNSS in one housing
- Kits with extension cables available for a range of LTE routers
- Suitable for Cradlepoint COR IBR900 Series Routers
The LG-IN2448 range has been designed to provide 2x2 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 6x6 MiMo WiFi 2.4/5.0GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.

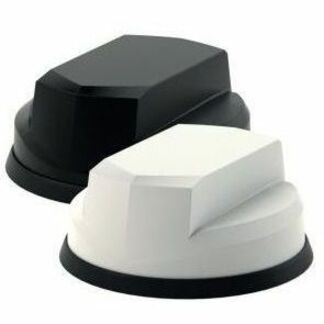

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
| General Information | |
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | LG-IN2448-W |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Brand Name | Panorama Antennas |
| Product Model | LG-IN2448 |
| Product Name | LG-IN2448 Antenna |
| Product Type | Antenna |
| Technical Information | |
| Directivity | Omni-directional |
| Operating Frequency Range | 617 MHz to 960 MHz |
| Operating Frequency Range | 4.9 GHz to 6 GHz |
| Operating Frequency Range | 2.4 GHz |
| Operating Frequency Range | 1710 MHz to 6000 MHz |
| Antenna Gain (Isotropic) | 9 dBi |
| Interfaces/Ports | |
| Connector Type | SMA |
| Physical Characteristics | |
| Product Color | White |
| Height | 3.15" |
| Diameter | 7.09" |
| Form Factor | Panel |
| Miscellaneous | |
| Application/Usage | Cellular Network |
| Application/Usage | Wireless Data Network |
| Application/Usage | GPS |
| Compatibility | Cradlepoint COR IBR900 Series Routers |
