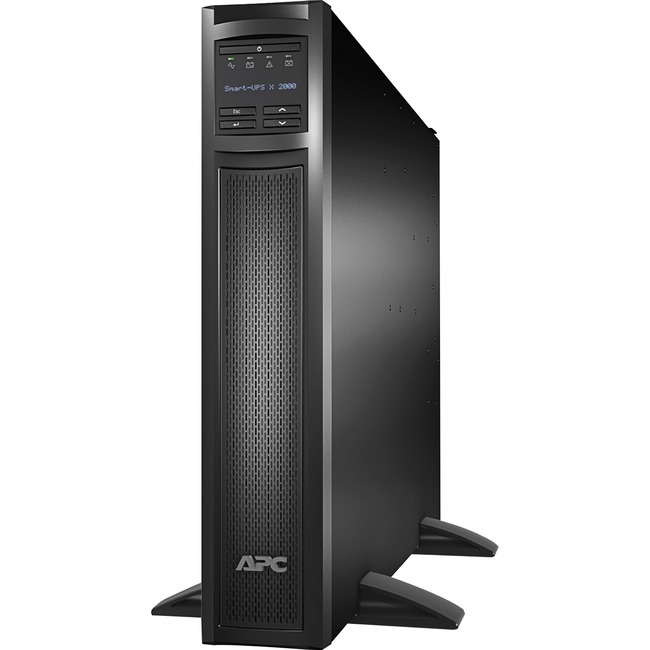

SMX2KR2UNCX145 APC SMART-UPS X 2000VA RACK/TOWER LCD 100-127V WITH NETWORK CARD & 10FT INPUT CO

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMX2KR2UNCX145
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Series	X
Product Name	Smart-UPS X 1920VA Rack/Tower UPS
Product Type	Line-interactive UPS
Technical Information
AVR	Yes
Plug/Connector Type	NEMA L5-20P
Receptacle Type	NEMA L5-20P
Receptacle Detail	3 x NEMA 5-15R
Receptacle Detail	3 x NEMA 5-20R
Receptacle Detail	1 x NEMA L5-20R
Number of Battery & Surge Outlets	7
Cord Length	10 ft
Transfer Time	4 ms
Application/Usage	Critical System
Application/Usage	Server
Application/Usage	Switch
Application/Usage	Router
Application/Usage	Network Device
Application/Usage	Business
Application/Usage	Communication System
Application/Usage	IT Equipment
Application/Usage	POS Terminal
Application/Usage	Network Hub
Application/Usage	Storage Device
Application/Usage	Security System
Power Description
Load Capacity (VA)	1920 VA
Load Capacity (Watt)	1800 W
Input Voltage	120 V
Input Voltage Range	70 V AC - 153 V AC
Output Voltage	120 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	540 J
Management
Network Management	USB
Alarm	Low Battery
Alarm	UPS Power Condition
Alarm	Configurable Delay
Alarm	Overload
Alarm	On Battery
Alarm	Changing Utility Power
Controls/Indicators
Status Indicators	LED Status Indicators: Unit Status Power Status On Line On Battery Replace Battery Overload
Interfaces/Ports
Serial Port	Yes
Network (RJ-45)	Yes
USB (HID Compliant) Port	Yes
Battery Information
Number of Batteries	1
Battery Characteristics	Maintenance-free, Sealed, Leak-proof
Battery Chemistry	Lead Acid
Battery Energy	2484 kJ
Backup/Run Time (Full Load)	10.90 Minute
Backup/Run Time (Half Load)	27.60 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes
Replaceable Battery	Yes
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	9842.52 ft
Maximum Storage Elevation	49212.60 ft
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	55 dB(A)
Thermal Dissipation	59.49 W
Physical Characteristics
Color Family	Black
Product Color	Black
Height	3.3"
Width	17"
Depth	26.3"
Rack Height	2U
Form Factor	Rack-mountable
Mounting Preference	Lower
Mounting Location	Front
Weight (Approximate)	84.77 lb
Miscellaneous
Package Contents	Smart-UPS X 1920VA Rack/Tower UPS CD with software Documentation CD Installation guide Network management card Rack mounting brackets Rack mounting hardware Rack mounting support rails Smart UPS signalling RS-232 cable USB cable
Certifications & Standards	BSMI|CSA|NOM|TÜV|VCCI Class A
Software Included	Powerchute® Business Edition Software
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX2KR2UNCX145_ROHS_DECLARATION&p_FileName=SMX2KR2UNCX145KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=490326959&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=490326959&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Battery Directive
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace (excluding battery) and 2 years for battery
Directly Connected Equipment Guarantee	$150000 Lifetime
