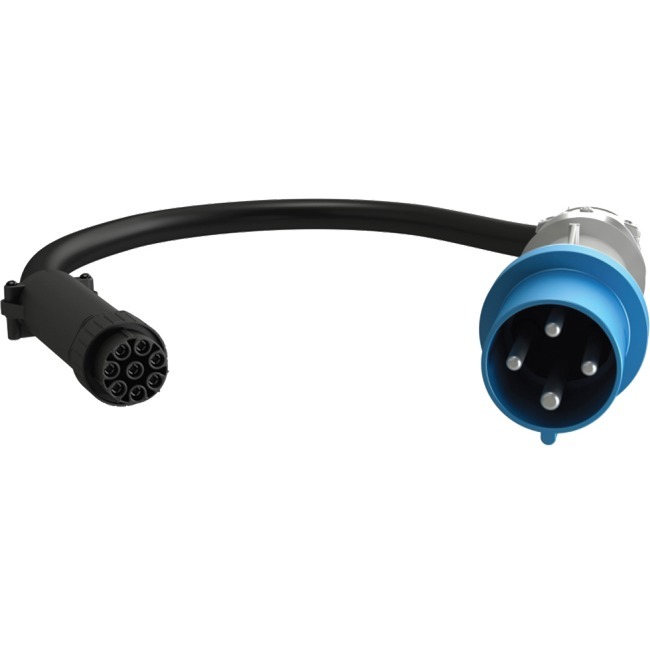

VERTIV FSC3N006 Geist CSN-S02A8-03000-6PS15D-S - Power cable - IEC 60309 3P+E - AC 208 V - 60 A - 10 ft
Mfg Part Number: FSC3N006 , Item #: 3714365
Image may not reflect the actual item.
Price: $509.99
+ Free Shipping
Quantity:
In Stock: 5
Last Updated: Jul 14, 2025
No Sales Tax except these states
, PO and Wire.
The Vertiv Geist Facility Side Cable (FSC3N006) is the detachable power cord used to define the input power configuration of the Vertiv Geist Universal Power Distribution Unit (Vertiv Geist UPDU). This 10-foot cord is equipped with a 3P+E (IP44) plug. It has a max power capacity of 17.2kW and has a power rating of 60A and 208V Delta.
Main Specification
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | FSC3N006 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Geist |
| Product Model | CSN-S02A8-03000-6PS15D-S |
| Product Name | CSN-S02A8-03000-6PS15D-S Standard Power Cord |
| Packaged Quantity | 1 |
| Product Type | Standard Power Cord |
| Technical Information | |
| First End Connector Type | IEC 60309 3P+E |
| First End Connector Detail | 1 x 4-pin IEC 60309 3P+E Male |
| Second End Connector Type | Universal Connector |
| Second End Connector Detail | 1 x 8-pin Universal Connector Female |
| Device Supported | PDU |
| Power Description | |
| Voltage Rating | 230 V AC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Current Rating | 60 A |
| Physical Characteristics | |
| Cord Length | 10 ft |
| Miscellaneous | |
| Additional Information |
|
| Compatibility | Vertiv Geist Universal Rack PDU (UPDU) |
| Certifications & Standards | UL & c-UL Listed 60950 |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
