VERTIV FSC3U001 Geist CSU-S02A3-43000-2PS56B-S - Power cable - IEC 60309 3P+N+E - AC 230/400 V - 20 A - 10 ft
Mfg Part Number: FSC3U001 , Item #: 3714240
Image may not reflect the actual item.
Price: $384.99
+ Free Shipping
Quantity:
More to Come
Last Updated: Jun 23, 2025
No Sales Tax except these states
, PO and Wire.

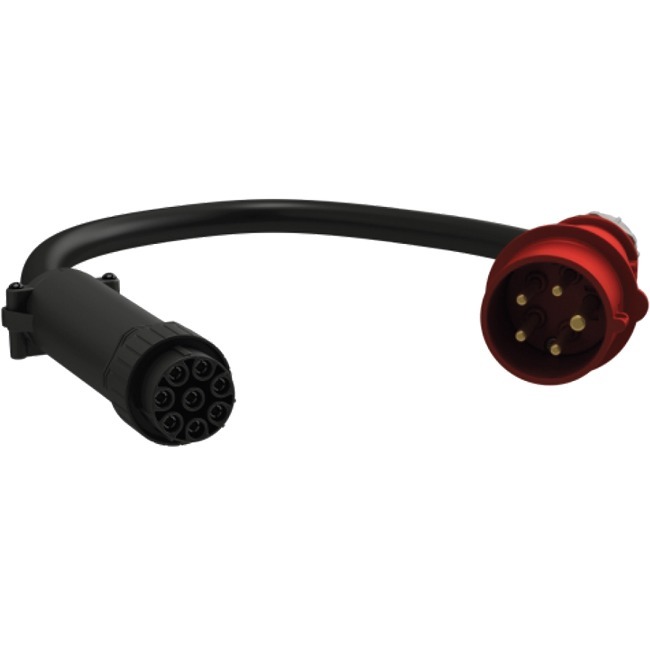

The Vertiv Geist Facility Side Cable (FSC3U001) is the detachable power cord used to define the input power configuration of the Vertiv Geist Universal Power Distribution Unit (Vertiv Geist UPDU). This 10-foot cord is equipped with a 3P+N+E plug. It has a max power capacity of 11kW and has a power rating of 16/20A and 230/400V WYE.
Main Specification
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | FSC3U001 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Geist |
| Product Model | CSU-S02A3-43000-2PS56B-S |
| Product Name | CSU-S02A3-43000-2PS56B-S Standard Power Cord |
| Packaged Quantity | 1 |
| Product Type | Standard Power Cord |
| Technical Information | |
| First End Connector Type | IEC 60309 3P+N+E |
| First End Connector Detail | 1 x 5-pin IEC 60309 3P+N+E Male |
| Second End Connector Type | Universal Connector |
| Second End Connector Detail | 1 x 8-pin Universal Connector Female |
| Device Supported | PDU |
| Power Description | |
| Voltage Rating | 415 V AC |
| Voltage Rating | 230 V AC |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Current Rating | 16 A |
| Current Rating | 20 A |
| Physical Characteristics | |
| Cord Length | 10 ft |
| Miscellaneous | |
| Additional Information |
|
| Compatibility | Vertiv Geist Universal Rack PDU (UPDU) |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
