Conserve valuable PCI Express (PCIe) server slots while adding multi-port Gigabit Ethernet capability with the Intel PRO/1000 PT Dual Port Server Adapter. The dedicated input/output (I/O) bandwidth of PCIe ensures priority performance on each port-without bus sharing-for Gigabit Ethernet connectivity in Category-5 networks. Additionally, the Intel PRO/1000 PT Dual Port Server Adapter is designed to provide high performance in multi-processor systems by efficiently balancing network loads across multiple Central Processing Units (CPUs) when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux

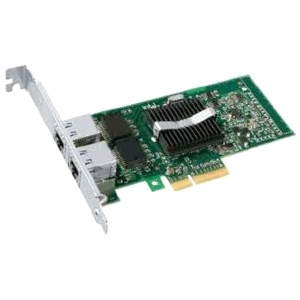

Intel PRO/1000 PT Dual Port Server Adapter - It just works!
| General Information | |
| Manufacturer | Intel Corporation |
| Manufacturer Part Number | EXPI9402PTBLK |
| Manufacturer Website Address | http://www.intel.com |
| Brand Name | Intel |
| Product Line | PRO/1000 |
| Product Series | 82571 |
| Product Name | PRO/1000 PT Dual Port Server Adapter |
| Packaged Quantity | 5 |
| Package Type | Retail |
| Product Type | Gigabit Ethernet Card |
| Interfaces/Ports | |
| Host Interface | PCI Express x4 |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 5 |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Physical Characteristics | |
| Card Height | Full-height |
| Form Factor | Plug-in Card |
| Height | 4.8" |
| Width | 5.1" |
| Thickness | 850 mil |
| Weight (Approximate) | 1 lb |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | Malaysia |
| Warranty | |
| Limited Warranty | Lifetime |
| Additional Warranty Information | Intel warrants to the original owner that the adapter product delivered in this package will be free from defects in material and workmanship. This warranty does not cover the adapter product if it is damaged in the process of being installed or improperly used. For more warranty information follow this link: http://www.intel.com/support/network/sb/cs-009721.htm |
| General Information | |
| Product | Ethernet Server Adapters |
| Number of Ports | 2 Ethernet |
| Processor Type | 82571GB |
| Data Rate | 10 Mb/s, 100 Mb/s, 1000 Mb/s |
| Interface Type | Ethernet, PCIe v1.0a |
| Operating Supply Voltage | 3.3 V |
| Maximum Operating Temperature | + 55 C |
- Mfr Part Number: EXPI9402PTBLK
- Features:
- Load balancing on multiple CPUs
- Interrupt moderation
- Compatible with x4, x8, and x16 full-height PCI Express slots
- Support for most network operating systems (NOS)
- RoHS compliant, lead-free technology
- Intel PROSet Utility for Microsoft Device Manager
- Advanced cable diagnostics
- Hardware
- Connectors: 2x RJ-45
- Data rate(s) supported per port: 10, 100, and 1000 Mbps
- Bus type: PCI Express 1.0a
- Bus width: x4 lane PCI Express, operable in x4, x8, x16 slots
- Bus speed (x4, encoded rate): 10 Gbps uni-directional; 20 Gbps bi-directional
- EEPROM-SPI and single EEPROM support: Yes
- Interrupt levels: INTA
- IEEE support: 802.3ab
- Controller-processor: Intel 82571EB
- LEDs: 4 (1/port, link and speed) solid and blinking
- Wiring: Category-5, unshielded twisted pair (UTP), 4-pair
- Network Management:
- Wired for Management (WfM) baseline v2.0 enabled for servers: Yes
- DMI 2.0 support, Windows Management Instrumentation (WMI) and SNMP-manageable SMBus support: Yes
- Remote Installation Services (RIS): Yes
- Diagnostics (loopback, testability, PHY register access): Yes
- Advanced configuration and power interface (ACPI) 1.0 power management: Yes
- Wake on LAN support over PCI Express: Yes
- PXE 2.0 enabled through boot read-only memory (ROM): Yes
- Network Operating Systems (NOS) Software Support:
- Microsoft Windows Server 2003, Enterprise, Datacenter (32- and 64-bit)
- Microsoft Windows 2000
- Red Hat Linux 2.4x or later (32- and 64-bit)
- FreeBSD 4.x or later
- Novell Netware 5.x, 6.x
- Sun Solaris x86, OS 8 and later
- SCO Open Server 5, OpenUNIX 8
- Advanced Software Features:
- Adapter fault tolerance (AFT): Yes
- Switch fault tolerance (SFT): Yes
- Adaptive load balancing (ALB): Yes
- Fast EtherChannel (FEC): Yes
- Gigabit EtherChannel (GEC): Yes
- Teaming support: Scales upto 8 connections
- Multiple teams: Supports 4 separate teams, maximum
- IEEE 802.3ad (link aggregation control protocol): Yes
- Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)
- PCIe Hot Plug/Active peripheral component interconnect (PCI): Yes
- IEEE 802.1Q VLANs: Yes
- IEEE 802.3 (z, ab, u, x) flow control support: Yes
- TCP checksum offload - transmission control protocol (TCP), user datagram protocol (UDP), Internet protocol (IP): Yes
- IEEE 802.1p: Yes
- TCP segmentation/large send offload: Yes
- Interrupt moderation: Yes
- Certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
- Dimension (WxLxH): 0.85 x 5.1 x 4.725 inch / 2.16 x 12.95 x 12.0 cm
