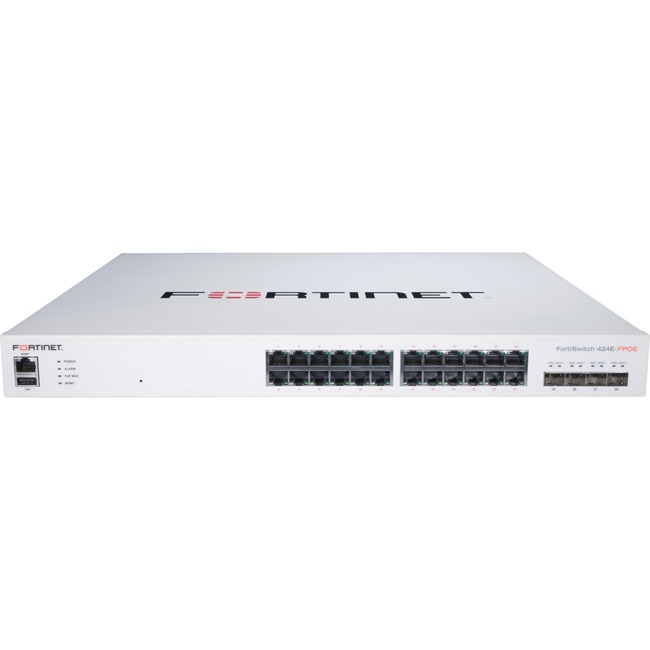

FORTINET FS-424E-FPOE LAYER 2/3 FORTIGATE SWITCH CTLR COMPATIBLE POE+ SWITCH W/24XGE RJ45

The FortiSwitch Secure Access Family delivers outstanding security, performance, and manageability. Secure, Simple, and Scalable, FortiSwitch is the right choice for threat conscious businesses of all sizes. Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.

Security Fabric Integration through FortiLink

FortiLink is an innovative proprietary management protocol that allows our FortiGate Next-Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.

General Information
Manufacturer	Fortinet, Inc
Manufacturer Part Number	FS424EFPOE
Manufacturer Website Address	http://www.fortinet.com
Brand Name	Fortinet
Product Line	FortiSwitch
Product Series	400
Product Model	FS-424E-FPOE
Product Name	FS-424E-FPOE Layer 3 Switch
Product Type	Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports	24
Modular	Yes
Stack Port	Yes
Port/Expansion Slot Details	4 x 10 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details	24 x Gigabit Ethernet PoE
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Ethernet Technology	10 Gigabit Ethernet
Network Technology	10GBase-X
Network Technology	10/100/1000Base-T
I/O Expansions
Total Number of Expansion Slots	4
Expansion Slot Type	SFP+
Number of SFP+ Slots	4
Network & Communication
Layer Supported	3
Management & Protocols
Manageable	Yes
Power Description
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Power Consumption	433.70 W
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.8"
Width	17.3"
Depth	10.1"
Weight (Approximate)	12.72 lb
Miscellaneous
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
Warranty
Limited Warranty	Lifetime
