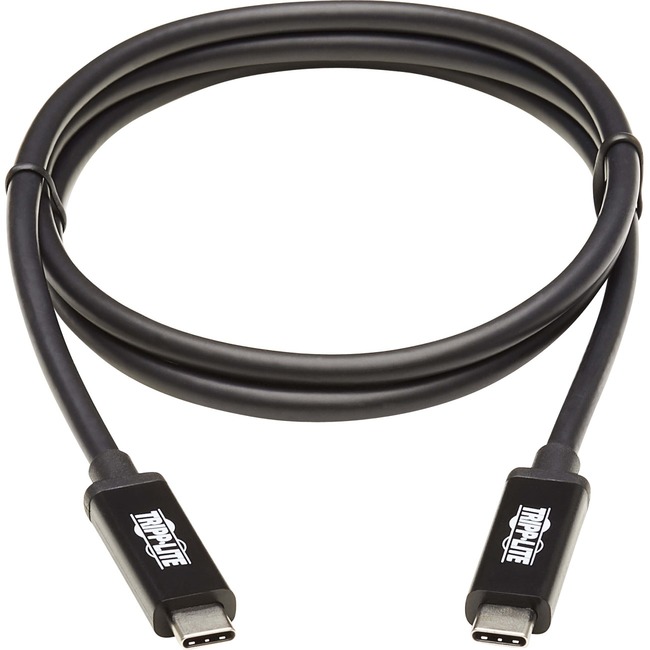

This Thunderbolt 3 cable allows you to connect one Thunderbolt 3-enabled device to another, including MacBooks, Ultrabooks, Chromebooks, external hard drives and docking stations. It transmits full 4K x 2K (3840 x 2160 at 60 Hz) DisplayPort video when used with Thunderbolt 3-enabled monitors. The cable's one-meter length makes it easy to carry in your briefcase or laptop bag for quick video connections and file transfers on the go.
Charges Devices and Transfers Data 4 Times Faster Than USB 3.1 Gen 2
The MTB3-01M-5A-AB supports bidirectional Thunderbolt 3 data transfer speeds up to a sizzling 40 Gbps, which is four times as fast as USB 3.1 Gen 2, making it an ideal cable for downloading 4K video files and transmitting them to a 4K monitor or television with a Thunderbolt 3-enabled input. Transceivers in each connector regulate the transfer of data throughout the entire length of the active cable. The PD Charging 2.0 cable also provides power output up to 5 amps (100 watts), which is sufficient for fast-charging, syncing and powering most large-capacity devices.
Reversible Thunderbolt 3 Connectors Attach in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible Thunderbolt 3 male connectors plug into a Thunderbolt 3 or USB-C port in either direction for a fumble-free connection every time. Note: both ends must be connected to a Thunderbolt 3 port to achieve 40 Gbps transfer speeds.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | MTB3-01M-5A-AB |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite by Eaton |
| Product Model | MTB3-01M-5A-AB |
| Product Name | Thunderbolt 3 Cable, M/M, 1 m, Black |
| Product Type | Video/Data Transfer Cable |
| Technical Information | |
| Cable Type | Thunderbolt 3 |
| Cable Length | 3.28 ft |
| Connector Type on First End | USB 3.1 (Gen 2) Type C Thunderbolt 3 - Male |
| Connector on First End Details | 1 x USB 3.1 (Gen 2) Type C Thunderbolt 3 - Male |
| Connector Type on Second End | USB 3.1 (Gen 2) Type C Thunderbolt 3 - Male |
| Connector on Second End Details | 1 x USB 3.1 (Gen 2) Type C Thunderbolt 3 - Male |
| Connector Plating | Nickel |
| Device Supported | TV |
| Device Supported | External GPU |
| Device Supported | Notebook |
| Device Supported | External Hard Drive |
| Device Supported | Hub |
| Device Supported | Monitor |
| Device Supported | Ultrabook |
| Device Supported | Mobile Device |
| Device Supported | Video Device |
| Device Supported | Docking Station |
| Device Supported | Chromebook |
| Device Supported | MacBook |
| Data Transfer Rate | 40 Gbit/s |
| Supported Resolution | 3840 x 2160 |
| Features | Charging |
| Features | Active |
| Features | USB- Power Delivery (USB PD) |
| Features | Plug & Play |
| Features | Reversible |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Shipping Height | 7.09" |
| Shipping Width | 4.33" |
| Shipping Weight (Approximate) | 2.01 oz |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
