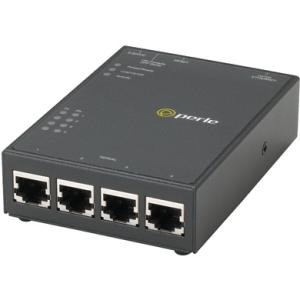

PERLE 04030834 IOLAN STS4 D 4PT RS232 RJ45 DESK/WALL 10/100 ETH

Engineers and Project Managers that require a cost effective 4 or 8 port serial RS232-to-Ethernet solution that maintains serial device protocol integrity across Ethernet must consider the IOLAN STS-D. Having the highest performance processor available along with the Perle's unique TrueSerialTM technology, the IOLAN STS-D will provide the most authentic serial connections across Ethernet. IOLAN STS4-D Serial Terminal Servers are also available with support for Power over Ethernet (PoE).

Ideal for

• Engineers and Project Managers requiring a high performance serial to Ethernet interface for up to 4 serial RS232 based devices. Connect to serial based applications over Ethernet
• Compact size offers the smallest 4 or 8 port serial to Ethernet solution on the market

General Information
Manufacturer	Perle Systems, Inc
Manufacturer Part Number	04030834
Manufacturer Website Address	http://www.perle.com
Brand Name	Perle
Product Line	IOLAN
Product Series	STS
Product Model	STS4 D
Product Name	IOLAN STS-D Terminal Server
Product Type	Device Server
Memory
Standard Memory	32 MB
Media & Performance
Media Type Supported	Twisted Pair
Network & Communication
Ethernet Technology	Fast Ethernet
Network Standard	10/100Base-TX
Interfaces/Ports
Phone Line (RJ-11)	No
Network (RJ-11)	No
USB	No
Serial Port	Yes
Parallel Port	No
Centronics Port	No
Number of Serial Ports	4
Power Description
Input Voltage	30 V DC
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	Wall Mountable
Form Factor	Rail-mountable
Form Factor	Desktop
Height	1.1"
Width	4.4"
Depth	3.2"
Weight (Approximate)	12.70 oz
Miscellaneous
Package Contents	IOLAN STS-D Terminal Server CD Quick Start Guide RJ-45 TO DB9M Adapter
Certifications & Standards	FCC Part 15A, CE, CAN/CSA 22.2, UL 60950, EN 55022 Class A, EN 55024 Class A
Country of Origin	Canada
Warranty
Limited Warranty	Lifetime
Additional Warranty Information	The Perle IOLAN STS4-D is backed by the best service and support in the industry including Perle's unique lifetime warranty. Since 1976 Perle has been providing its customers with networking products that have the highest levels of performance, flexibility and quality.

Mechanical
Dimensions: WxHxD (mm)	255 x 165 x 26
Mounting	Din Rail Mount; Wall Mount
Enclosure	Metal
Interface
Serial interface	RS232
Serial interface number of ports	4
Serial Interface type of connector	RJ45
Network interface	1 Port Ethernet RJ45 Connector
Network interface number of ports	1
Network interface type of connector	RJ45
Power
Power Input Type	-
Operating Supply Voltage	9 to 30 VDC
Power Consumption	1W
Reliability
Operating Temperature	0 to 55C
Isolation Protection	-
Surge Protection	-
Standards and Certifications	Safety UL 60950-1, EN 60950-1, EMC CE, FCC, EMI EN 55022 Class A, FCC Part 15 Subpart B Class A, EMS EN 55024

For serial to Ethernet connectivity applications, the IOLAN STS4-D is the most advanced device server available. Delivering high performance in a compact size, an IOLAN STS4-D offers extensive security, flexibility and next generation IP technology making it ideal for applications that require remote device/console management, data capture or monitoring.

Product Type:	Terminal Server
Flow Control:	Hardware Flow Control
Functions:	The IOLAN STS4-D is ideal for connecting serial based COM port, UDP or TCP socket based applications to remote devices. Perle's TruePort V5 re-director provides fixed TTY or COM ports to serial based applications enabling communication with remote devices connected to Perle device servers either in encrypted or clear text modes. You can also tunnel serial data between devices across an IP network.
Interfaces/Ports:	4 x RJ-45
Management:	Web browser or secure web browser via https(SSL/TLS ), Perle DeviceManager software to managesingle or multiple device servers,CLI -Telnet, SSH, shared console portSNMP, MIB II, Perle MIB, read and writeCapabilities,SYSLOG,Port Buffering-local or 3DES encrypted toNFS server
Protocols:	TCP/IP ARP RARP UDP ICMP BootP DHCP TFTP Telnet Reverse Telnet DNS HTTP WINS PPP HTTPS SSH CSLIP LPD CIDR SSH v2 SMTP PAP/CHAP
Security Features:	SSHV1 and SSHV2,SSL V3.0/TLS V1.0, SSL V2.0,SSL Server and SSL client mode capability,Encryption: AES (256/192/128), 3DES,DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2),Hashing Algorithms: MD5, SHA-1,RIPEMD160, SHA1-96, and MD5-96,Key exchange: RSA, EDH-RSA, EDH-DSS, ADH X.509Certificate verification: RSA, DSACertificate authority (CA) list, Local database,RADIUS Authentication and Accounting,TACACS+, LDAP, NIS, Kerberos, RSA SecureID-agent or via RADIUSIP Address filtering,Disable unused daemons
Processor:	MPC852T Motorola 66MHz
Standard Memory:	32MB RAM
Maximum Memory:	8MB Flash Memory
Status Indicators:	Power/ReadyLink status/Lan SpeedNetwork Link activitySerial : Tx and Rx data
Input Voltage:	9 V DC to 30 V DC
Temperature:	32 °F (0.0 °C) Up to 131 °F (55.0 °C)
Package Contents:	CD,Quick Start Guide, RJ-45 TO DB9M Adapter,
Certifications & Standards:	FCC Part 15A, CE, CAN/CSA 22.2, UL60950, EN 55022 Class A, EN 55024 Class A
Color:	Black
Dimensions:	1.1" Height x 3.2" Width x 4.4" Depth
Shipping Dimensions :	2.3" Height x 6.75" Width x 10.0" Depth
Standard Warranty:	Lifetime
Additional Warranty Information:	The Perle IOLAN STS4-D is backed by the best service and support in the industryincluding Perle's unique lifetime warranty. Since 1976 Perle has been providing itscustomers with networking products that have the highest levels of performance,flexibility and quality.
